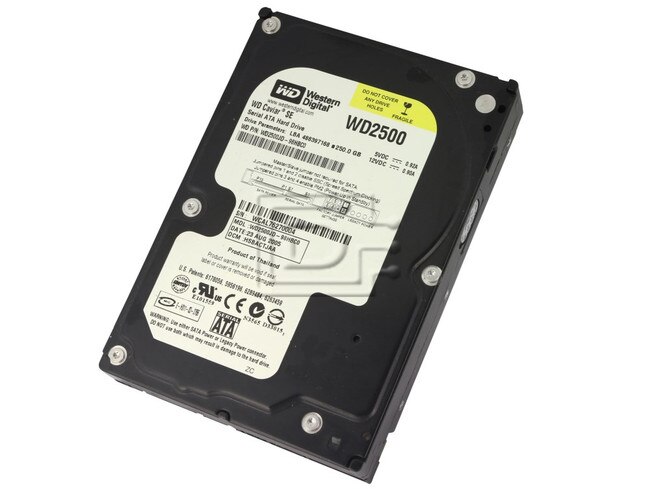

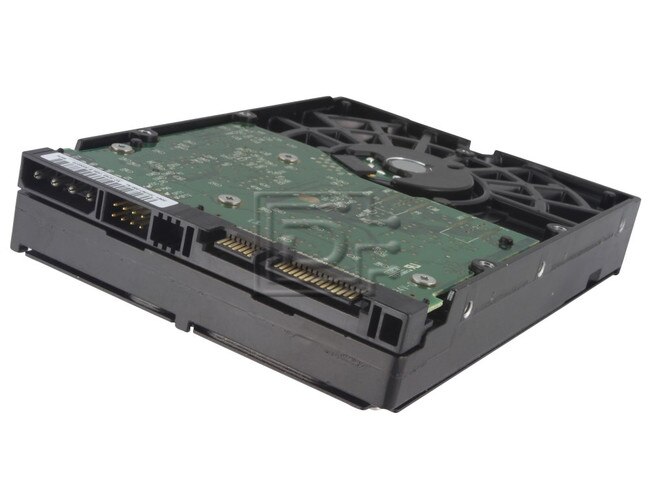

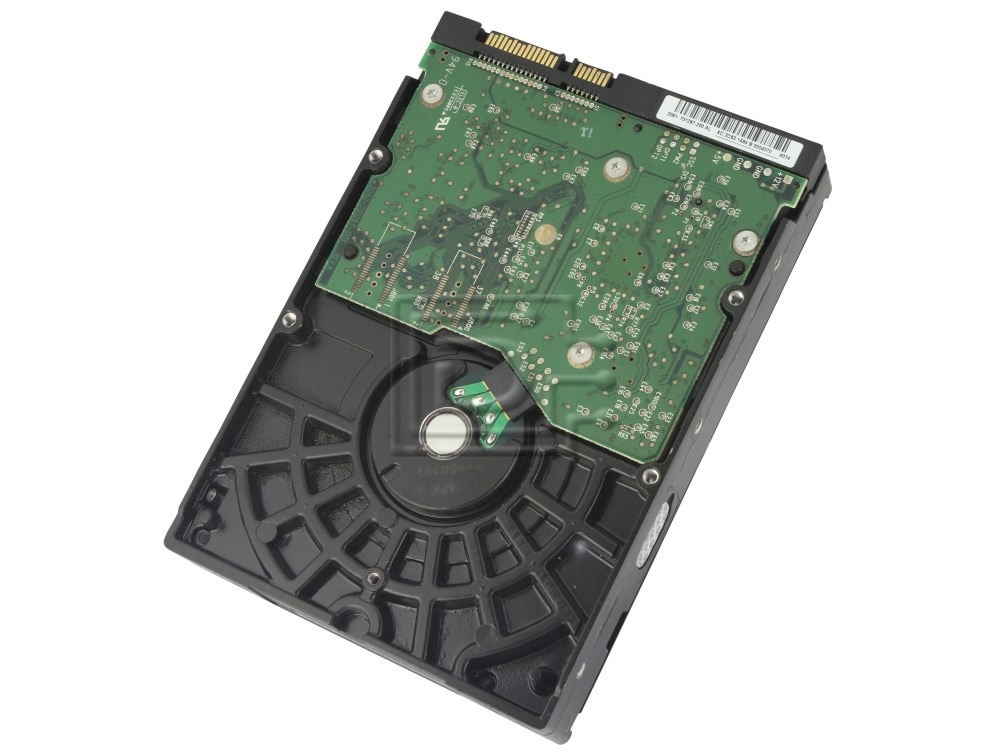

Western Digital Special Edition SATA Hard Drive WD2500JD

Western Digital Part #/MPN: WD2500JD

DiscTech Item #: WDC-WD2500JD-RF-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Capacity: 250GB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 8.9 / 10.9

Electrical Interface: SATA 150 - 1.50Gbps

On-Board Cache: 8MB

Western Digital Caviar 250GB, 7.2K, 8mb cache, Special Edition SATA Hard Drive WD2500JD - Refurbished

Western Digital Caviar 250GB 7.2K Special Edition SATA Hard Drive WD2500JD - Refurbished

Physical Specifications
Formatted Capacity 1250,059 MB
Interface1.5 Gb/s Interface
(Serial ATA 1.0)
Bytes Per Sector (STD)512
User Sectors Per Drive488,397,168
Dedicated Landing ZoneYes
Actuator Latch/Auto ParkYes
Performance Specifications
Data Transfer Rate
- Buffer to Host
- Buffer to Disk

150 MB/s 2
748 Mbits/s max
Average Read Seek8.9 ms (average)
Track-to-Track Seek 32.0 ms (average)
Full Stroke Read Seek 321 ms (average)
Average Latency4.2 ms
Rotational Speed7200 RPM
Read CacheAdaptive
Write CacheYes
Buffer8 MB
Drive Ready Time9.0 sec (average)
Start/Stop Cycles50,000 minimum
LBA SupportYes
Error Rate
<1 in 1014 bits read
Physical Dimensions
HeightEnglish:1.028 inches max
 Metric:25.4 mm max
LengthEnglish:5.787 inches max
 Metric:147.0 mm max
WidthEnglish:4.00 inches ±0.010 inch
 Metric:101.6 mm ±0.25 mm
WeightEnglish:1.32 pounds ±0.13 pounds
 Metric:0.60 kg ±0.06 kg

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
