Western Digital Part #/MPN: WUH721414ALE604
DiscTech Item #: WDC-WUH721414ALE604-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 14TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 262 / 250
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 512MB

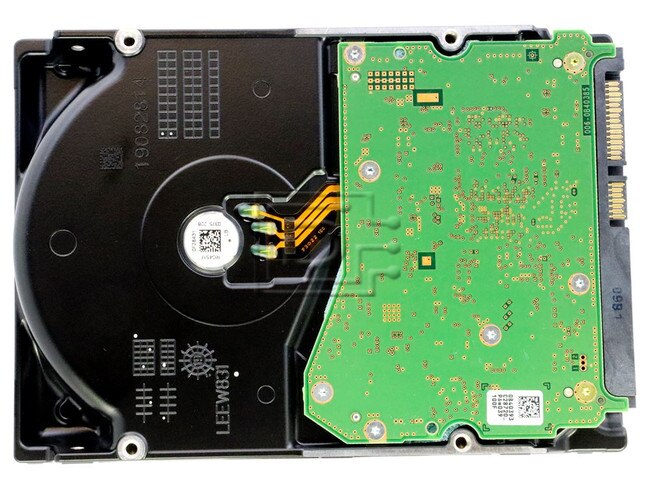

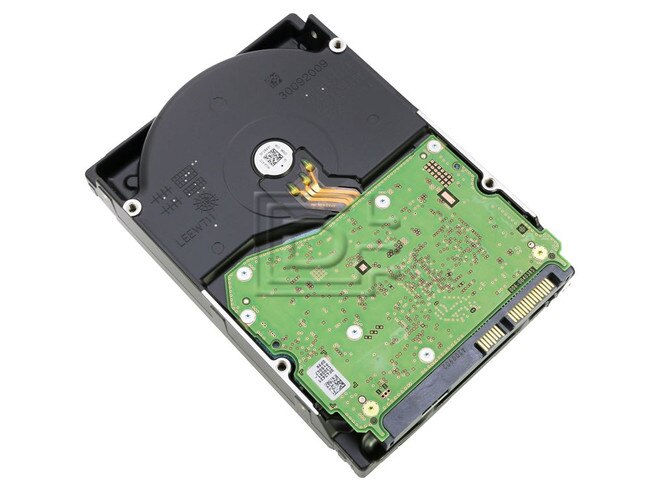

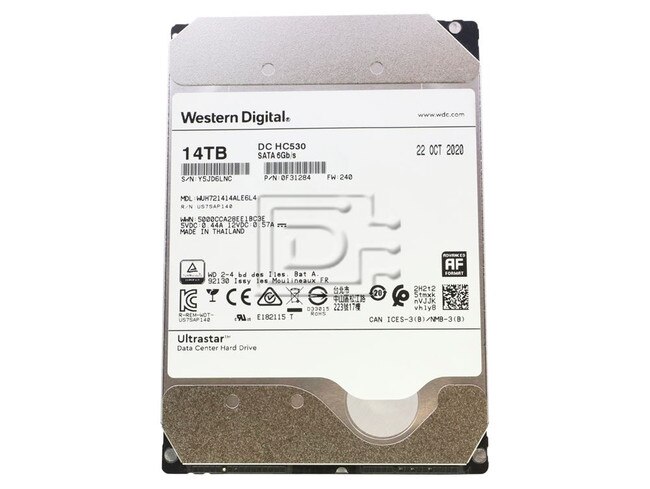

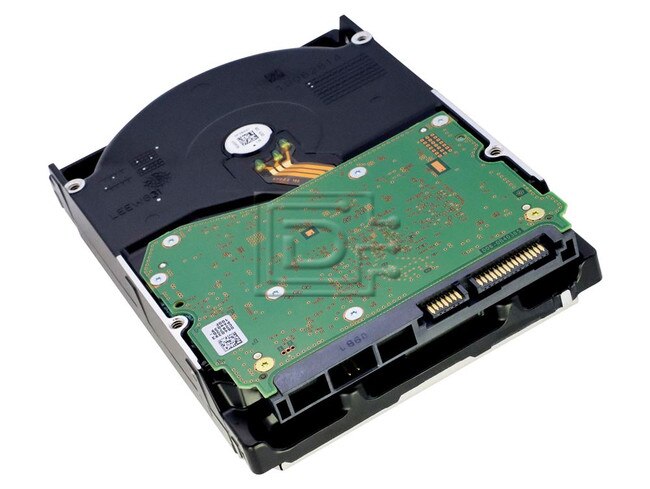

Western Digital UltraStar DC HC530 WUH721414ALE604 / 0F31156 / 0F31152 / 0F31284 14TB 3.5" 7.2K 6Gbps 512e SATA HDD Hard Drive- New Pull
Western Digital UltraStar DC HC530 WUH721414ALE604 / 0F31156 / 0F31152 / 0F31284 14TB 3.5" LFF / Large Form Factor 7200 RPM 6Gb/s 512e SATA / Serial ATA HDD / Hard Disk Drive - New Pull
Power-disable feature enables host power control, sata-to-sata power adapter cable included for legacy systems
Total Cost of Ownership (TCO) Drives the Data Center Architecture
Data center decisions are driven by TCO. Higher capacity hard drives play a leading role in reducing TCO. A 14TB data center HDD provides more capacity in the same form factor as a 12TB HDD. Higher capacity HDDs enable data centers to lower CapEx by reducing supporting hardware and system level costs when compared to lower capacity drives. Helium-sealed, low power, high reliability drives reduce energy and maintenance costs, contributing to OpEx savings.
Raising the Capacity Bar with New Technologies
Ultrastar DC HC550 integrates a suite of technologies on a 9-disk platform to create a new class of HDDs. 14TB capacity is achieved by combining technologies that improve areal density working together with technologies that improve performance and reduce power consumption.
• The first HDD in the industry to harness Energy-Assisted Magnetic Recording (EAMR) technology improves writability and therefore increases areal density.
• The industry’s first Triple Stage Actuator (TSA) enhances head-positioning accuracy, delivering better performance and increased areal density.
• HelioSeal® technology is the foundation for Western Digital’s high capacity HDDs and this is the 6th generation of Hel
Trusted Reliability and Quality for Data at Scale
With its massive capacity and 2.5M MTBF (projected) reliability rating, the Ultrastar DC HC550 is ideal for object storage implementations. Object storage systems with erasure coding provide better data durability compared to RAID systems, given their tolerance for simultaneous error conditions. The DC HC550 offers security and encryption options to help protect data from unauthorized use, including SED models in both SATA & SAS. Trust Western Digital and the Ultrastar DC HC550 hard drive to deliver highest capacity, lower TCO and more value to your data center
Highlights
• 14TB capacity¹ in a standard 3.5-inch form factor
• CMR technology works with all capacity enterprise applications & environments
• Reliable, field-proven, 6th generation design
• Industry’s first HDD with Energy-Assisted Magnetic Recording technology
• Industry’s first Triple Stage Actuator
• HelioSeal® design delivers outstanding power efficiency
• 2.5M hours (projected) MTBF² rating
Applications
• Cloud & Hyperscale storage
• Massive scale-out (MSO), high-density data centers
• Distributed File Systems
• Bulk storage using object storage solutions like Ceph™ and OpenStack® Swift
• Primary and secondary storage for Apache Hadoop® for Big Data Analytics
Part # 0F31152
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in Large Capacity 6Gb/s SATA Drives.
Please note: A SATA 4-WIRE Power adapter may be required when installing this HDD with PWRDIS feature into cabled HDD configurations. Please check the related items for link to this 5-wire to 4-wire SATA Power splitter / adapter.
| Ultrastar DC HC550 | |
|---|---|
| Model # | WUH721414ALE604 |
| Part # | 0F31156 |
| Alt Part # | 0F31284 0F31152 |
| Configuration | |
| Capacity | 14TB/14000GB |
| Interface | SATA 6Gb/s |
| Format : Sector size (bytes) | 512e: 512 |
| Max. Areal density (Gbits/sq. in) | 918 |
| Performance | |
| Data buffer (MB) | 512 |
| Rotational speed (RPM) | 7200 |
| Latency average (ms) | 4.16 |
| Interface transfer rate (MB/s, max) | 600 |
| Sustained transfer rate (MB/s, typ.) (MiB/s, typical) | 262 250 |
| Workloads | Up to 550 TB / year |
| Reliability | |
| Error rate (non-recoverable, bits read) | 1 in 10E15 |
| Load/Unload cycles (at 40°C) | 600,000 |
| Availability (hrs/day x days/wk) | 24x7 |
| MTBF (M hours) | 2.5 |
| Annualized Failure Rate (AFR) | 0.35% |
| Acoustics | |
| Idle (Bels, typical) | 2.0/3.6 |
| Power | |
| Requirement | +5 VDC +12 VDC |
| Operating W | 6.5 |
| Idle (W) | 5.6 |
| Power consumption efficiency at idle (W/TB) (Watts/TB) | 0.35 |
| Physical size | |
| z-height (mm) | 26.1 |
| Dimensions (width x depth, mm) | 101.6 (+/- 0.25) x 147 |
| Weight (g, max) | 690 |
| Environmental (Operating) | |
| Ambient temperature | 5°C to 60°C |
| Shock (half-sine wave, 2 ms, G) | 50 |
| Vibration (G RMS 5 to 500 Hz) | 0.67 (XYZ) |
| Environmental (Non-Operating) | |
| Ambient temperature | -40°C to 70°C |
| Shock (half-sine wave, G) | 250 (2ms) |
| Random Vibration (G RMS 2 to 200 Hz) | 1.04 (XYZ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 0F31156 0F31284 0F31152 WUH721414ALE6L4
Weight: 1.8 lb
