Western Digital VelociRaptor WD3000BLHX SATA Enterprise Drive
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 300GB |
| Speed: | 10K RPM |
| Interface Types: | SATA |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SATA 300 - 3Gbps |
| RAM: | 16MB |
Description

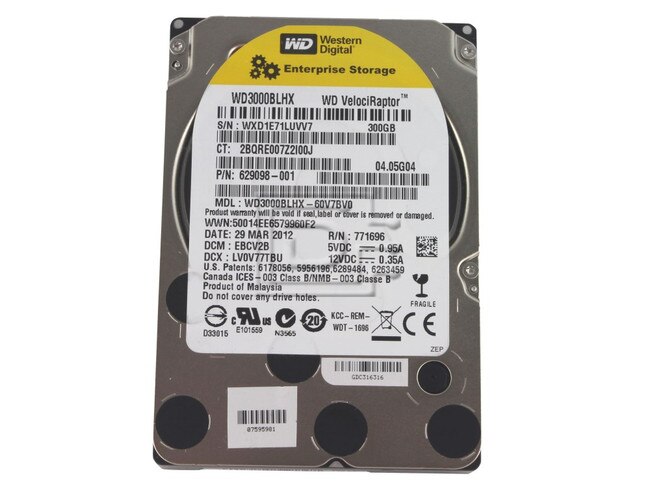

Western Digital VelociRaptor WD3000BLHX 300GB 10K 2.5" SATA Enterprise Hard Drive - Brand New
SATA 6 Gb/s interface and 32 MB cache enhance the next generation 10,000 RPM WD VelociRaptor making it up to 15% faster than the award-winning previous generation.
ROCK-SOLID RELIABILITY.
Best-in-class 1.4 million hour MTBF and 5-year limited warranty, makes these the most reliable SATA hard drives around.
Alternate HP PN: 637310-001
Compatibility
This drive is compatible with any of our 2.5" SATA drive trays and any of our SATA controllers.
Specifications
Drive specification | WD3000BLHX |
Formatted Gbytes (512 bytes/sector) | 300 |
Bytes per sector | 512 |
Spindle speed (RPM) | 10,000 |
I/O data transfer rate (MBps) | 300 |
Cache buffer | 16 Mbytes |
Interface Type | Serial ATA-300 |
Average latency | 5.50 ms |
Seek time (read / write) ms | 4.2 / 4.7 |
Track-to-track seek | 0.7 ms |
Track-to-track seek - Write | 0.4 ms (average), 0.75 (maximum) |
Start/stop cycles | 50,000 minimum |
Dimensions (HxLxW) inches | 1.028 / 5.787 / 4.00 |
Weight | 1.08 lbs |
Operating Shock (Read) | 65G, 2ms |
Non-operating Shock | 300G, 2ms |
Temperature - Operating | 41F - 131F |
Temperature - Non-operating | -40F - 158F |
Current Requirements 12VDC (Read/Write, Idle, Standby, Sleep) | 225ma / 200ma / 6ma / 6ma |
Current Requirements 5VDC (Read/Write, Idle, Standby, Sleep) | 675ma / 425ma / 70ma / 70ma |
Alternate MPNs: 637310-001
Weight: 1.8 lb
Warranty: 1 Year DiscTech
