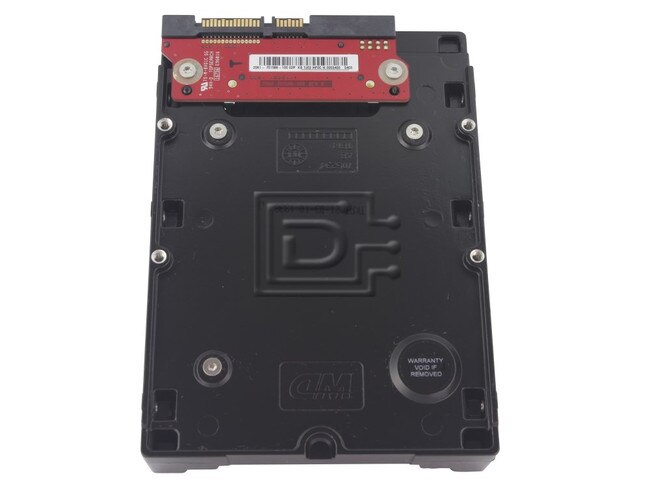

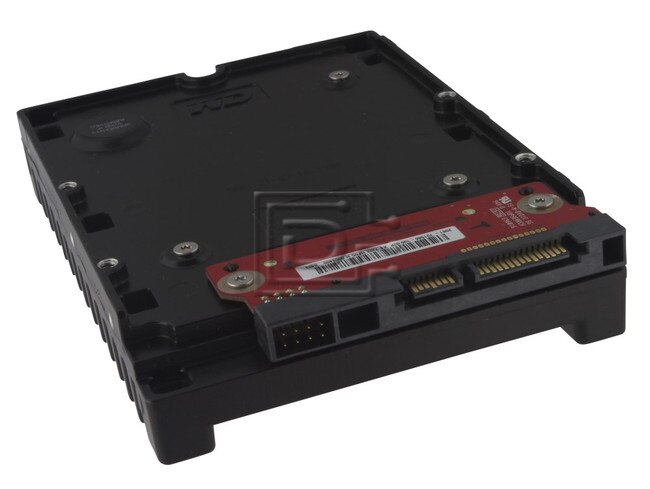

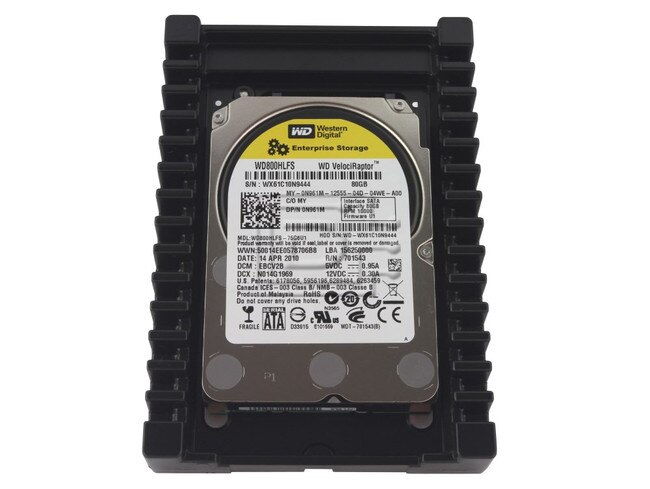

Western Digital VelociRaptor WD800HLFS Enterprise SATA Hard Disk Drive

Western Digital Part #/MPN: WD800HLFS

DiscTech Item #: WDC-WD800HLFS-RF-OE-DEL


$94.00
  • Special Order - Ships in 5-10 business days
$94.00

Enterprise Grade

Capacity: 80GB

Speed: 10K RPM

Interface Types: SATA

Form Factor: 3.5" LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 126

Average Seek Time: 4.2 / 4.7

Electrical Interface: SATA 300 - 3Gbps

On-Board Cache: 16MB

Western Digital VelociRaptor WD800HLFS 80GB 10K SATA  Enterprise Hard Drive - Refurbished OEM

Engineered for maximum speed! WD VelociRaptor, the newest member of our unique class of 10,000 RPM SATA hard drives, combines a SATA 3 Gb/s interface and 16 MB cache to deliver performance that’s up to 35% faster than its speedy older brother.

Key Features

Killer speed - Built on the performance bloodlines of WD Raptor®, these 10,000 RPM drives, with SATA 3 Gb/s interface, and 16 MB cache deliver mind-bending performance. Not only are they 35% faster than the previous generation WD Raptor drives, but they also beat out all other competitors in the field.

Rock-solid reliability - Designed and manufactured to mission-critical enterprise-class standards to provide enterprise reliability in high duty cycle environments. With 1.4 million hours MTBF, these drives have the highest available reliability rating on a high capacity SATA drive.

Double the capacity - State-of-the-art technology packs twice the capacity per disk compared to its older brother WD Raptor resulting in up to 300 GB of high-performance storage space in this enterprise-class 2.5-inch drive.

Ultra-cool operation - WD VelociRaptor consumes 35% less power than the previous generation of WD Raptor.

IcePack™ mounting frame - The 2.5-inch WD VelociRaptor is enclosed in a backplane-ready 3.5-inch enterprise-class mounting frame with a built-in heat sink that keeps this powerful little drive extra cool when installed in high-performance desktop chassis.

Rotary Acceleration Feed Forward (RAFF™) - Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis.

NoTouch™ ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

Dell p/n: 0N961M / N961M


Compatibility:

This drive is compatible with any of our SATA drive trays and any of our SATA controllers.

Drive specification

Western Digital VelociRaptor WD800HLFS

Formatted Gbytes (512 bytes/sector)

80

Bytes per sector

512

Spindle speed (RPM)

10,000

I/O data transfer rate (MBps)

300

Cache buffer

16 Mbytes

Interface Type

Serial ATA-300

Average latency

5.50 ms

Seek time (read / write) ms

4.2 / 4.7

Track-to-track seek

0.7 ms

Track-to-track seek - Write

0.4 ms (average), 0.75 (maximum)

Start/stop cycles

50,000 minimum

Dimensions (HxLxW) inches

1.028 / 5.787 / 4.00

Weight

1.08 lbs

Operating Shock (Read)

65G, 2ms

Non-operating Shock

300G, 2ms

Temperature - Operating

41F - 131F

Temperature - Non-operating

-40F - 158F

Current Requirements 12VDC (Read/Write, Idle, Standby, Sleep)

225ma / 200ma / 6ma / 6ma

Current Requirements 5VDC (Read/Write, Idle, Standby, Sleep)

675ma / 425ma / 70ma / 70ma

Alternate MPNs: 0N961M N961M 0F615H F615H

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Refurbished

1 Year DiscTech Warranty
