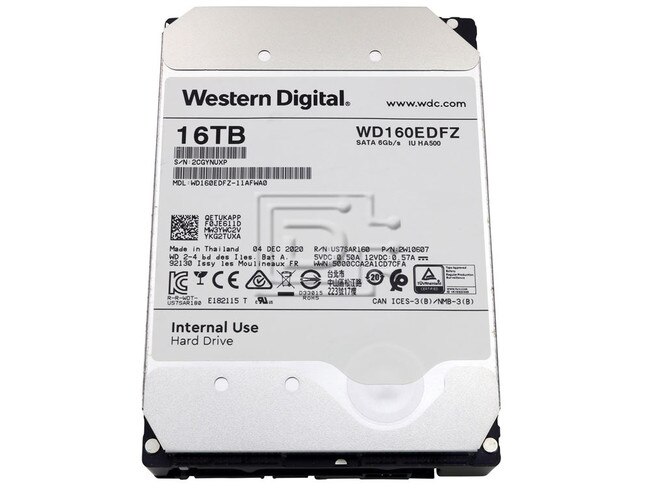

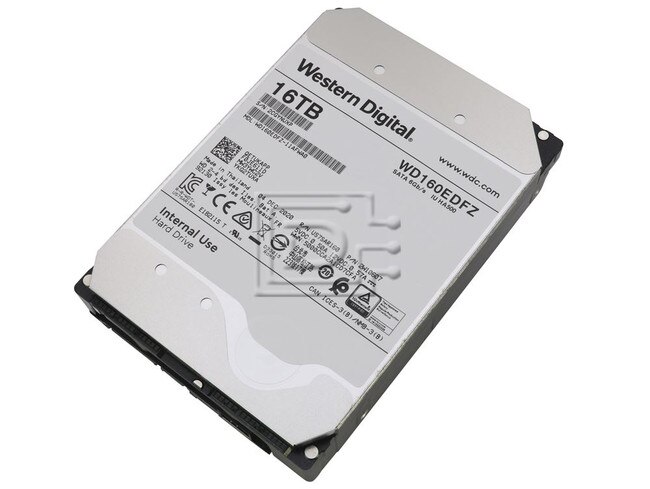

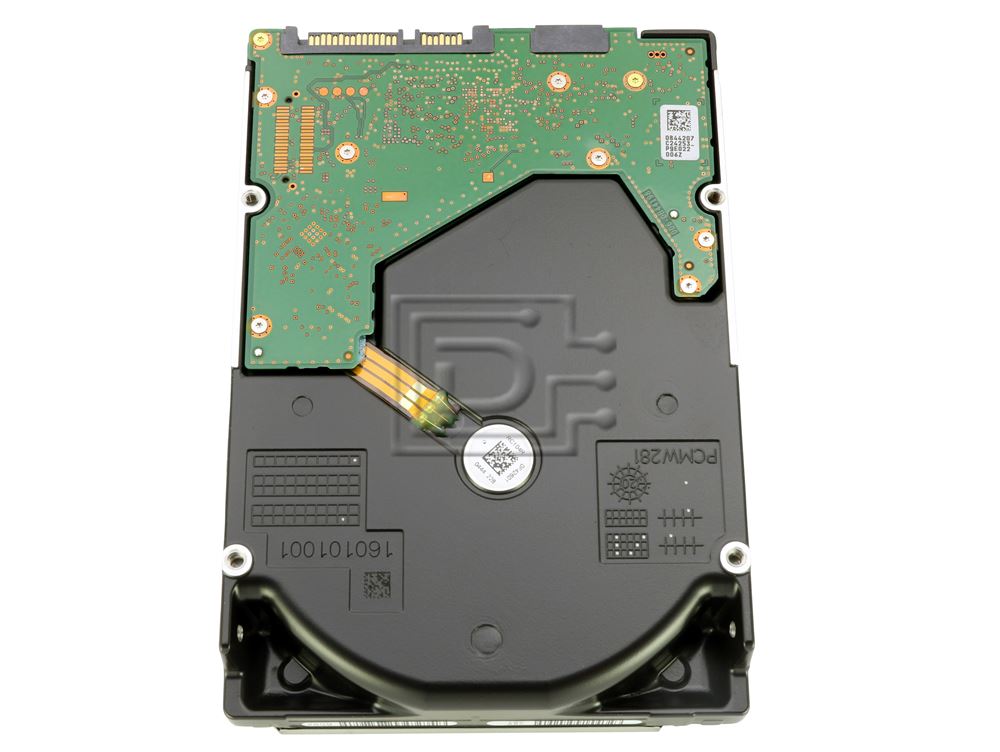

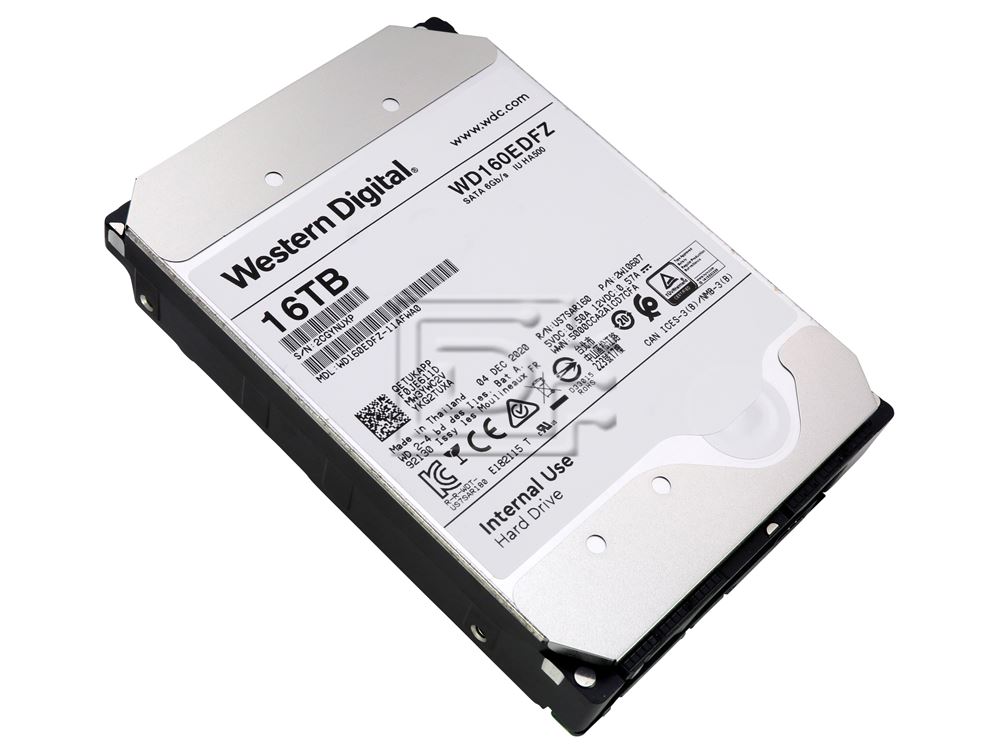

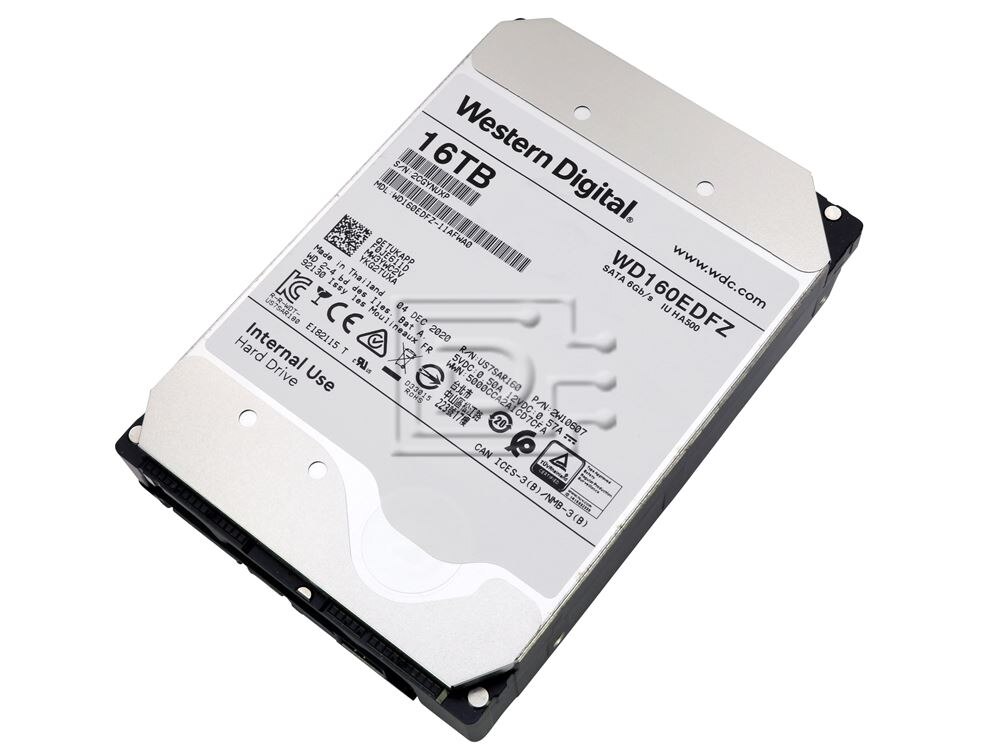

16TB WD Red Plus WD160EDFZ LFF SATA Hard Drive

Western Digital Part #/MPN: WD160EDFZ

DiscTech Item #: WDC-WD160EDFZ-BN-OE


$309.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$309.00

Enterprise Grade

Capacity: 16TB

Speed: 5,400RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 217

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 128MB

Western Digital WD160EDFZ / 2W10607 16TB 128MB Cache 5400RPM 3.5 LFF CMR SED NAS SATA 6 Gb/s Hard Drive - Brand New

Western Digital WD160EDFZ / 2W10607 16TB 128MB Cache 5400RPM 3.5 LFF CMR SECURE ERASE/ENCRYPTION NAS SATA 6 Gb/s - Brand New

WD NAS / RED Plus series

NAS Storage

Designed specifically with SMB customers in mind, WD drives are available for up to 24-bay medium to large scale 24x7 NAS environments. Engineered to handle increased workloads from your business, WD  drives are extensively tested.

Product Benefits

NAS for Big Business
Increase the efficiency and productivity of your business with WD drives - available for up to 24 bay NAS systems. WD Red Plus drives come equipped with NASware 3.0 technology which increases system compatibility allowing for seamless integration with your existing network infrastructure. Add value to your business by enabling your employees to quickly share their files and back-up folders reliably with WD NAS hard drives in your NAS solution.

Exclusive NASware 3.0 technology
Our exclusive advanced firmware technology, NASware 3.0, enables seamless integration, robust data protection and optimal performance for NAS systems operating under heave demand.

Built for optimum NAS compatibility
Desktop drives aren’t purpose-built for NAS. But WD Red Pro drives with NASware 3.0 technology are purposed-built for NAS. Our exclusive technology takes the guesswork out of selecting a drive and balances performance and reliability in NAS and RAID environments. Simply put, a WD Red plus drive is one of the most compatible drives available for medium to large NAS enclosures. But don’t take our word for it. WD drives are a reflection of an extensive NAS partner technology engagement and compatibility-testing resulting in a leading compatibility list for NAS systems.

Larger NAS Bay Shock Protection
WD drives are equipped with a multi-axis shock sensor that automatically detects subtle shock events and dynamic fly height technology which adjusts each read-write function to compensate and protect the drives in larger 1 to 24 bay NAS environments and helps increase hard drive reliability.

Applications

Specifically targeted at the medium to large business NAS applications with 1-24 bays.*

* WD Hard Drives are designed and tested for use in specific applications and environments. This ensures that your hard drive is compatible with and functions properly in your application. Our hard drives are warranted against defects in materials and workmanship in the system for which they were designed. Use in systems other than for what the hard drive was designed could result in compatibility problems that affect proper function, unrelated to material and/or workmanship defects. For best results, be sure to select the appropriate product for your application by consulting our product spec sheets on our website at www.wd.com or by calling our customer support line where we would be happy to help you through the selection process.


Compatibility:

This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.

Similar 16TB SATA 3.5" specs as WD161KFGX, WD161KRYZ, ST16000NM001G, ST16000VN001

WD NAS HARD DRIVE
BUSINESS INTERNAL STOARGE
Model NumberWD160EDFZ
SPECIFICATIONS
InterfaceSATA 6 Gb/s
Formatted Capacity16TB
Form Factor3.5-inch
Advanced FormatYes
Native Command QueuingYes
Secure Erase/EncryptionYes
PERFORMANCE
Interface Transfer Rate (Max)Buffer to Host
  • 6 Gb/s
Host to/from Drive (Sustained)
  • 217 MB/s
Cache (MB)128
Performance Class5400 RPM
RELIABILITY/DATA INTEGRITY
Load/Unload Cycles600,000
Non-Recoverable Read Errors per bits Read<10 in 1015
MTBF (Hours) for 8-24 Bay NAS1,000,000
Workload Rate (TB/yr)300
POWER MANAGEMENT
12 V DC ± 10% (A, Peak)1.8
Average Power Requirements (W)Read/Write
  • 7.2
Idle
  • 3.7
Standby/Sleep
  • 0.4
ENVIRONMENTAL SPECIFICATIONS
Temperature (℃)Operating
  • 5 to 60
Non-Operating
  • -40 to 70
Shock (Gs)Operating (2 ms, read/write)
  • 30
Operating (2 ms, read)
  • 65
Non-Operating (2 ms)
  • 300
Acoustics (dBA)Idle
  • 29
Seek (Average)
  • 36
PHYSICAL DIMENSIONS
Height (in/mm, max)10.28/26.1
Length (in/mm, max)5.787/147
Width (in/mm ± .01 in)4/101.6
Weight (lb/kg ± 10%)1.58/0.72

ROHS Compliant

Alternate MPNs: 2W10607

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
