Western Digital Part #/MPN: WD1002FBYS
DiscTech Item #: WDC-WD1002FBYS-NP-OE-DEL
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 1TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 32MB

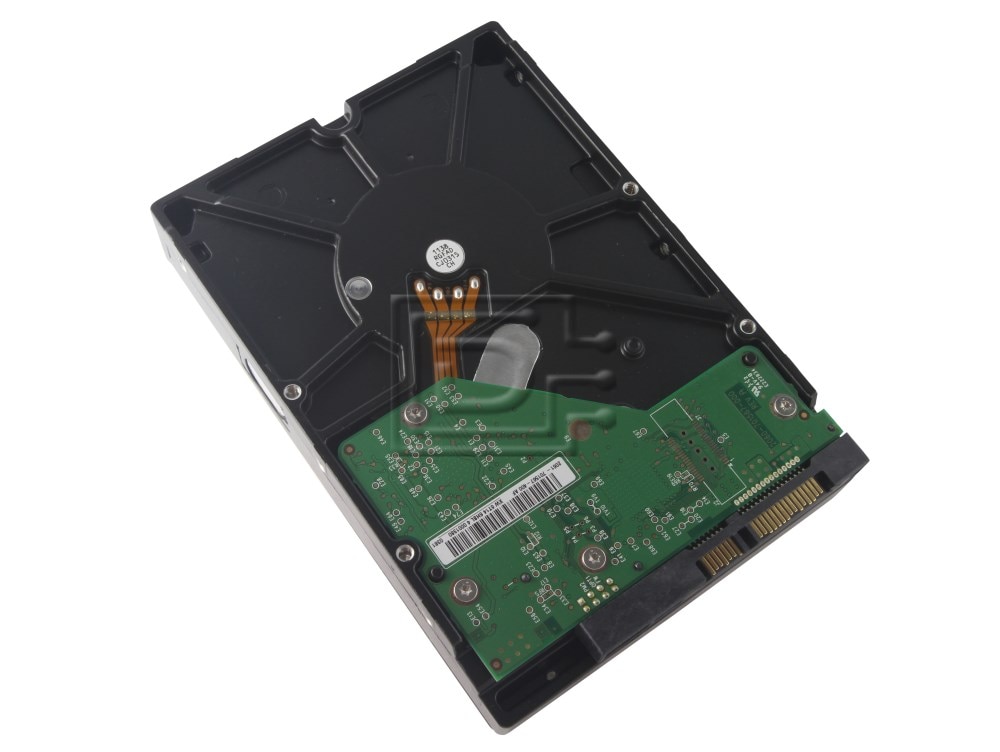

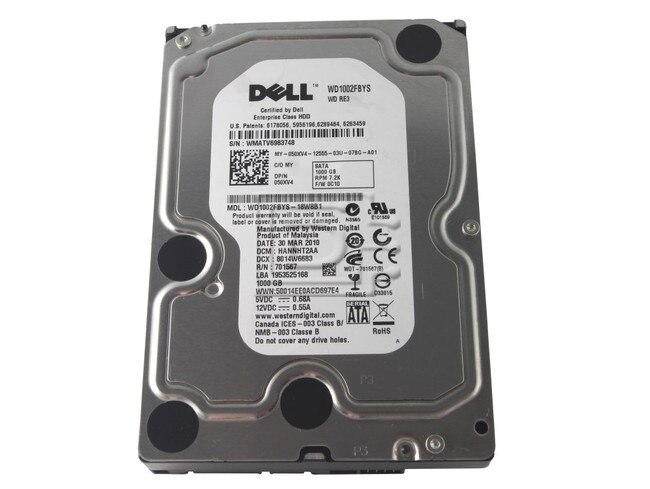

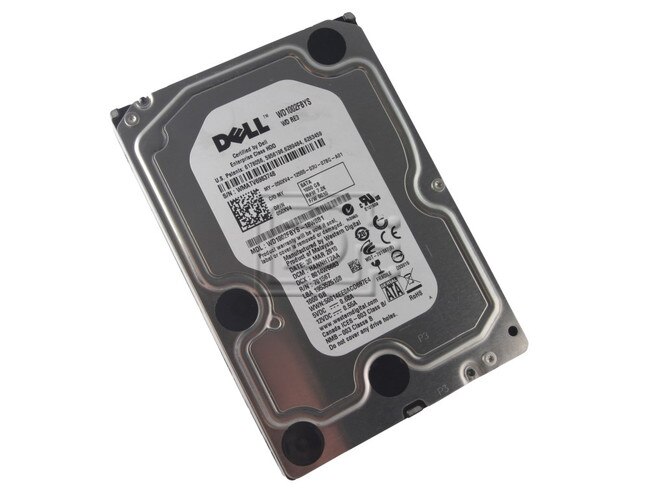

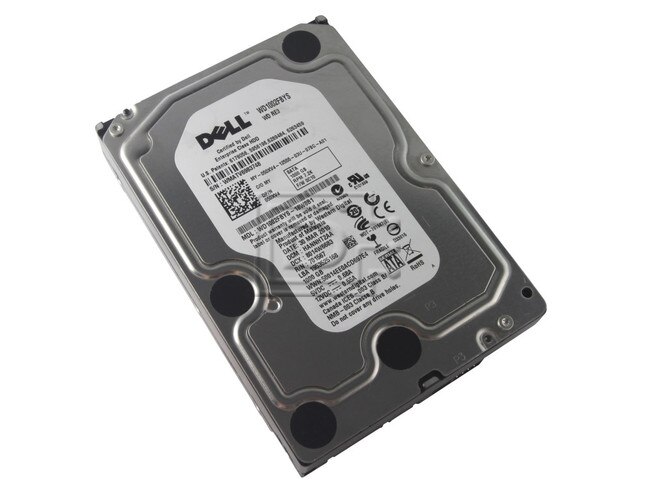

Western Digital Caviar RE3 WD1002FBYS 1000GB / 1TB 7.2K Enterprise SATA Hard Drive - New Pull OEM
Compatibility Summary
WD RE3 drives combine up to 32 MB cache with SATA 3 Gb/s transfer rate for lightning-fast performance in demanding server and storage applications. Technologically advanced acoustics minimize noise. Cool drive operation and enhanced reliability features help protect the drive and the data stored on it.
| Massive capacity - WD RE3 Enterprise SATA drives are available in capacities up to 1 TB. Dual processor - Twice the processing power results in a 20% performance improvement over the previous generation. StableTrac™ - The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations. RAFF™ - Our fourth generation RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time for up to a 60% performance improvement in high vibration environments over the previous generation of drives. IntelliSeek™ - Calculates optimum seek speeds to lower power consumption, noise, and vibration. Multi-axis shock sensor - Automatically detects the subtlest shock events and compensates to protect the data. RAID-specific, time-limited error recovery (TLER) - Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives. Third generation dynamic fly height - Each read-write head’s fly height is adjusted in real time for optimum reliability. Thermal extended burn-in test - Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation. NoTouch™ ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit. Perpendicular Magnetic Recording (PMR) - WD RE3 drives utilize PMR technology to achieve even greater areal density, reliability, and design margin. |
| Ideal For Ideal for servers, storage arrays, video surveillance, and other demanding write-intensive applications. |
DPN: 0J317F J317F
Capacity: 1000GB / 1TB / 1 TB
| Specifications | |
|---|---|
| Model number | WD1002FBYS |
| Model Name | RE3 |
| Formatted Capacity | 1000 Gbytes / 1TB |
| Rotational Speed | 7,200 rpm |
| Default Buffer (cache) Size | 32 Mbytes |
| Performance | |
| External (I/O) Transfer Rate (max) | 300 MBytes/sec |
| Average Latency | 4.2 msec |
| Physical | |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 25.4 mm |
| Width | 101.6 mm |
| Length | 146.05 mm |
| Weight | 0.69 kg |
| Electrical | |
| Power 12VDC (Rd/Wr; Idle; Standby; Sleep) | 490 mA; 470 mA; 5mA; 5mA |
| Power 5VDC (Rd/Wr; Idle; Standby; Sleep) | 500 mA; 420 mA; 160mA; 160mA |
| Environmental | |
| Max Operating Shock (2-msec) | 65 Gs |
| Max Nonoperating Shock (2-msec) | 250 Gs |
| Operating Vibration (max) | .75 Gs |
| Nonoperating Vibration (max) | 4.0 Gs |
| Operating Temperature (max) | 60 deg C |
| Operating Temperature (min) | 0 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustical | |
| Acoustics, Idle (sound power, typ) | 28 dBA |
| MTBF (Hours) | 1,200,000 hours |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
| Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 0J317F J317F
Weight: 1.8 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
