Western Digital WD10JPVX 1TB SATA Hard Drive
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 1TB |
| Speed: | 5.4K RPM |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 9mm Fits Most laptops |
| Electrical Interface: | SATA 600 - 6Gbps |
| RAM: | 8MB |
Description

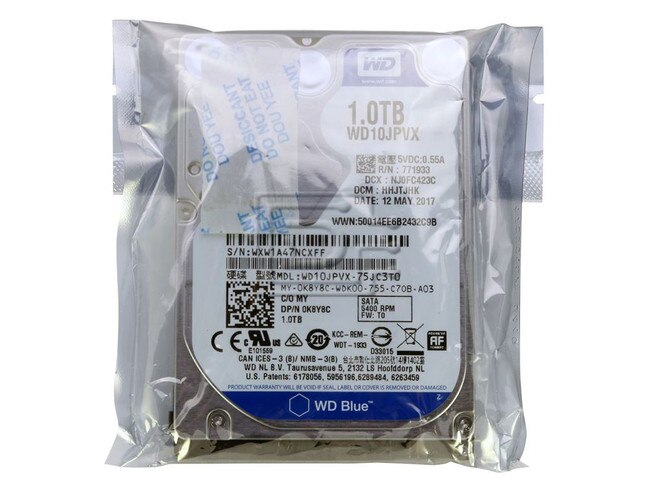

Western Digital Blue WD10JPVX 1TB 2.5in 6Gbps 5.4K RPM SATA HDD - Brand New
Western Digital Blue WD10JPVX 1TB 2.5" 6.0 Gbps 5,400 RPM Serial Advanced Technology Attachment Hard Disk Drive - Brand New
Product Features
Low Power Consumption
State-of-the-art seeking algorithms and advanced power management features ensure low power consumption and long battery life.
Quiet
In a notebook drive, silence is golden. WD’s exclusive noise reducing technologies yield one of the quietest 2.5-inch hard drives on the market.The Original
WD Blue drives are designed and manufactured with the proven technology found in WD’s original award-winning hard drives.
WD Quality
Built to the highest standards of quality and reliability, these drives offer the features and capacity ideal for your everyday computing needs.
Available SATA 6 Gb/s Interface
The SATA 6 Gb/s interface provides greater flexibility for use with the latest chipset as well as backwards compatibility to legacy systems with SATA 3 Gb/s requirements. (xPVX, xPCX, and MPCK models only).
Upgrading Your Drive is Easy
Acronis® True Image™ WD Edition Software, available as a free download on the WD Support site, enables you to copy all your data to a new drive so you don’t have to reinstall your operating system to get all the benefits of a new drive.
Compatible
Our latest generation of 7 mm 2.5-inch mobile drives is designed for thin and light mobile applications, and is also compatible with most standard 9.5 mm bays. (xPCX, LPVT, and LPVX models only).
NoTouch™ ramp load technology
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Compatibility:
This drive is compatible with any server that accepts 2.5"x9mm SATA drives
Specifications
| SPECIFICATIONS | |
|---|---|
| Part Number | WD10JPVX |
| Capacity | 1TB |
| Interface | SATA 6 Gb/s |
| Formatted Capacity | 1,000,204 MB |
| User Sectors per Drive | 1,953,525,168 |
| Advanced Format (AF) | Yes |
| Form Factor | 2.5-inch |
| RoHS Compliant | Yes |
| PERFORMANCE | |
| Data Transfer Rates Interface Speed Internal Transfer Rate (max) | 6 Gb/s 144 MB/s |
| Cache (MB) | 8 |
| Average Latency (ms) | 5.5 |
| Rotational Speed | 5400 |
| Average Drive Ready Time (sec) | 3.0 |
| RELIABILITY/DATA INTEGRITY | |
| Load/Unload Cycles | 600,000 |
| Non-Recoverable Read Errors per Bits Read | <1 in 10e14 |
| Operating Voltage | +3.3V, +12V |
| POWER MANAGEMENT | |
| 5VDC ±10% (A, peak) | 1.00 |
| Average Power Requirements (W) Read/Write Idle Standby/Sleep | 1.4 0.59 0.18 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temberature (°C) Operating Non-Operating | 0 to 60 -40 to 65 |
| Shock (Gs) Operating (2 ms, read) Non-Operating | 350 1000 (2 ms) |
| Acoustics (dBA) Idle Seek (average) | 24 25 |
| PHYSICAL DIMENSIONS | |
| Height (in/mm) | 0.28/7.0 |
| Length (in/mm) | 3.94/100.20 |
| Width (in/mm) | 2.75/69.85 |
| Weight (ib/kg, ± 10%) | 0.21/0.09 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.5 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
