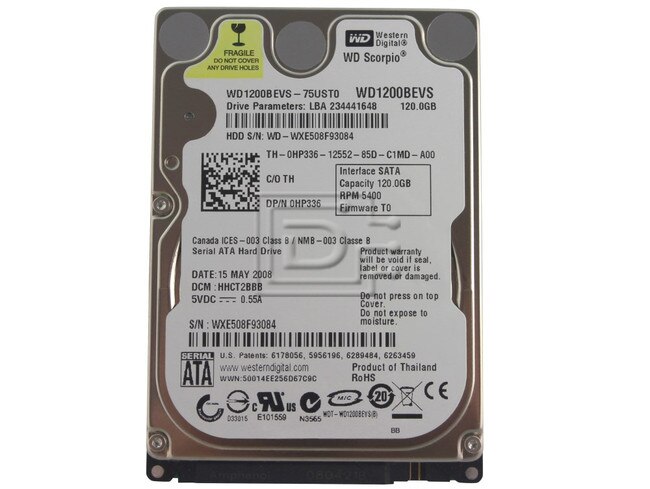

DELL HP336 / Western Digital Scorpio Blue WD1200BEVS SATA Hard Drive
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 120GB |
| Speed: | 5.4K RPM |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 9mm Fits Most laptops |
| Electrical Interface: | SATA 150 - 1.5Gbps |
| RAM: | 8MB |
Description
DELL HP336 / Western Digital Scorpio Blue WD1200BEVS 120GB 5.4K 2.5" SATA Hard Drive - Refurbished OEM
Quiet - In a notebook drive, silence is golden. WD’s exclusive WhisperDrive™ combines state-of-the-art seeking algorithms to yield one of the quietest 2.5-inch hard drives on the market. These algorithms also optimize the way a drive seeks for data, which significantly improves power consumption. So now silence (and longer battery life) is golden.
Reliable and Rugged - WD's ShockGuard™ technology protects the drive mechanics and platter surfaces from shocks. WD's SecurePark ™ parks the recording heads off the disk surface during spin up, spin down and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved non-operational shock tolerance.
Fast and Efficient - With 5400 RPM spin speed and 12 ms access time and up to 3 Gb/s SATA interface speed, even the most demanding customer will appreciate the performance achieved by WD Scorpio Blue drives.
Compatibility
This drive is compatible with any laptop/computer that accepts 2.5" SATA hard drives.
Specifications
 | ||
| Performance Specifications | ||
| Rotational Speed | 5,400 RPM (nominal) |
| Buffer Size | 8 MB |
| Average Latency | 5.50 ms (nominal) |
| ||
| Seek Times | ||
| Read Seek Time | 12.0 ms |
| Track-To-Track Seek Time | 2.0 ms (average) |
| ||
| Transfer Rates | ||
| Buffer To Host (Serial ATA) | 1.5 Gb/s (Max) |
| Transfer Rate (Buffer To Disk) | 600 Mbits/s (Max) |
| ||
| ||
| Physical Specifications | ||
| Formatted Capacity | 120,034 MB |
| Capacity | 120 GB |
| Interface | SATA 1.5 Gb/s |
| ||
| ||
| Physical Dimensions | ||
| English | ||
| Height | 0.374 Inches ±0.008 inch |
| Length | 3.94 Inches ±0.010 inch |
| Width | 2.75 ±0.010 inch |
| Weight | 0.26 Pounds |
| ||
| Metric | ||
| Height | 9.5 mm ±0.20 mm |
| Length | 100.2 ±0.25 mm |
| Width | 69.85 ±0.25 mm |
| Weight | 0.117 kg |
| ||
| ||
| Environmental Specifications | ||
| Acoustics | ||
| Idle Mode | 24 dBA (average) |
| Seek Mode 0 | 26 dBA (average) |
| ||
| Temperature (English) | ||
| Operating | 41° F to 140° F |
| Non-operating | -40° F to 149° F |
| ||
| Temperature (Metric) | ||
| Operating | 5° C to 60° C |
| Non-operating | -40° C to 65° C |
| ||
| Humidity | ||
| Operating | 8-90% RH non-condensing |
| Non-operating | 5-95% RH non-condensing |
| ||
| Altitude (English) | ||
| Operating | -1,000 feet to 10,000 feet |
| Non-operating | -1,000 feet to 40,000 feet |
| ||
| Altitude (Metric) | ||
| Operating | -305M to 3,050M |
| Non-operating | -305M to 12,200M |
| ||
| Vibration | ||
| Operating | |
| Linear | 10-500 Hz, 1.0G (0 to peak) |
| Random | 10-500 Hz (0.309 g² / Hz) |
| ||
| ||
| Electrical Specifications | ||
| Current Requirements | ||
| 5 VDC | |
| Read/Write | 500 mA |
| Idle | 400 mA |
| Standby | 50 mA |
| Sleep | 20 mA |
| ||
| Power Dissipation | |
| Read/Write | 2.50 Watts |
| Idle | 0.85 Watts |
| Standby | 0.25 Watts |
| Sleep | 0.10 Watts |
| ||
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HP336 0HP336
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
