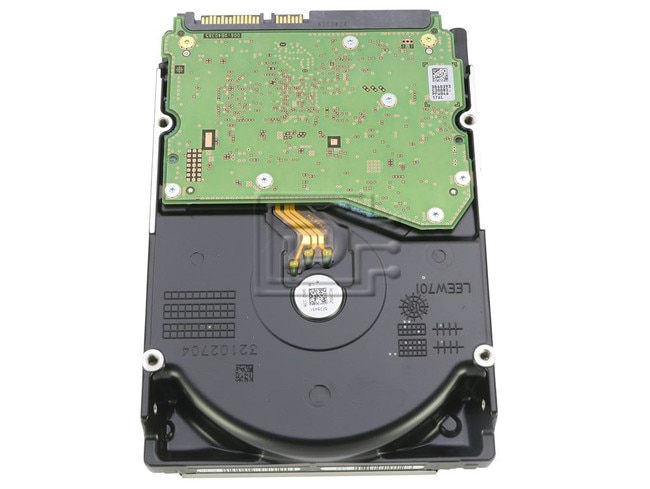

Western Digital WD140EDFZ 14TB 3.5" LFF 6Gbps 5400 RPM SATA Hard Drive

Western Digital Part #/MPN: WD140EDFZ

DiscTech Item #: WDC-WD140EDFZ-BN-OE

$299.00

Brand New
Condition Levels Explained
The product is brand new.
Warranty:1 Year DiscTech
Product Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

$299.00

Enterprise Grade

Capacity: 14TB

Speed: 5,400RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 267

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 512MB

Western Digital WD140EDFZ 14TB 3.5" LFF 6Gbps 5400 RPM SATA Hard Drive - Brand New

WD SATA Hard Drives
Model Number	WD140EDFZ
Form Factor	3.5-Inch
Interface	SATA 6 Gb/s
512n/512e User Sectors Per Drive	512e
Formatted Capacity	14TB / 14000GB
ROHS Complaint	Yes
Performance
Data Transfer Rate (Max Sustained)	267MB/s
Performance Class	5400 RPM Class
Cache (MB)	512
Power Management
Average Power Requirements (W)
Operational	6.0W
Idle	5.5W
Power efficiency index (W/TB, idle)	0.4
Reliability
MTBF (hours)	2,500,000
Annualized Failure Rate (AFR, %)	0.35
Environmental Specifications
Operating Temperature	5° C to 60° C
Non-operating Temperature	-40° C to 70° C
Shock (Read/Write)	Operating (half-sine wave, 2ms) 70G/70G Non-Operating (half-sine wave, 2ms) 300G
Acoustics (Average)	Idle Mode 20 dBA Seek Mode 36 dBA
Physical Dimensions
Height (in/mm)	1.028/26.1
Length (in/mm)	5.787/147
Width (in/mm, ± .01 in)	4/101.6

ROHS Compliant

Weight: 1.8 lb

Warranty: 1 Year DiscTech
