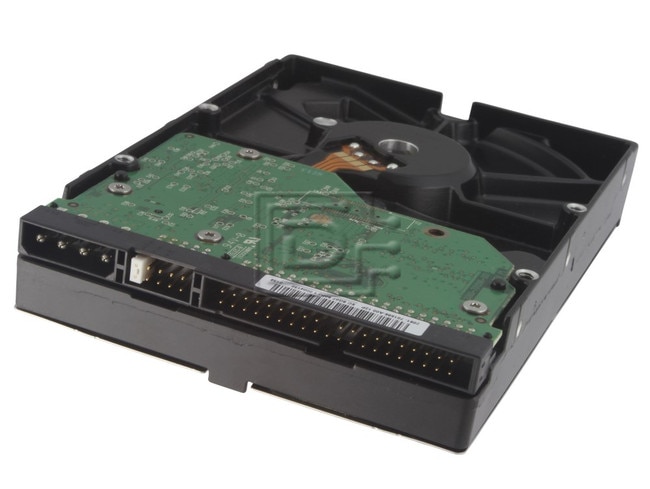

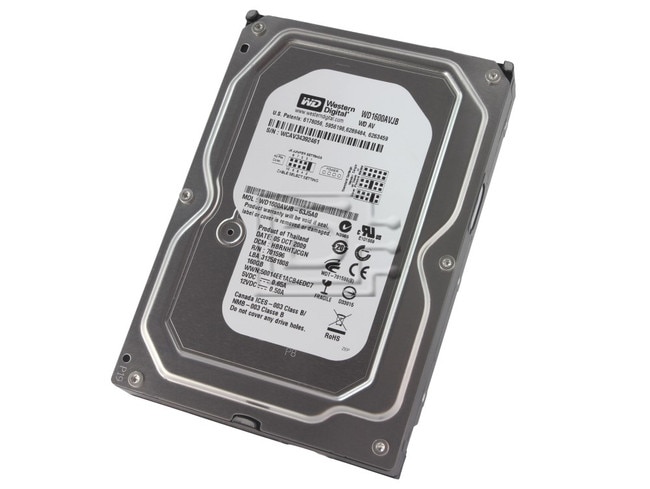

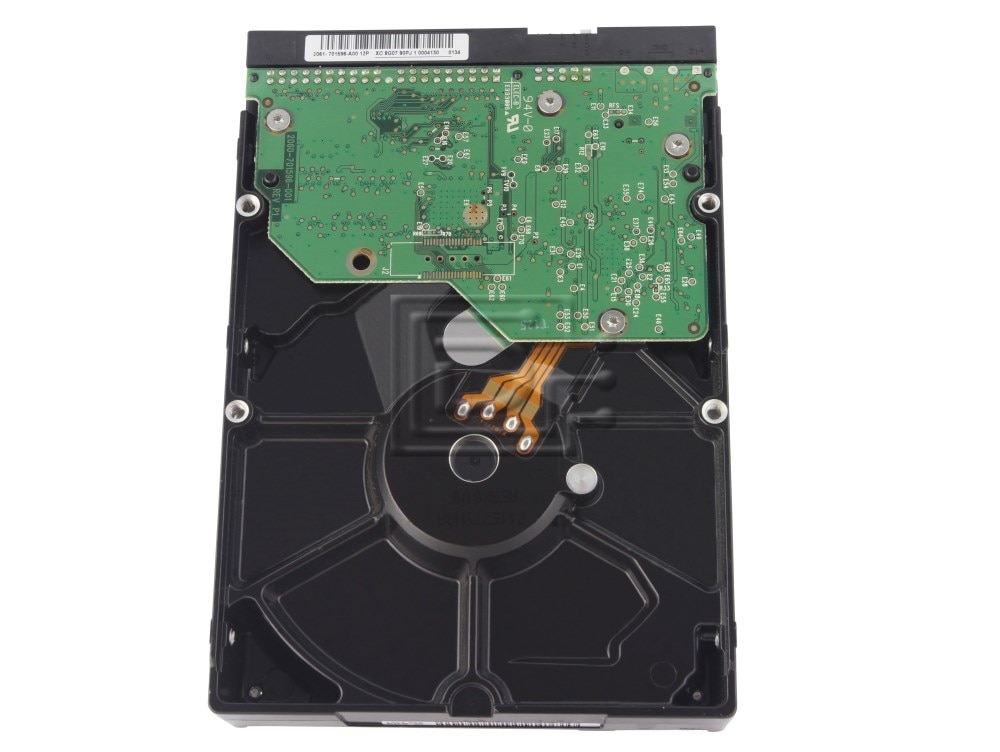

Western Digital WD1600AVJB 160GB PATA / Ultra ATA100 Hard Drive

Western Digital Part #/MPN: WD1600AVJB

DiscTech Item #: WDC-WD1600AVJB-RF-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Enterprise Grade

Capacity: 160GB

Speed: 7,200RPM

Interface Types: IDE ATA 3.5in

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Electrical Interface: EIDE Ultra ATA100 100MBps

On-Board Cache: 8MB

Western Digital WD AV WD1600AVJB 160GB 100MBps 7.2K PATA / Ultra ATA100 Hard Drive - Refurbished

Western Digital WD AV WD1600AVJB 160GB 100MBps 7,200 RPM PATA / Ultra ATA100 Hard Drive - Refurbished

Designed for 24x7 audio and video environments.

WD AV hard drives take advantage of significant design advances in WD’s storage technology by incorporating SilkStream™ streaming with whisper-quiet acoustics, 7200 RPM performance, and thermally optimized operation. These design advances enable unparalleled reliability and low cost of ownership for manufacturers of digital video recording devices.


24x7 reliability
With a MTBF of 1 million hours, these drives are designed to last in always-on streaming digital audio/video environments such as PVR/DVR, VR recorders, and surveillance video recorders.

Noise levels have been minimized to less than one sone – virtually below the threshold of human hearing.

PATA or SATA interface
Although most systems use hard drives with a SATA interface, some unique or legacy systems require drives with a PATA interface.

Tested for compatibility in a broad range of AV products including set top boxes, DVD recorders, and mainstream surveillance systems.

Optimizes seek speeds to lower power consumption, noise and vibration.

Optimized for smooth, continuous digital video playback of up to twelve simultaneous HD streams.** SilkStream is compatible with the ATA streaming command set allowing CE customers to use standard streaming management and error recovery options.

1 million hours MTBF
Best-in-class reliability for mainstream 3.5-inch form-factor AV storage.

Ramp Load
Parks the recording heads off the disk surface during spin up, spin down, and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved non-operational shock tolerance.

Preemptive Wear Leveling (PWL)
The drive arm frequently sweeps across the disk to reduce uneven wear on the drive surface common to audio/video streaming applications.


This drive is compatible with any server that accepts 3.5"x1" (LFF) PATA / Ultra ATA100 drives.

Model NumberWD1600AVJB
InterfacePATA 100 MB/s
Form factor3.5-inch
Spin speed7200 RPM
Cache / RAM8 MB

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
