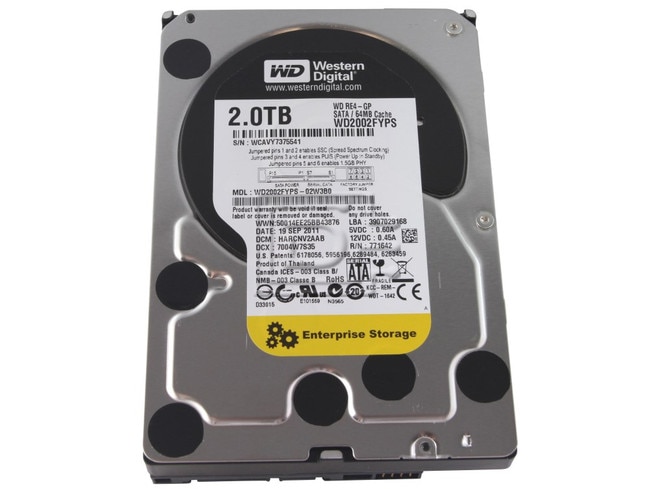

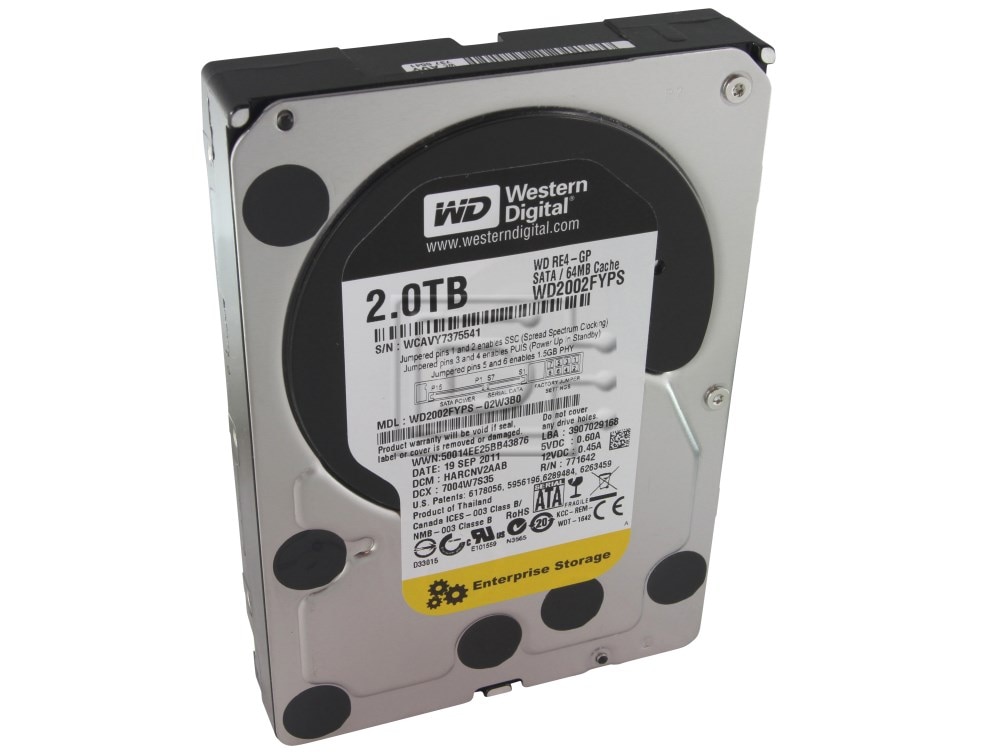

Western Digital WD2002FYPS 2TB SATA Hard Drive
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 3 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 2TB |
| Speed: | 5.4K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 300 - 3Gbps |
| RAM: | 64MB |
Description
Western Digital RE4-GP WD2002FYPS 2TB / 2000GB 3Gbps IntelliPower SATA Hard Drive - New Pull
Western Digital RE4-GP WD2002FYPS 2TB / 2000GB 3.0Gbps IntelliPower Serial ATA Hard Drive - New Pull
WD RE4-GP
Power-Saving Hard Drives
Available in capacities up to 2 TB, WD RE4-GP SATA hard drives offer data-hungry organizations massive capacity with significant power savings and lower cost of ownership compared to competitors’ standard enterprise-class drives. These drives are designed with WD GreenPower Technology™ to deliver power savings as the primary attribute and are equipped with 64 MB cache, dual processors, and IntelliPower™, a fine-tuned balance of spin speed, transfer rate, and caching algorithms designed to deliver both significant power savings and solid performance.
PRODUCT BENEFITS
Faster
Massive 64 MB cache, dual processors, and increased areal density yield twice the processing power which results in up to 25 percent performance improvement over the previous generation.
Greener
Improvements in our power-conserving technologies — IntelliSeek™, IntelliPark™, and IntelliPower™— deliver improved power consumption over our previous generation of WD RE-GP drives.
Improved rotary vibration tolerance
Optimized drive mechanics, system characterization, and process validation yields unmatched performance in high vibration environments.
Lower total cost of ownership
Large data-hungry financial institutions and web service providers can save up to $10 savings per drive per year in electricity costs (U.S). A large data center with 10,000 drives could realize up to $100,000 in savings per year.
24x7 reliability
With 1.2 million hours MTBF, these drives have the highest available reliability rating on a high-capacity drive.
PRODUCT FEATURES
IntelliPower
A fine-tuned balance of spin speed, transfer rate, and caching algorithms designed to deliver both significant power savings and solid performance. Additionally, drives with WD GreenPower Technology consume less current during start up allowing more drives to spin up simultaneously resulting in faster system readiness.
IntelliSeek
Calculates optimum seek speeds to lower unnecessary power consumption, noise, and vibration.
IntelliPark
Delivers lower power consumption by automatically unloading recording heads during idle to reduce aerodynamic drag, and by disengaging read/write channel electronics.
Active Power Management
Drives with WD GreenPower Technology monitor the work load and automatically invoke idle mode whenever possible to further reduce unnecessary power consumption. Drive recovery time from idle mode is less than one second, providing seamless power management between the drive and the host controller.
StableTrac™
Secures the motor shaft at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations.
RAID-specific time-limited error recovery (TLER)
Pioneered by WD, this feature prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.
Rotary Acceleration Feed Forward (RAFF™)
Optimizes operation and performance when the drives are used in vibrationprone multi-drive systems such as rackmounted servers.
Compatibility
This drive is compatible with any server that accepts 3.5"x1" (LFF) SATA drives.
Specifications
| Specifications | |
|---|---|
| Model number | WD2002FYPS |
| Interface | SATA 3 Gb/s |
| Formatted capacity | 2 TB |
| User sectors per drive | 3,907,029,168 |
| Native command queuing | Yes |
| SATA latching connector | Yes |
| Form factor | 3.5-inch |
| RoHS compliant | Yes |
| Performance | |
| Data transfer rate (max) Buffer to host Host to/from drive (sustained) | 3 Gb/s 110 MB/s |
| Cache (MB) | 64 |
| Rotational speed (RPM) | IntelliPower |
| Average drive ready time (sec) | 17 |
| Configuration/Organization | |
| Heads/disks | 8/4 |
| Bytes per sector (STD) | 512 |
| Reliability/Data Integrity | |
| Load/unload cycles | 600,000 |
| Non-recoverable read errors per bits read | <1 in 10^15 |
| Power Management | |
| 12VDC (A, max) | 1.8 |
| Average power requirements (W) Read/Write Idle Standby Sleep | 6.8 3.7 0.8 0.8 |
| Environmental Specifications | |
| Temperature (°C) Operating Non-operating | 5 to 55 -40 to 70 |
| Shock (Gs) Operating (2 ms, read) Operating (2 ms, read/write) Non-operating (2 ms) | 30 65 300 |
| Average acoustics (dBA) Idle mode Performance seek mode Quiet seek mode | 25 29 26 |
| Physical Dimensions | |
| Height (in./mm, max) | 1.028/26.1 |
| Length (in./mm, max) | 5.787/147 |
| Width (in./mm, ± .01 in.) | 4/101.6 |
| Weight (lb./kg, ± 10%) | 1.61/0.73 |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 3 Year Manufacturer
Condition
New Pull
Warranty
3 Year Manufacturer Warranty
