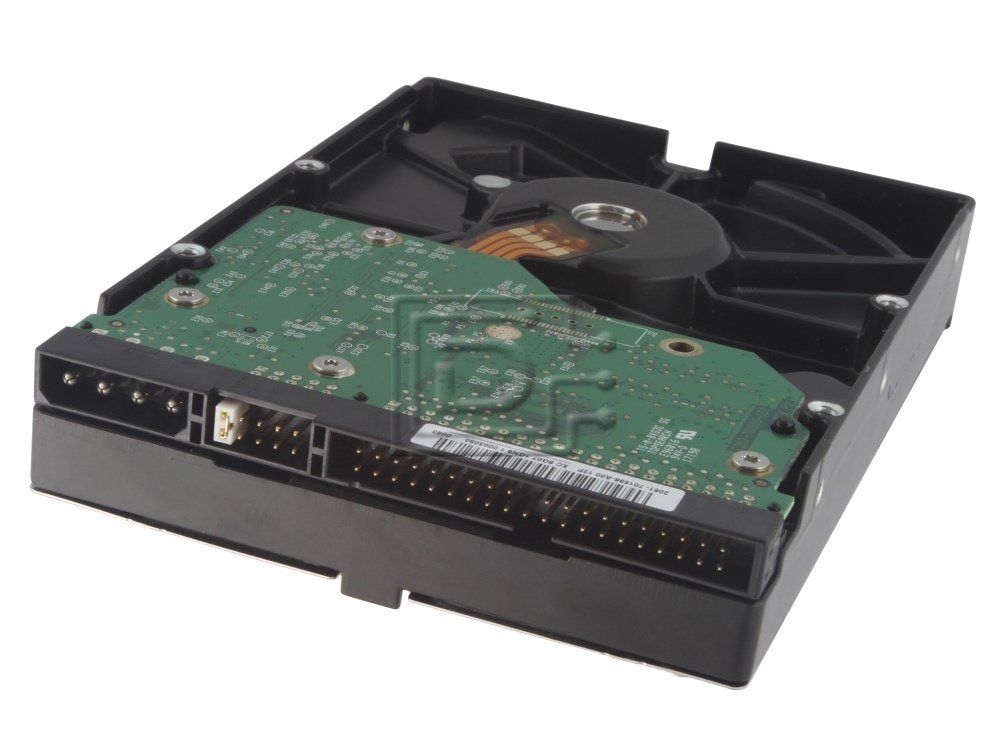

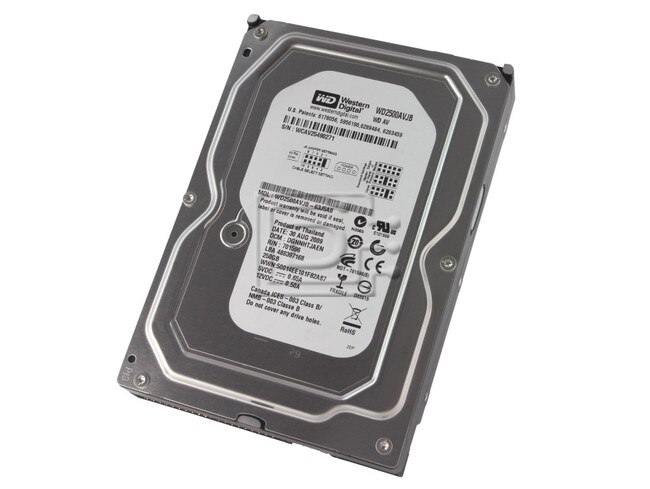

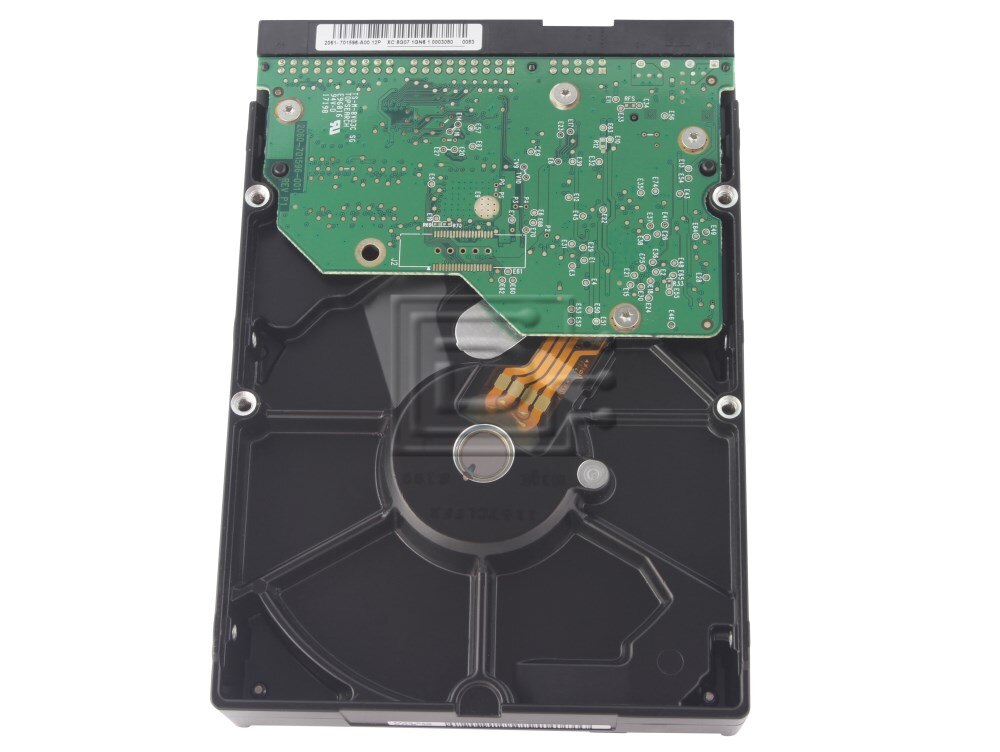

Western Digital WD2500AVJB 250GB Ultra ATA100 Hard Drive

Western Digital Part #/MPN: WD2500AVJB

DiscTech Item #: WDC-WD2500AVJB-RF-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Capacity: 250GB

Speed: 7,200RPM

Interface Types: IDE ATA 3.5in

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 100

Average Seek Time: 8.9

Electrical Interface: EIDE Ultra ATA100 100MBps

On-Board Cache: 8MB

Western Digital WD AV WD2500AVJB 250GB 3.5" 7.2K RPM EIDE / Ultra ATA 100 HDD - Refurbished

Western Digital WD AV WD2500AVJB 250GB 3.5" 7.2K RPM EIDE / Ultra ATA 100 HDD - Refurbished

Designed for 24x7 audio and video environments.

WD AV hard drives take advantage of significant design advances in WD’s storage technology by incorporating SilkStream™ streaming with whisper-quiet acoustics, 7200 RPM performance, and thermally optimized operation. These design advances enable unparalleled reliability and low cost of ownership for manufacturers of digital video recording devices.


24x7 reliability
With a MTBF of 1 million hours, these drives are designed to last in always-on streaming digital audio/video environments such as PVR/DVR, DVR recorders, and surveillance video recorders.

Noise levels have been minimized to less than one sone – virtually below the threshold of human hearing.

PATA or SATA interface
Although most systems use hard drives with a SATA interface, some unique or legacy systems require drives with a PATA interface.

Tested for compatibility in a broad range of AV products including set top boxes, DVD recorders, and mainstream surveillance systems.

Optimizes seek speeds to lower power consumption, noise and vibration.

Optimized for smooth, continuous digital video playback of up to twelve simultaneous HD streams.** SilkStream is compatible with the ATA streaming command set allowing CE customers to use standard streaming management and error recovery options.

1 million hours MTBF
Best-in-class reliability for mainstream 3.5-inch form-factor AV storage.

Ramp Load
Parks the recording heads off the disk surface during spin up, spin down, and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved non-operational shock tolerance.

Preemptive Wear Leveling (PWL)
The drive arm frequently sweeps across the disk to reduce uneven wear on the drive surface common to audio/video streaming applications.


This drive is compatible with any server that accepts 3.5"x1.0" (LFF) 40-pin EIDE (Ultra ATA100) drives.

Model NumberWD2500AVJB
Formatted Capacity250,059 MB
Used Sectors Per Drive488,397,168
Interface40-pin EIDE (ATA 100)
Bytes Per Sector512
Dedicated Landing ZoneYes
Actuator Latch/Auto ParkYes
Data Transfer Rate (maximum)
- Buffer to Host
- Host to/from Drive

100 MB/s max
972 Mbits/s sustained minimum)
Average Read Seek8.9 ms (average)
Rotational Speed7200 RPM
Read CacheAdaptive
Write CacheYes
Buffer8 MB
Drive Ready Time (from power on)12.5 sec average
Start/Stop Cycles50,000 min
Error Rate (non-recoverable)<1 in 10e14 bits read
Height1.028 in (25.4 mm) max)
Length5.787 in (147.0 mm) max
Width4.0 in (101.6 mm) ± .01 in.
- 12 V (± 10%)
- 5V(± 5%)
- Power

410 mA
675 mA
8.3 W
- 12 V (± 10%)
- 5V(± 5%)
- Power

525 mA
625 mA
15.1 W
- 12 V (± 10%)
- 5V(± 5%)
- Power

390 mA
600 mA
7.7 W
- 12 V (± 10%)
- 5V(± 5%)
- Power

6 mA
180 mA
1.0 W
- 12 V (± 10%)
- 5V(± 5%)
- Power

6 mA
180 mA
1.0 W
- Operating (2ms)
- Non-operating (2ms)
- Half sine wave measured in 2 ms

duration, measured withough isolation
- Random
- Linear
- Linear

0.008 g2 / Hz (10 to 300 Hz)
20-300 Hz, 0.75G (0 to peak)

20-500 Hz, 0.195 inches (dbl amp)
20-500 Hz, 4G (0 to peak)
Operating Temperature and Humidity
- Temperature
- Humidity
- Thermal Gradient

0°C to 60°C
5-95% RH non-condensing
20°C/hour (maximum)
Non-Operating Temperature and Humidity
- Temperature
- Humidity
- Thermal Gradient

-40°C to 65°C (-40°F to 149°F)
5-95% RH non-condensing
30°C/hour (maximum)
Acoustics (average)
- Idle Mode
- Seek Mode

25 dBA
26 dBA

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 1 Year DiscTech
