Western Digital Part #/MPN: WD30EURX
DiscTech Item #: WDC-WD30EURX-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 3TB
Speed: 5,400RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 145
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 64MB

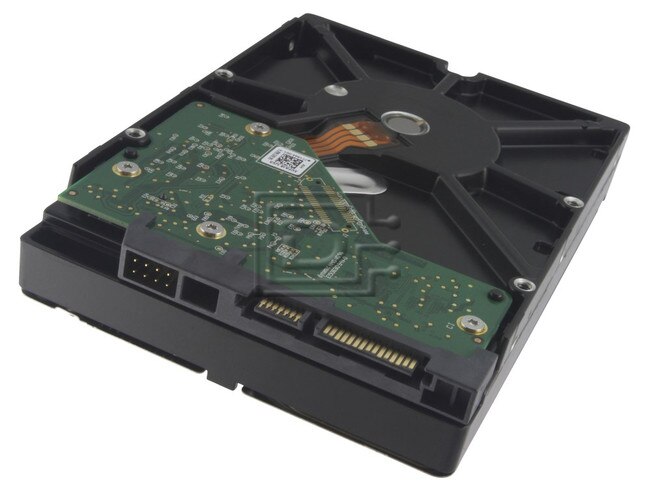

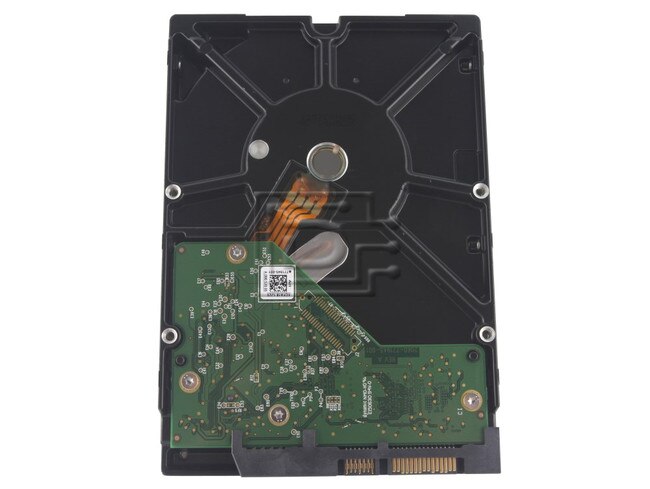

Western Digital AV-GP WD30EURX 3TB 3.5" 6Gbps IntelliPower SATA HDD - Brand New
Western Digital AV-GP WD30EURX 3000GB 3.5" 6.0 Gbps IntelliPower Serial ATA Hard Disk Drive - Brand New
WD AV-GP Video and Surveillance Drives
WD AV-GP SATA hard drives store more hi-def audio and video than ever before – up to 3 TB. They are optimized with SilkStream™ technology to capture data from up to 12 simultaneous HD video streams. And with 24x7 operation, low temperature, and best-in-class reliability, WD AV-GP hard drives are ideal for DVR/PVR and video surveillance applications.
Product Features
Highest capacity for audio/video storage
WD AV-GP SATA drives now offer unrivaled storage capacity up to 3 TB – perfect for today’s storage intensive applications.
24x7 reliability
These drives are designed to last in high temperature always on streaming digital audio/video environments such as PVR/DVR, IPTV, and video surveillance systems.
Compatible
Tested for compatibility in a broad range of AV products including set top boxes, DVR/PVR, and mainstream video surveillance systems. For drives with greater than 2.19 TB capacity, compatibility is selective to PVRs and surveillance systems that are compatible with hard drives exceeding 2.19 TB.
Reduced power consumption
WD AV-GP drives consume less power by up to 40 percent compared to 7200 RPM hard drives. Lower power means less heat and greater reliability
Quiet
Noise levels have been minimized to less than one tone - virtually below the threshold of human hearing.
SilkStream
Optimized for smooth, continuous digital video playback of up to twelve simultaneous HD streams. SilkStream is compatible with the ATA streaming command set so CE customers can use standard streaming management and error recovery options.
IntelliSeek™
Calculates optimum seek speeds to lower power consumption, noise, and vibration.
IntelliPower™
A fine-tuned balance of spin speed, transfer rate, and caching algorithms designed to deliver both significant power savings and solid performance.
NoTouch™ ramp load technology
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Preemptive Wear Leveling (PWL)
The drive arm frequently sweeps across the disk to reduce uneven wear on the drive surface common to audio video streaming applications.
Advanced Format (AF)
Technology being adopted by WD and other drive manufacturers as one of multiple ways to continue growing hard drive capacities. AF is a more efficient media format that enables increased areal densities.
1 million hours MTBF
Best-in-class reliability for mainstream 3.5-inch form-factor AV storage.
Compatibility:
This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.
| SPECIFICATIONS | |
|---|---|
| Model Number | WD30EURX |
| Formatted capacity | 3,000,592 MB |
| User sectors per drive | 5,860,533,168 |
| Form factor | 3.5-inch |
| Advanced Format (AF) | Yes |
| RoHS compliant | Yes |
| PERFORMANCE | |
| Data transfer rate (max) -Buffer to host -Host to/from drive (sustained) | 6 Gbp/s 145 MB/s |
| Cache (MB) | 64 |
| Rotational speed (RPM) | IntelliPower |
| RELIABILITY/DATA INTEGRITY | |
| Load/unload cycles | 300,000 |
| Non-recoverable read errors per bits read | <10 in 10e14 |
| POWER MANAGEMENT | |
| Average power requirements (W) -Read/Write -Idle -Standby and Sleep | 4.4 4.1 0.6 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature (°C, on the base casting) -Operating -Non-operating | 0 to 70 -40 to 70 |
| Shock (Gs) -Operating (2 ms, read/write) -Operating (2 ms, read) -Non-operating (2 ms) | 30 65 250 |
| Acoustics (dBA) -Idle -Seek (average) | 23 24 |
| PHYSICAL DIMENSIONS | |
| Height (in/mm, max) | 1.028/26.1 |
| Length (in/mm, max) | 5.787/147 |
| Width (in./mm, ± .01 in.) | 4/101.6 |
| Weight (lb./kg, ± 10%) | 1.61/0.73 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
