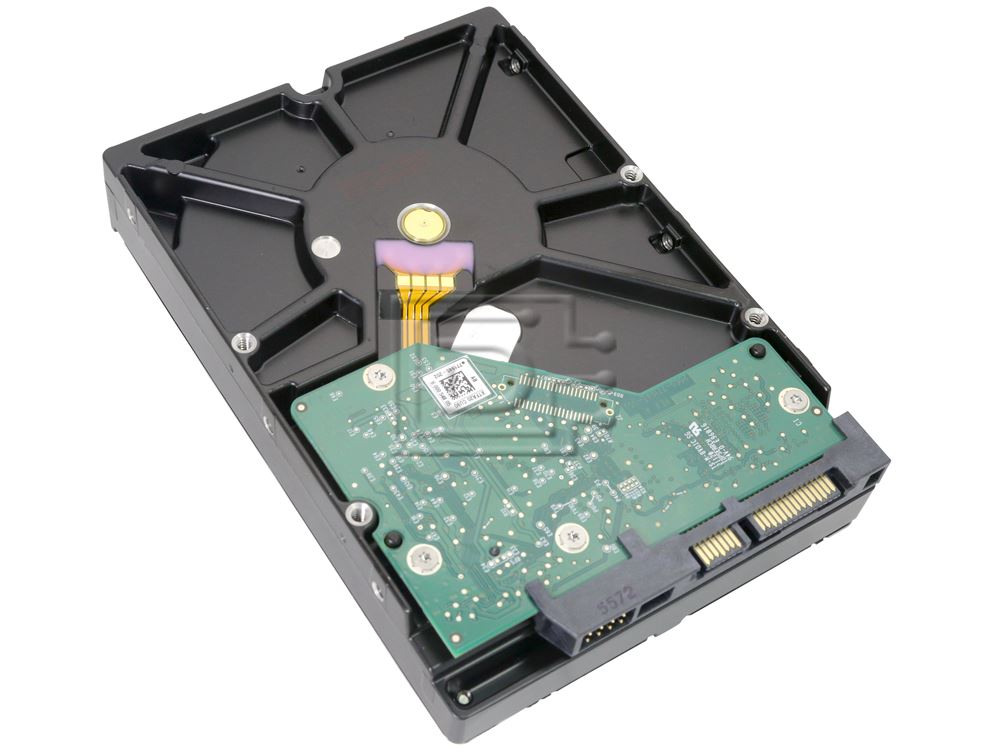

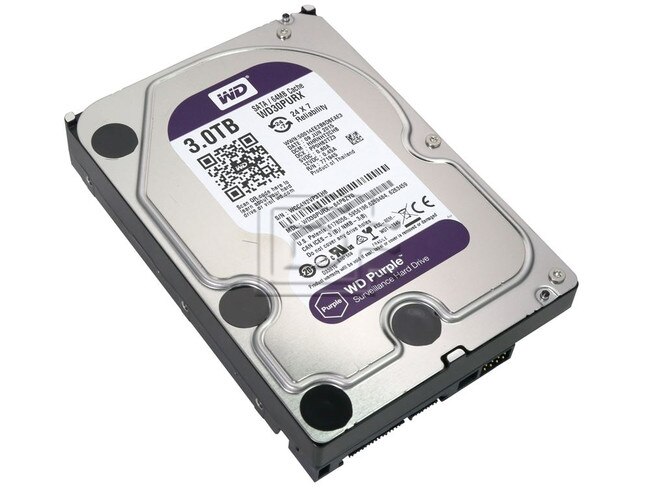

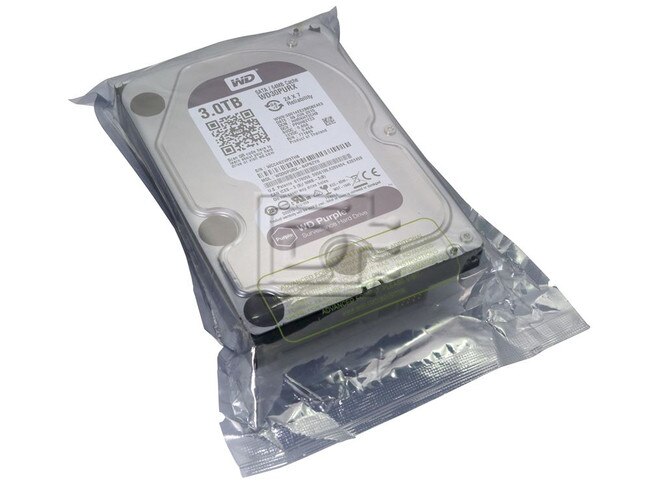

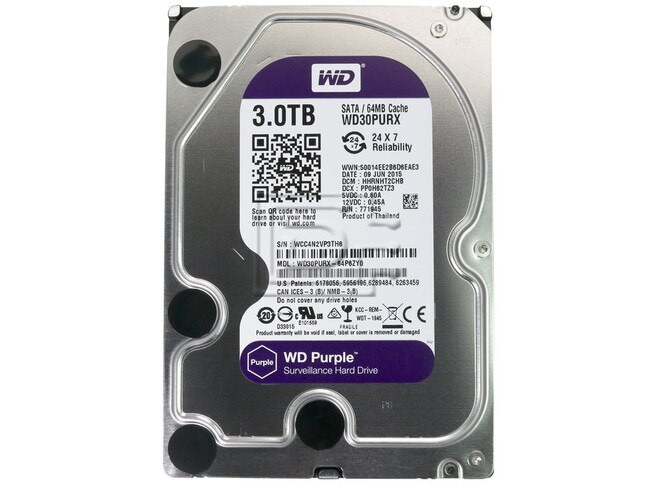

Western Digital WD30PURX 3TB SATA Hard Drive

(0) No Reviews Yet

Western Digital Part #/MPN: WD30PURX

DiscTech Item #: WDC-WD30PURX-BN-3Y


$89.00
$89.00

Capacity: 3TB

Speed: 5,400RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 145

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 64MB

Western Digital Purple WD30PURX 3TB 3.5in 6Gbps IntelliPower Serial ATA / SATA Hard Drive - Brand New

Western Digital Purple WD30PURX 3TB / 3000GB 3.5" 6Gbps IntelliPower / 5.4K / 5400 RPM Serial Attached Technology Attachment Hard Disk Drive - Brand New

WD Purple™ - Surveillance Hard Drives

WD Purple Surveillance Storage is built for 24/7 always-on surveillance in high-definition security systems that use up to eight hard drives and up to 32 cameras. Exclusive AllFrame™ technology works with ATA streaming to reduce error pixilation and video interruptions that occur when desktop hard drives are incorrectly used as storage in security systems.

Product Features

Desktop drives vs. surveillance-class storage - WD Purple surveillance-class storage has been tested to be compatible in a wide-range of security systems. These drives are designed to replace standard desktop drives that were not designed for the harsh 24/7 always-on, high-definition surveillance environment. Desktop drives are built to run for only short intervals and are not engineered to withstand high-temperature fluctuations and equipment vibrations found in a typical surveillance application.

Engineered for compatibility - WD Purple surveillance hard drives are built for compatibility with industry-leading chassis and chip set manufacturers for seamless integration into your new or existing video surveillance system.

Surveillance storage for peace-of-mind - Whether you’re protecting your personal assets and loved ones or monitoring the business you worked hard to build, you can rely on surveillance-class storage built by one of the largest hard drive manufacturers in the world. WD Purple Surveillance Hard Drives are designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video play back when you need it most. Experience the security of knowing you’re using a surveillance– class drive designed by a leader in the hard drive industry.

Optimized performance for up to 32 HD cameras- WD Purple hard drives are optimized to support up to 32 high-definition surveillance cameras, giving you the flexibility to upgrade and expand your security system in the future.

Improve performance with AllFrame™- WD Purple surveillance-class hard drives are equipped with AllFrame technology which works with ATA streaming to reduce frame loss, improve playback and increases the number of drive bays supported. AllFrame reduces video interruptions that commonly occur when desktop hard drives are incorrectly used as storage in security systems. Missed frames and lost footage is a serious problem when an event occurs and surveillance footage needs to be retrieved. WD Purple with AllFrame provides the confidence you should expect when it’s time to play back and review critical surveillance footage.

Lower power consumption- Low power consumption is crucial in high-temperature always-on surveillance environments. With exclusive IntelliSeek™ technology, WD Purple drives calculate the optimum seek speeds which lowers power consumption, noise and vibration that can damage and cause drives to wear out more quickly. When you invest in a premium surveillance class drive you worry less while enjoying the benefits over a longer period of time.

1 million hours MTBF- Best-in-class reliability for mainstream 3.5-inch form-factor surveillance storage.


Compatibility:

This drive is compatible with any server that accepts 3.5inx1.0in SATA Drive.

Specifications
Model number WD30PURX
Formatted capacity3TB / 3000GB
Form factor3.5-inch LFF
Advanced Format (AF)Yes
RoHS compliantYes
Performance
Data transfer rate (max)
Buffer to host
Host to/from drive (sustained)

6 Gb/s
145 MB/s
Cache (MB)64
Rotational speed (RPM)5400 RPM Class
Reliability/Data Integrity
Load/unload cycles300,000
Non-recoverable read errors per bits read<1 in 1014
Power Management
Average power requirements (W)
Read/Write
Idle
Standby and Sleep

4.4
4.1
0.4
Environmental Specifications
Temperature (°C, on the base casting)
Operating
Non-operating

0 to 65
-40 to 70
Shock (Gs)
Operating (2 ms, read/write)
Operating (2 ms, read)
Non-operating (2 ms)

30
65
250
Acoustics (dBA)
Idle
Seek (average)

23
24
Physical Dimensions
Height (in./mm, max)1.028/26.1
Length (in./mm, max)5.787/147
Width (in./mm, ± .01 in.)4/101.6
Weight (lb/kg, ± 10%)1.40/0.64

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 3 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

3 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
