Western Digital Part #/MPN: WD3200AVJB
DiscTech Item #: WDC-WD3200AVJB-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 320GB
Speed: 7,200RPM
Interface Types: IDE ATA 3.5in
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 61
Average Seek Time: 8.9 / 10.9
Electrical Interface: EIDE Ultra ATA100 100MBps
On-Board Cache: 8MB

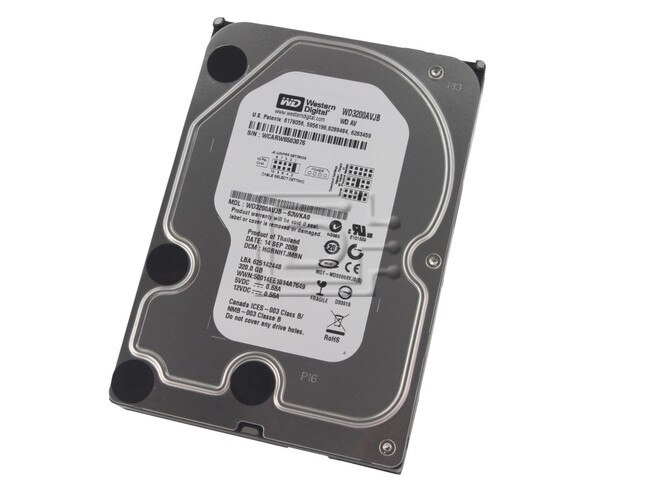

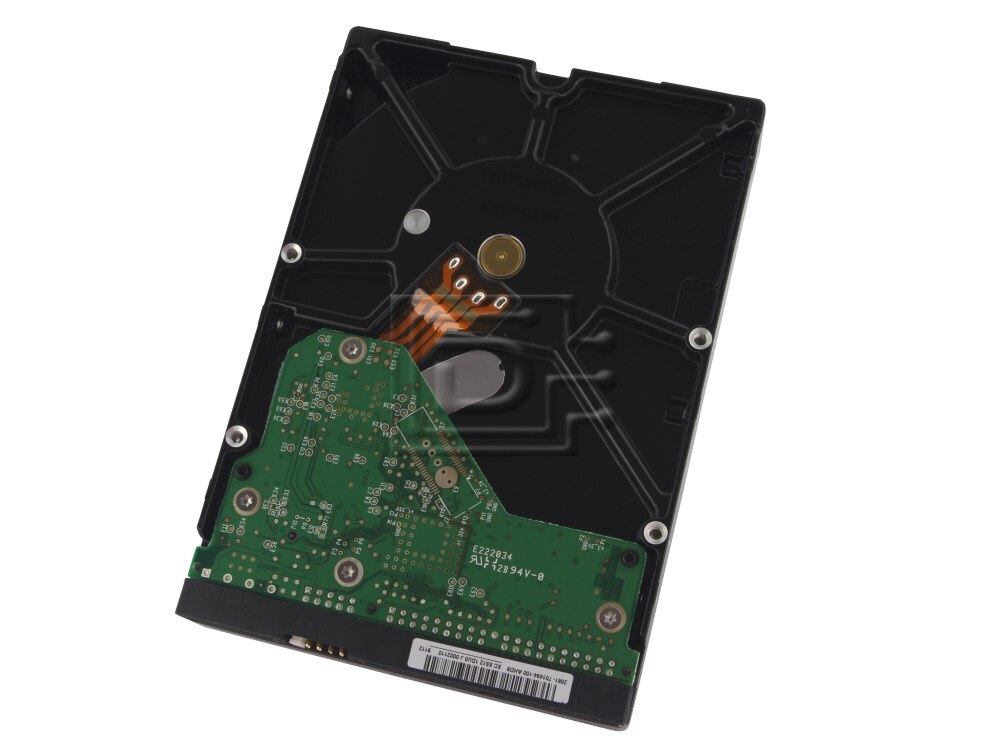

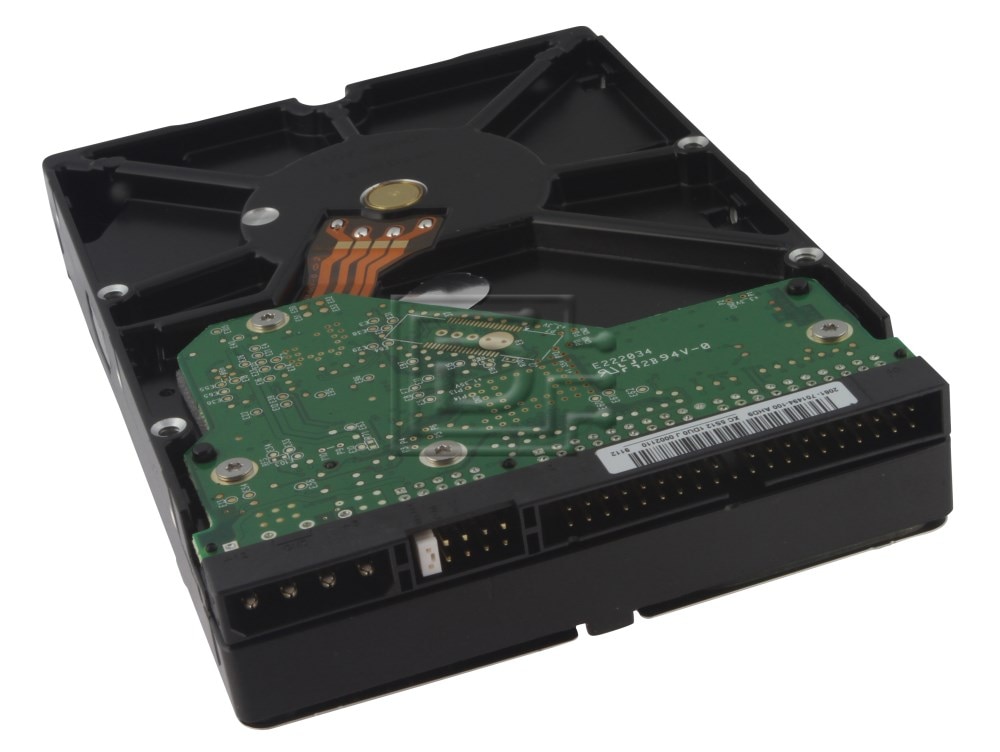

Western Digital Caviar WD3200AVJB 320GB 7.2K 8MB IDE / ATA Hard Drive - Brand New
Key Features
- RAID-specific time-limited error recovery improves compatibility with RAID adapters, and prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop hard drives.
- 1 million hours MTBF meets enterprise-class reliability standards.
- Backed by an industry-leading five-year warranty.
- 8 MB cache provides a higher percentage of cache hits and significantly faster time to data than industry-standard 2 MB versions
Compatibility:
This drive is compatible with any server that accepts 3.5inch x 1inch (LFF) 40-pin EIDE hard drives.
| Specifications | |
|---|---|
| Model | WD3200AVJB |
| Physical Specifications | |
| Capacity | 320GB |
| Interface | 40-pin EIDE |
| Number of Disks | 3 |
| Data Surfaces | 6 |
| Bytes per Sector | 512 |
| User Sectors per Drive | 625,142,448 |
| Performance Specifications | |
| Average Seek - Read | 8.9 ms average |
| Average Seek - Write | |
| Track-to-Track Seek | |
| Full Stroke Seek | |
| Index Pulse Period | |
| Average Latency | |
| Rotational Speed | |
| Data Transfer Rate (maximum) - Buffer to Disk | 61 MB/s sustained |
| Interleave | 1:1 |
| Buffer Size | 8 MB |
| Error Rate - Unrecoverable | <1 in 1014 bits read |
| Physical Dimensions | |
| Height | 1.028 in. (26.1 mm) |
| Width | 4.00 in. (101.6 mm) |
| Length | 5.787 in. (147.0 mm) |
| Weight | 1.32 pounds (0.60 kg) |
| Electrical Specifications | |
| Spinup - 12V/5V | 1.8A/320mA |
| Read/Write - 12V/5V | 460mA/440mA |
| Seek - 12V/5V | 600mA/430mA |
| Idle - 12V/5V | 450mA/420mA |
| Standby - 12V/5V | 20.75mA/75mA |
| Sleep - 12V/5V | 20.75mA/75mA |
| Power Average | |
| - Spinup | 17.5W |
| - Read/Write | 7.75W |
| - Seek | 9.5W |
| - Idle | 7.5W |
| - Standby | 0.6W |
| - Sleep | 0.6W |
| Environmental Specifications | |
| Shock | |
| - Operating (write) | 30G, 2 ms |
| - Operating (read) | 65G, 2 ms |
| - Non-operating (2 ms) | 250G (3-platter) |
| Vibration | |
| - Operating Linear: | 20-300 Hz, 0.75G (0 to peak) |
| - Operating Random: | 10-300 Hz, 0.004 g2 /Hz |
| - Non-operating (double amplitude) | 5-20 Hz, 0.195 inches |
| - Non-operating (0 to peak) | 20-500 Hz, 4.0G |
| Temperature and Humidity | |
| - Operating ambient temperature | 5°C to 55°C (41°F to 131°F) |
| - Humidity | 5-95% RH non-condensing |
| - Non-operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Acoustics 2-Platter/3-Platter | |
| - Idle Mode (Avg. dBA) | 26/28 |
| - Performance Seek Mode (Avg. dBA) | 31/33 |
| - Quiet Seek Mode (Avg. dBA) | 27/29 |
| - RoHS Compliant | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
