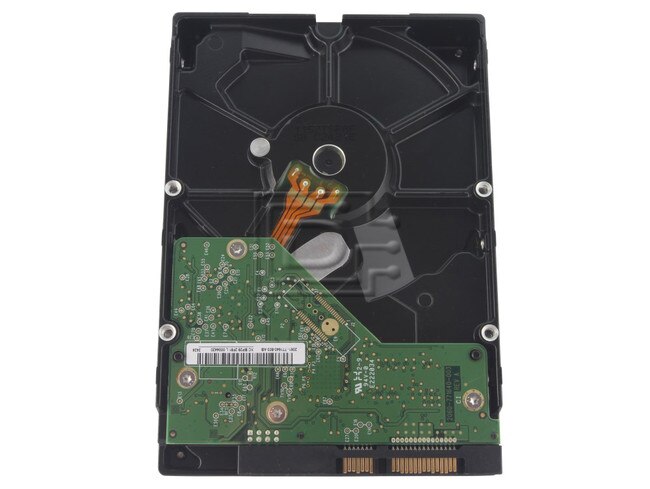

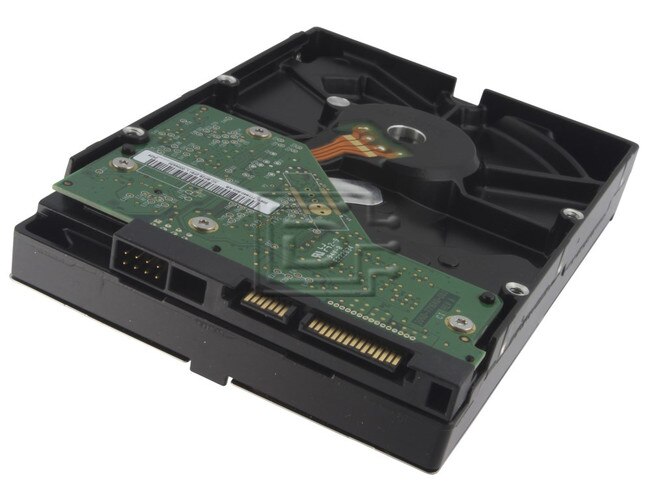

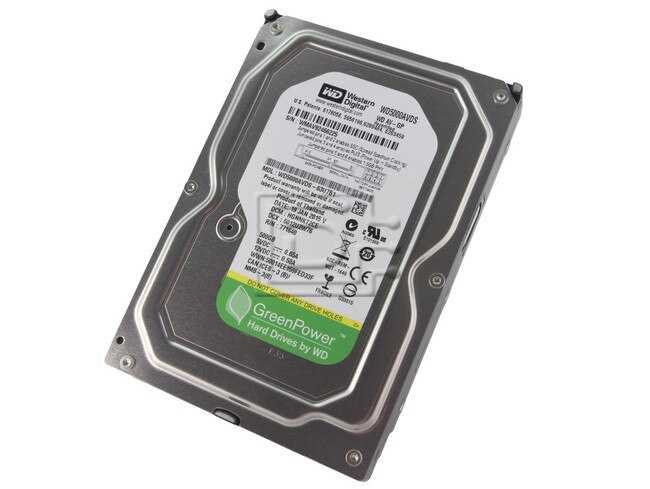

Western Digital WD5000AVDS 500GB 3.5" SATA Drive

Western Digital WD5000AVDS SATA Hard Drive Image 1 image
  • Factory Refurbished
    Condition Levels Explained

    The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$39.00

Capacity:500GB
Speed:5.4K RPM
Interface Types:SATA
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SATA 300 - 3Gbps
RAM:32MB

Description

Western Digital WD5000AVDS 500GB 3.5" 3Gbps 32MB Cache IntelliPower WD AV-GP SATA HDD - Factory Recertified

Western Digital WD5000AVDS 500GB 3.5" 3.0 Gbps IntelliPower WD AV Serial Advanced Technology Attachment Hard Disk Drive 32MB cache

WD AV-GP SATA hard drives store more hi-def audio and video than ever before. They are optimized with SilkStream™ technology to capture data from up to 16 simultaneous HD video streams. With 24x7 operation, low temperature, and best-in-class reliability, WD AV hard drives are ideal for DVR/PVR and IPTV applications.

Product Features

Highest Capacity for Audio/Video Storage - WD AV SATA drives now offer unrivaled storage capacity perfect for today’s storage intensive applications.

  • 24x7 Reliability – These drives are designed to last in high temperature always-on streaming digital audio/video environments such as PVR/DVR and IPTV systems.
  • Low Capacity Surveillance – WD AV drives offer 500GB and lower capacities suitable for low profile entry level surveillance systems requiring reliability in always on environments.
    • Reduced Power Consumption – WD AV drives consume less power up to 40 percent compared to 7200 RPM hard drives. Lower power means less heat and greater reliability.
  • SilkStream – Optimized for smooth, continuous digital video playback of up to 16 simultaneous HD streams. SilkStream is compatible with the ATA streaming command set so CE customers can use standard streaming management and error recovery options.
  • IntelliSeek™ - Calculates optimum seek speeds to lower power consumption, noise, and vibration.
  • IntelliPower™ - A fine-tuned balance of spin speed, transfer rate, and caching algorithms designed to deliver both significant power savings and solid performance.
  • Advanced Format (AF) Technology adopted by WD and other drive manufacturers as one of multiple ways to continue growing hard drive capacities. AF is more efficient media format that enables increased densities.
  • Quiet – Noise levels have been minimized to less than one sone – virtually below the threshold of human hearing.

    • Compatibility:

    This drive is compatible with any server that accepts 3.5" x 1.0" (LFF Hard Drive) SATA drives.

    Specifications

    Specifications
    Model NumberWD5000AVDS
    Formatted Capacity500GB/500,107MB
    User Sectors Per Drive976,773,168
    Form Factor3.5 Inch
    Advanced Formant (AF)Yes
    RoHS CompliantYes
    Performance
    Data Transfer Rate (MAX) Buffer to Host3 Gb/s
    Host To/From Drive (Sustained)130 MB/s
    Cache (MB)8
    Rotational Speed (RPM)IntelliPower
    Reliability/Data Integrity
    Load/Unload Cycles300,000
    Non-Recoverable Read Errors Per Bits Read<10 in 10
    Power Management
    Average Read/Write Power (W)3.7
    Average Idle Power (W)2.6
    Average Standby and Sleep Power (W)0.4
    Environmental Specifications
    Operating Temperature °C0 to 70
    Non-Operating Temperature °C-40 to 70
    Shock (Gs) Operating(2 ms, read/write)30
    Shock (Gs) Operating(2 ms, read)65
    Shock (Gs) Non-Operating (2 ms)350
    Acoustic Idle (dBA)21
    Acoustiv Seek (dBA) (Average)22
    Physical Dimensions
    Height (in/mm)1.028/26.1
    Width (in/mm)5.787/147
    Depth (in/mm)4/101.6
    Weight (lb/g)0.99/450
    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 1.8 lb

    Warranty: 1 Year DiscTech

    Condition

    Factory Refurbished

    Warranty

    1 Year DiscTech Warranty
