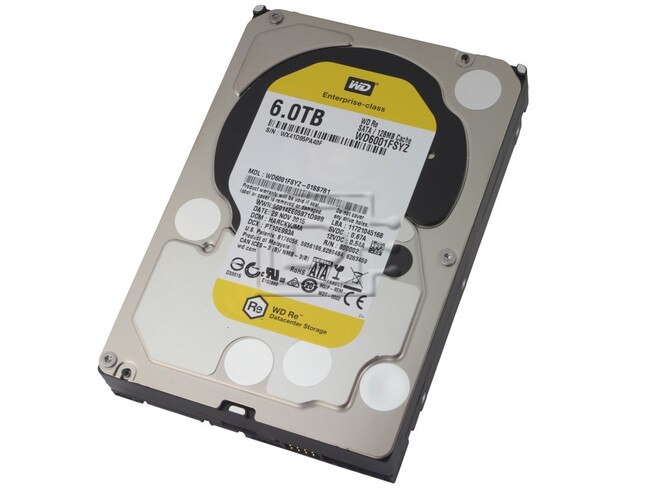

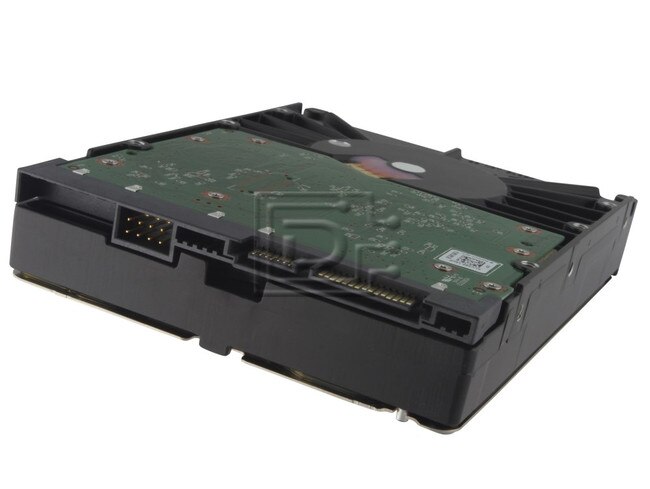

Western Digital WD6001FSYZ 6000GB SATA Hard Drive

(0) No Reviews Yet

Western Digital Part #/MPN: WD6001FSYZ

DiscTech Item #: WDC-WD6001FSYZ-BN-5Y


$385.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$385.00

Enterprise Grade

Capacity: 6TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 225

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 128MB

Western Digital Re WD6001FSYZ 6TB 3.5in 6Gbps 7.2K RPM Enterprise SATA HDD - Brand New

Western Digital Re WD6001FSYZ 6000GB 3.5" 6.0 Gbps 7200 RPM Enterprise Serial ATA Hard Disk Drive - Brand New

WD Re™ Datacenter Capacity HDD

Performance-optimized high-capacity storage for high-intensity applications.
With advanced technology that delivers consistent high performance in a multitude of applications, and with up to ten times the workload capability of desktop drives, the WD Re drive is the workhorse of WD’s datacenter portfolio. The WD Re drive is perfect for high-availability storage arrays that demand a robust storage device, and the drive’s high performance, capacity and reliability make it ideal for data warehousing/mining and high-performance computing. The WD Re is available with a SATA interface for maximum flexibility and compatibility.

Product Benefits

High capacity nearline drive
Massive capacities up to 6 TB suit even the most demanding datacenter, enterprise server, or cloud storage needs.

Designed for high-intensity applications
Designed to handle workloads up to 550 TB per year – among the highest workload capability of any 3.5-inch hard drive – delivering both performance and reliability to any datacenter environment.

Designed for quality and reliability
With up to 1.2 million hour MTBF, this high performance drive delivers durability and reliability for 24x7x365 operation in the most demanding storage environments.

Vibration Protection
Enhanced RAFF™ technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over desktop drives.

Dual actuator technology
A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy

StableTrac™
The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations.

Multi-axis shock sensor
Automatically detects the subtlest shock events and compensates to protect the data.

RAID-specific, time-limited error recovery (TLER)
Reduces drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.

NoTouch™ ramp load technology
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

Thermal extended burn-in test
Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.

Dynamic fly height technology
Each read-write head’s fly height is adjusted in real time for optimum reliability.


Compatibility:

This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.

SPECIFICATIONS
Model NumberWD6001FSYZ
Specification512 Emulation
InterfaceSATA 6 Gb/s
Formatted Capacity6TB/6000GB
512n/512e User Sector per Drive11,721,045,168
4Kn User Sector per Drive1,465,130,646
Native Command QueuingYes
Form Factor3.5-inch
RoHS CompliantYes
PERFORMANCE
Data Transfer Rate (Max)
- Buffer to Host
- Host to/from Drive (Sustained)

6 Gb/s
225 MB/s
Cache (MB)128
Rotational Speed (RPM)7200
RELIABILITY/DATA INTEGRITY
Load/Unload Cycles600,000
Non-Recoverable Read Errors per Bits Read<10 in 10e15
MTBF (hours)1,200,000
AFR (%)0.73
POWER MANAGEMENT
Average Power Requirements (W)
- Sequential Read
- Sequential Write
- Random Read/Write
- Idle

9.4
9.2
10.6
7.5
ENVIRONMENTAL SPECIFICATIONS
Temperature (°C)
- Operating
- Non-Operating

5 to 60
-40 to 70
Shock (Gs)
- Operating (2 ms, Read/Write)
- Operating (2 ms, Read)
- Non-Operating (2 ms)

30
65
300
Acoustics (dBA)
- Idle
- Seek (average)

31
34
PHYSICAL DIMENSIONS
Height (in/mm, max)1.028/26.1
Length (in/mm, max)5.787/147
Width (in./mm, ± .01 in.)4/101.6
Weight (lb./kg, ± 10%)1.58/0.72

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 5 Year Manufacturer
