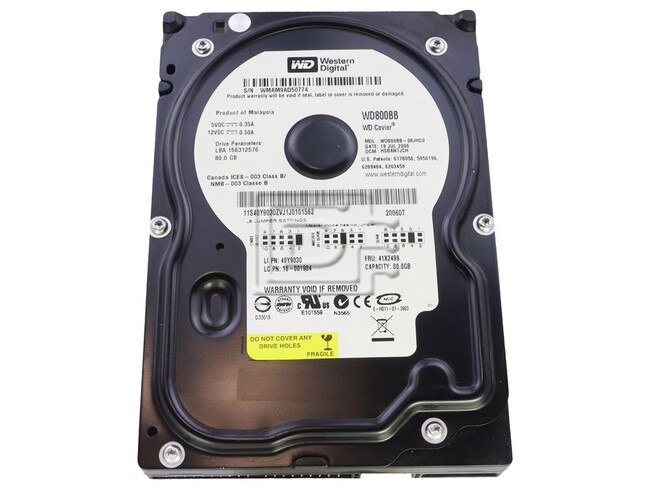

Western Digital WD800BB 80GB Ultra ATA100 Hard Drive

Western Digital Part #/MPN: WD800BB

DiscTech Item #: WDC-WD800BB-RF-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Capacity: 80GB

Speed: 7,200RPM

Interface Types: IDE ATA 3.5in

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 8.9 / 2.0

Electrical Interface: EIDE Ultra ATA100 100MBps

On-Board Cache: 2MB

Western Digital Caviar WD800BB 80GB 7200 RPM EIDE Ultra ATA100 Desktop Hard Drive - Refurbished

Western Digital Caviar WD800BB 80GB 7200 RPM EIDE Ultra ATA100 Desktop Hard Drive - Refurbished

WD Caviar SATA/EIDE hard drives are offered in capacities up to 250 GB, with performance geared to advanced and mainstream desktop personal computers. WD Caviar drives are built to the highest standards of quality and reliability because we understand the importance of data that is entrusted to our products.


This drive is compatible with any desktop computer that accepts 3.5"x1" (LFF) EIDE Ultra-ATA hard drives.

Drive Specifications
Model NumberWD800BB
Width / Height3.5-inch/1-inch
Rotational Speed7200 RPM
Formatted capacity180,026 MB
User sectors per drive156,301,488
Actuator latch/auto parkYes
Bytes per sector (STD)512
Dedicated landing siteYes
RoHS compliantYes
Performance Specifications
Average latency
  • Read - Adaptive
  • Write - Yes
Data transfer rate (buffer to host)
  • Mode 5 Ultra ATA - 100 MB/s
  • Mode 4 Ultra ATA - 66.6 MB/s
  • Mode 2 Ultra ATA - 33.3 MB/s
  • Mode 2 DMA - 16.6 MB/s
  • Mode 4 PIO - 16.6 MB/s
Drive ready time7.0 sec (average)
Error rate (non-recoverable)<1 in 1014 bits read
LBA supportYes
Seek time
  • Full stroke read - 21 ms (average)
  • Read - 8.9 ms (average)
  • Track-to-track - 2.0 ms (average)
Start/stop cycles50,000 minimum

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 04F797 4F797

Weight: 1.8 lb
