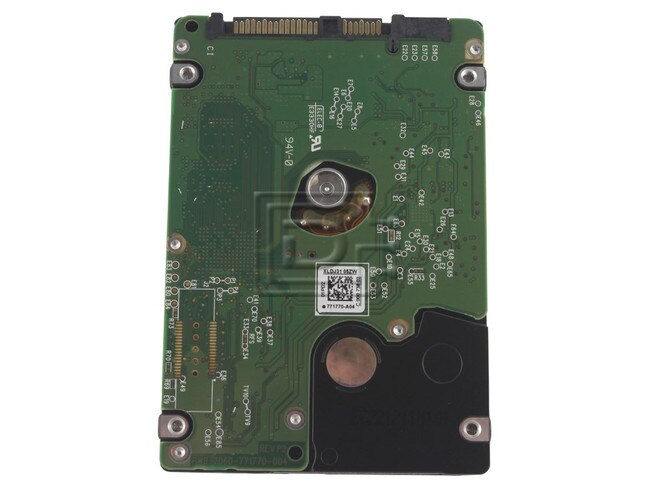

Western Digital WD9001BKHG 900GB 10K SAS 2.5" Hard Drive
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 900GB |
| Speed: | 10K RPM |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 32MB |
Description
Western Digital WD XE WD9001BKHG 900GB 10K SAS 2.5" Hard Drive- Brand New
Western Digital WD9001BKHG WD XE 900GB 10K SAS 2.5 Hard Drive-Brand New
WD S25 SAS hard drives provide up to 900 GB of high performance storage suitable for both enterprise server and enterprise storage applications. The ultra-fast 6 Gb/s SAS interface enables optimum data reliability, availability, and scalability. In an environment where space and power are limited, the WD S25 drives are an effective solution for high performance computing solutions such as power-constrained data centers, database transaction processing, and rack, tower, and blade servers.
PNs: WD9001BKHG-02D22V1
Compatibility
This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives
Specifications
| Specifications | |
|---|---|
| Model number | WD9001BKHG |
| Model Name | S25 |
| Formatted Capacity | 900 Gbytes |
| Rotational Speed | 10,000 rpm |
| Default Buffer (cache) Size | 32 Mbytes |
| Sectors per drive | 1,758,174,768 |
| ROHS Compliant | Yes |
| Performance | |
| External (I/O) Transfer Rate (max) | 204 MBytes/sec |
| Physical | |
| Form Factor(width) | 2.75-inch |
| Form Factor(height) | .59-inch |
| Height | 15 mm |
| Width | 69.85 mm |
| Length | 100 mm |
| Weight | 0.23 kg |
| Electrical | |
| Power Dissipation Read/Write | .7.80 watts |
| Environmental | |
| Max Operating Shock (2-msec) | 65 Gs |
| Max Nonoperating Shock (2-msec) | 300 Gs |
| Operating Vibration (max) | .5 Gs |
| Nonoperating Vibration (max) | 2.4 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustical | |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
| Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: WD9001BKHG-02D22V1
Weight: 1 lb
Warranty: 5 Year Manufacturer
