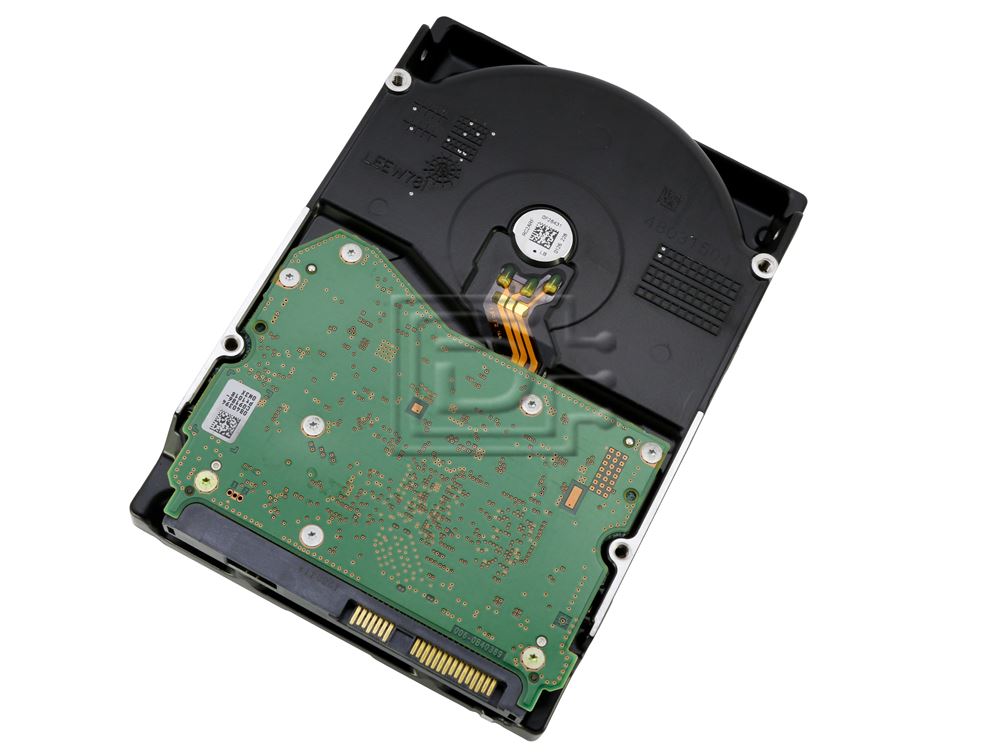

Western Digital WUH721414AL5201 / HGST 0F31051 14TB 512e SED SAS HDD

Hitachi Part #/MPN: 0F31051

DiscTech Item #: HIT-0F31051-RF-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Enterprise Grade

Capacity: 14TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 255/267

Average Seek Time: 4.16

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 512MB

Western Digital / HGST 0F31051 / WUH721414AL5201 14TB 3.5-Inch 12Gbps 7.2K RPM Ultrastar DC HC530 512e SED TCG SAS Hard Drive - Refurbished

Western Digital / HGST 0F31051 / WUH721414AL5201 14TB / 14000GB 3.5" 12.0 Gb/s 7200 RPM Ultrastar DC HC530 512e / 512 Emulation SED / Self Encrypting TCG / Trusted Computing Group Encryption SAS / Serial Attached SCSI HDD / Hard Drive - Refurbished

Ultrastar® DC HC530

Driving Up Capacity and Driving Down TCO for Cloud and Enterprise Data Centers
The breadth and depth of big data is driving the universal need for higher capacities across a broad spectrum of applications and workloads. Laying the foundation for a worryfree data center, Western Digital delivers capacity to conquer the data explosion–the 14TB Ultrastar® DC HC530 hard drive. Built using HelioSeal technology, the industry’s only fifthgeneration helium platform and the basis for our high-capacity DC HC500 series, Ultrastar DC HC530 was designed for public and private cloud environments where storage density, Watts/TB and $/TB are critical parameters for creating the most cost-efficient infrastructure. HelioSeal technology is key to achieving higher drive capacities, higher reliability ratings and extreme power efficiency for lower levels of total cost of ownership (TCO) for cloud and enterprise customers.

HelioSeal Technology Helps Solve Challenges Facing Next Generation Data Centers
Data centers are facing growing pressures. Data volume is expanding, operating costs are rising, yet budgets remain flat. HelioSeal technology enables Ultrastar DC HC530 to deliver one of the lowest power profiles in the industry, helping data center architects meet eco-environmental goals and requirements. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC530 is based on conventional magnetic recording (CMR) technology for drop-in simplicity in enterprise and cloud data centers. Features like TDMR technology (two-dimensional magnetic recording) and a third-generation dualstage microactuator work together to enhance head-positioning accuracy and deliver better performance, data integrity and overall drive reliability, critical in multi-drive environments where operational vibration is present. A choice of 6Gb/s SATA or 12Gb/s SAS interface enables easy integration into high performance data centers. Trust Western Digital and the Ultrastar DC HC530 hard drive to deliver more capacity, more efficiency, more reliability and more value to your data center.

Data Durability and Data Security Features to Support Compliance and Privacy Requirements
As drive capacity grows beyond single-digit TBs, object storage systems with erasure coding generally provide better data durability compared to RAID systems, given its tolerance for simultaneous error conditions. The Ultrastar DC HC530 is ideal for object storage implementations with its massive capacity and an unbeaten reliability rating. Compliance and privacy requirements drive the need for increased data security. The Ultrastar DC HC530 offers security and encryption options to help protect data from unauthorized use, including TCG SAS models.


  • 14TB capacity1 in a standard 3.5-inch form factor
  • CMR technology works seamlessly in capacity enterprise applications & environments
  • Reliable, field-proven, 5th generation design
  • HelioSeal® design delivers outstanding power efficiency (Watts/TB)
  • TDMR and improved dual-stage microactuator provide optimal head positioning and rotational vibration robustness
  • 2.5M hours MTBF rating & 5-year limited warranty
  • Self-Encrypting Drive (TCG SED) options


  • Cloud & Hyperscale storage
  • Massive scale-out (MSO), high-density data centers
  • Distributed File Systems
  • Bulk storage using Object storage solutions like CEPH™ and OpenStack Swift
  • Primary and secondary storage for Apache Hadoop® for Big Data Analytics
  • Surveillance analytics


  • Features / Function
    • 14TB
  • Benefits
    • Provides 75% more capacity than 8TB air drives

Power Efficiency

  • Features / Function
    • Ultra-low Wattts per terabyte (W/TB)
  • Benefits
    • 56% lower idle W/TB than 8TB Ultrastar air-filled drives


  • Features / Function
    • TDMR & Dual-stage microactuator technology
    • Rotational Vibration Safeguard (RVS)
    • Media cache plus architecture
    • SATA 6Gb/s & SAS 12Gb/s
    • 512MB cache buffer
  • Benefits
    • More accurate head positioning, especially in multi-drive environments, for better performance data integrity and reliability
    • Maintains drive performance in high rotational vibration environments and multi-drive systems
    • Better random write performance
    • Provides compatibility with high-performance data centers
    • Improves response time and data management


  • Features / Function
    • Dual Safe, RSA-signed firmware
    • 2.5M hours MTBF and 0.35% AFR
  • Benefits
    • Retains previous firmware version while updating safely, verified with an RSA signature
    • No higher reliability rating for Capacity Enterprise HDD in the industry for fewer failures/less service needs
    • Unbeaten for enterprise-class hard drives

Data Security

  • Features / Function
    • Encryption options on SAS models
  • Benefits
    • Hardware-based encryption helps protect data from unauthorized use (TCG SAS options)


This drive is compatible with servers and arrays that accept 3.5inx1.0in LFF SAS drives

Ultrastar® DC HC530
Model Number0F31051
Part NumberWUH721414AL5201
Data Security ModeTrusted Computing Group Encryption (TCG)
Interface SAS 12Gbps
Capacity (GB)14TB / 14000GB
Sector size (variable, bytes/sector)512e: 512. 520, 528
Areal Density (Gbits/sq. in, max)904
Data buffer (MB)512
Rotational speed (RPM) 7200
Latency average (ms)4.16
Interface transfer rate (MB/s, max)1200
Sustained transfer rate (MB/s, typical)255/267
Seek time (read/write, ms, typical range)7.5
Error rate (non-recoverable, bits read) 1 in 1015
Load/Unload cycles (at 40oC)600,000
Availability (hrs/day x days/wk)24x7
MTBF (M hours)2.5
Annualized Failure Rate (AFR)0.35%
Idle/Operating (Bels, typical) 2.0/3.6
Requirement+5 VDC
+12 VDC
Operating, (W)8.5
Idle (W)5.9
Power consumption efficiency at idle (W/TB)(Watts/TB)
  • 0.42
  • (Watts/GB)
  • 0.00042
  • Physical size
    z-height (mm) 26.1
    Dimensions (width x depth, mm) 101.6 (+/-0.25) x 147
    Weight (g, max)690
    Environmental (operating)
    Ambient temperature5° to 60° C
    Shock (half-sine wave 2ms, G) 70
    Vibration (G RMS 5 to 500 Hz)0.67, all axes
    Environmental (non-operating)
    Ambient temperature -40° to 70° C
    Shock (half-sine wave, 2ms, G) 300 (2ms) / 150 (11mx)
    Vibration (G RMS, 2 to 200 Hz)1.04 all axes

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: WUH721414AL5201

    Weight: 1.8 lb

    Warranty: 1 Year DiscTech
