Western Digital Part #/MPN: WD20EURS
DiscTech Item #: WDC-WD20EURS-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 2TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 130 MBps
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 64MB

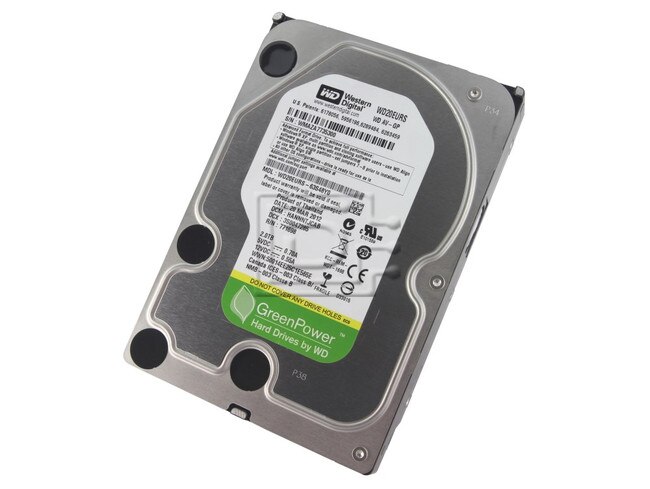

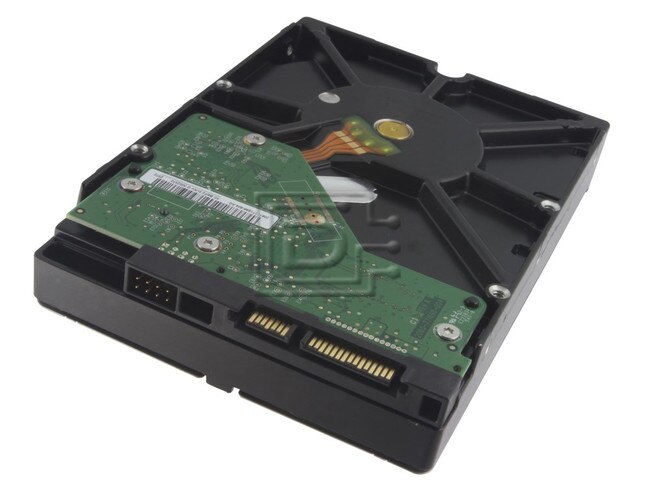

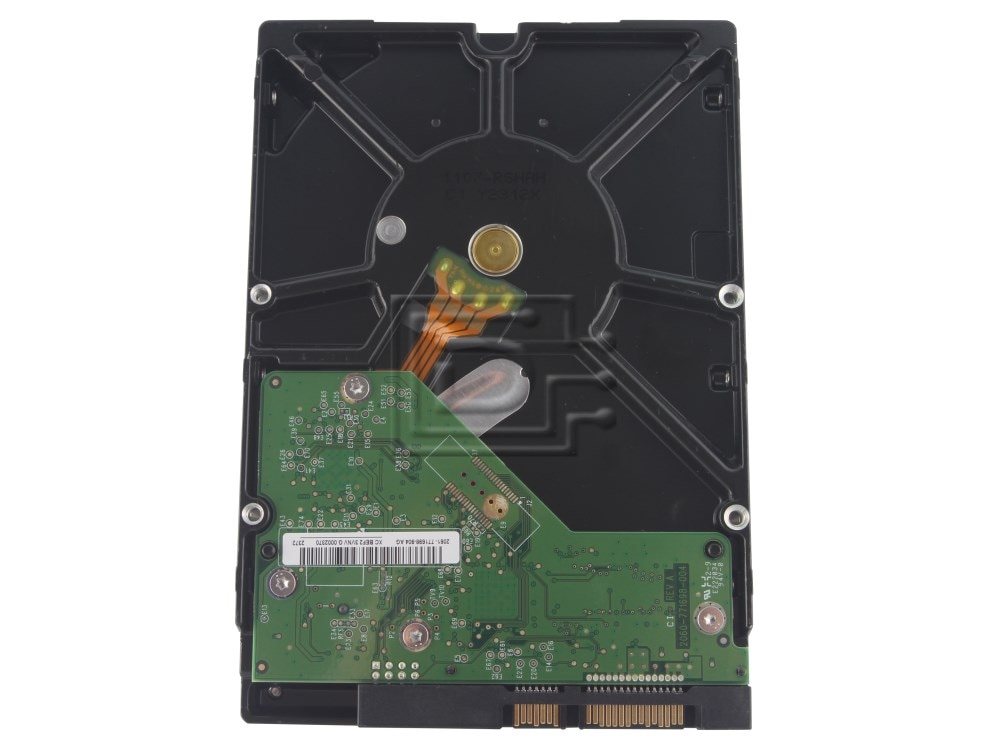

Western Digital AV-GP WD20EURS 2000GB / 2TB 7.2K SATA 3.5" Hard Drive - New Pull
WD AV-GP SATA hard drives store more hi-def audio and video than ever before – up to 3 TB. They are optimized with SilkStream™ technology to capture data from up to 12 simultaneous HD video streams. And with 24x7 operation, low temperature, and best-in-class reliability, WD AV-GP hard drives are ideal for DVR/PVR and video surveillance applications.
Compatibility:
Tested for compatibility in a broad range of AV products including set top boxes, DVR/PVR, and mainstream video surveillance systems. For drives with greater than 2.19 TB capacity, compatibility is selective to PVRs and surveillance systems that are compatible with hard drives exceeding 2.19 TB.
| Performance Specifications | ||
Rotational Speed | IntelliPower * | |
Buffer Size | 64 MB | |
Acoustics (Sone) | < 1 | |
| ||
Transfer Rates | ||
Buffer To Host (Serial ATA) | 3 Gb/s (Max) | |
Host to/from drive (Sustained) | 130 MB/s (Max) | |
Physical Specifications | ||
Formatted Capacity | 2,000,398 MB | |
Capacity | 2 TB | |
Interface | SATA 3 Gb/s | |
User Sectors Per Drive | 3,907,029,168 | |
| ||
| Physical Dimensions | ||
English | ||
Height | 1.028 Inches | |
Depth | 5.787 Inches | |
Width | 4.00 Inches | |
Weight | 1.40 Pounds | |
| ||
Metric | ||
Height | 26.1 mm | |
Depth | 147 mm | |
Width | 101.6 mm | |
Weight | 0.64 kg | |
| ||
| Environmental Specifications | ||
Shock | ||
Operating Shock (Read) | 65G, 2 ms | |
Non-operating Shock | 250G, 2 ms | |
| ||
Acoustics | ||
Idle Mode | 24 dBA (average) | |
Seek Mode 3 | 25 dBA (average) | |
| ||
Temperature (English) | ||
Operating | 32° F to 140° F | |
Non-operating | -40° F to 158° F | |
| ||
Temperature (Metric) | ||
Operating | -0° C to 60° C | |
Non-operating | -40° C to 70° C | |
| ||
| Electrical Specifications | ||
Current Requirements | ||
Power Dissipation | ||
4.50 Watts | ||
4.00 Watts | ||
0.70 Watts | ||
0.70 Watts | ||
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
