Western Digital Part #/MPN: WD5003ABYX
DiscTech Item #: WDC-WD5003ABYX-RF-OE
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 128
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 64MB

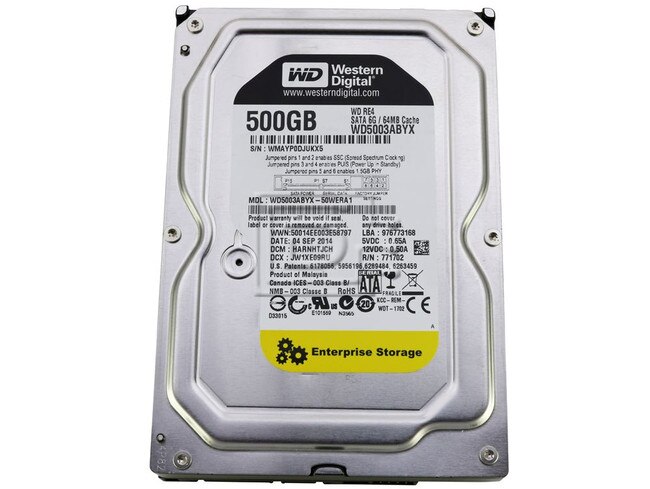

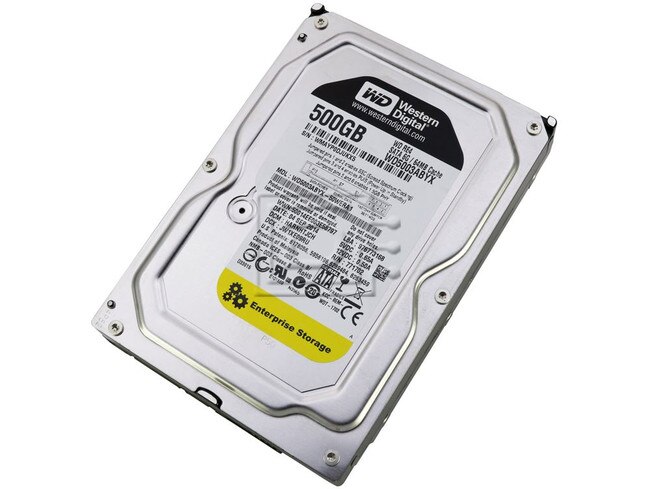

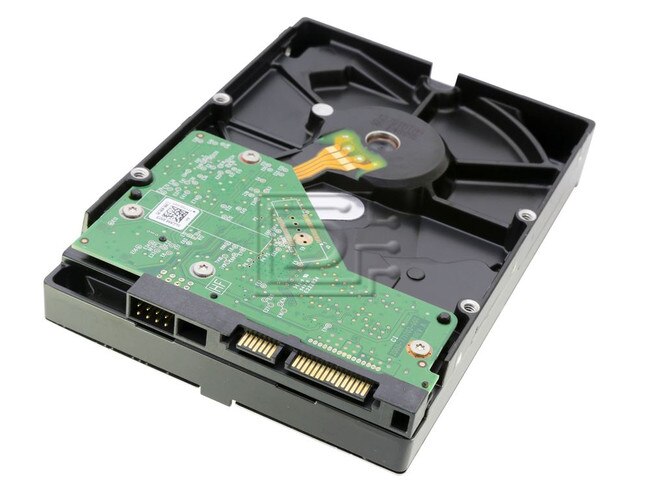

Western Digital Caviar RE4 WD5003ABYX 500GB 7.2K Enterprise SATA Hard Drive - Refurbished
WD RE4 Enterprise SATA drives are available with up to 2 TB of cavernous capacity.
With double the processing power, WD RE4 boasts the highest performance of any drive in the WD RE family. RAFF™ Enhanced RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over the previous generation of drives.
Dual actuator technology:
A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy. (2 TB only)
The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations.
Calculates optimum seek speeds to lower power consumption, noise, and vibration. Multi-axis shock sensor Automatically detects the subtlest shock events and compensates to protect the data.
RAID-specific, time-limited error recovery (TLER)
Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives. NoTouch™ ramp load technology The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Thermal extended burn-in test:
Each drive is put through extended burnin testing with thermal cycling to ensure reliable operation.
Third generation dynamic fly height: Each read-write head’s fly height is adjusted in real time for optimum reliability.
With 1.2 million hours MTBF (tested at 100% duty cycle), these drives have the highest available reliability rating on a high-capacity drive.
This enterprise hard drive will work with any server or storage array that supports SATA hard drives.
|Formatted Capacity||500 Gbytes|
|Rotational Speed||7,200 rpm|
|Default Buffer (cache) Size||64 Mbytes|
|External (I/O) Transfer Rate (max)||300 MBytes/sec|
|Average Latency||4.2 msec|
|Height||1.028 in. / 26.1mm|
|Width||4.0 in. / 101.6mm|
|Length||5.787in. / 147mm|
|Electrical Current Requirements|
|Read / Write||6.4 Watts|
|Max Operating Shock (2-msec)||65 Gs|
|Max Nonoperating Shock (2-msec)||350 Gs|
|Operating Vibration (max)||.75 Gs|
|Operating Temperature (max)||60 deg C|
|Operating Temperature (min)||0 deg C|
|Nonoperating Temperature (max)||70 deg C|
|Nonoperating Temperature (min)||-40 deg C|
|Acoustics, Idle (sound power, typ)||28 dBA|
|Permormance seek mode||33|
|Nonrecoverable Read Errors||1 per 10^16 bits read|
Click here to view the manufacturer's item description/brochure
Weight: 1.5 lb
Warranty: 1 Year DiscTech
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
