NVIDIA Part #/MPN: P5000
DiscTech Item #: NVI-P5000-BN-OE
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: PCIe, DVI-D, DisplayPort, VGA
Electrical Interface: PCIe - v3.0 - 16GBps
On-Board Cache: 16GB
NVIDIA Quadro P5000 16GB GDDR5X 00MKC 900-5G413-0100-000 PCIe 3.0 x16 DVI Graphics Card - Brand New
NVIDIA Quadro P5000 Pascal Series 16GB GDDR5X PCIe 3.0 x16 256-bit DVI-D 180W Graphics / Video Card GPU - Brand New
NVIDIA® Quadro® P5000 - UNMATCHED POWER. UNMATCHED CREATIVE FREEDOM.

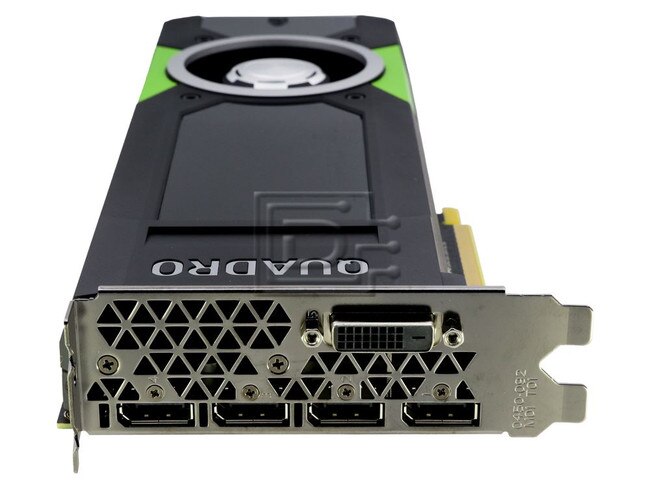

- Four DisplayPort 1.4 Connectors
- DisplayPort with Audio
- VGA Support
- 3D Stereo Support with Stereo Connector
- NVIDIA GPUDirect™ Support
- Quadro Sync II2 Compatibility
- NVIDIA nView® Desktop Management Software Compatibility
- HDCP 2.2 Support
- NVIDIA Mosaic
The NVIDIA Quadro P5000 workstation graphics card, powered by NVIDIA Pascal™ GPU technology, features 16 GB memory capacity and enables an expansive visual workspace with quad display outputs. Work with larger models, complex visual effects and simulations, larger rendering tasks, and more life-like VR experiences in your workflow today and be well prepared for the challenges of tomorrow.
Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
The P5000 features 2560 CUDA cores and 16GB of GDDR5 memory, which allows it to deliver high levels of performance for demanding tasks such as 3D modeling, animation, and virtual reality. It also supports NVIDIA's Quadro Sync II technology, which allows multiple P5000 cards to be synchronized for use in large-scale visualization systems.
The P5000 is typically used in professional workstations for applications such as CAD/CAM, architecture, engineering, and scientific computing. It is also suitable for use in high-end gaming systems, although it is primarily intended for professional use.
Alt. PNs : 699-5G413-0500-100 / 900-5G413-0100-000 / 00MKC / 000MKC / 490-BDNN / VCQP5000-PB
The NVIDIA P5000 graphics card is compatible with a variety of workstation-class systems that meet the card's system requirements, including but not limited to:
|HP Z8 Workstation||HP Z6 Workstation||HP Z4 Workstation|
|Dell Precision 5820 Tower||Dell Precision 7820 Tower||Dell Precision 7920 Tower|
|Lenovo ThinkStation P520||Lenovo ThinkStation P720||Lenovo ThinkStation P920|
|Fujitsu Celsius M770||Fujitsu Celsius R970|
|GPU Memory||16 GB GDDR5X|
|Memory Bandwidth||Up to 288 GB/s|
|NVIDIA CUDA® Cores||2560|
|System Interface||PCI Express 3.0 x16|
|Max Power Consumption||150 W|
|Form Factor||4.4” H × 10.5” L, Dual Slot, Full Height|
|Display Connectors||4x DP 1.4 + DVI-D DL|
|Max Simultaneous Displays||4 direct, 4 DP 1.4 Multi-Stream|
|Max DP 1.4 Resolution||7680 x 4320 @ 30 Hz|
|Max DVI-D DL Resolution||2560 × 1600 @ 60 Hz|
|Graphics APIs||Shader Model 5.1|
|Compute APIs||CUDA, DirectCompute, OpenCL™|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 699-5G413-0500-100 900-5G413-0100-000 00MKC 000MKC 490-BDNN VCQP5000-PB
Weight: 3 lb
Warranty: 1 Year DiscTech
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
