sTec S842E400M2 400GB SFF SAS SSD
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 400GB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Write Intensive / WI |
| Electrical Interface: | SAS-2 6Gbps |
Description

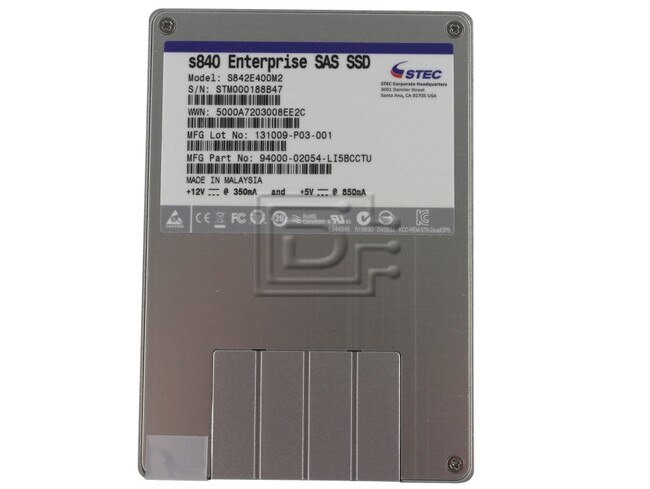

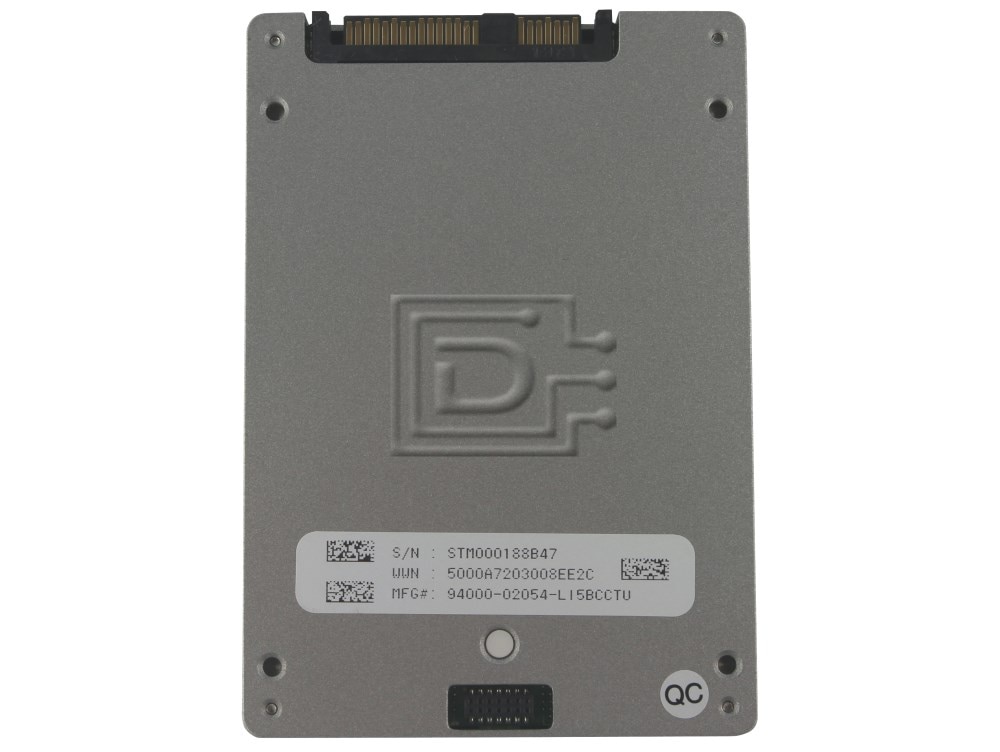

sTec S842E400M2 400GB SFF 2.5inch Enterprise Serial Attached SCSI / SAS Solid State Drive SSD - Brand New
The Ideal SSD for Enterprise and Cloud Infrastructures
The STEC™ s842 Enterprise SAS SSD takes capacity, performance and endurance to the next level. With 2TB capacity–up to 25% more over other SAS SSDs on the market.
s842 SAS solid-state drives deliver the highest levels of performance, capacity and endurance needed in enterprise and cloud data center servers and storage solutions.
*Versions available with unlimited endurance for 800GB/2TB capacities*
Benefits
- Purpose built SSDs supporting enterprise storage and Cloud applications
- Delivers highest capacity possible in a single 2.5" SAS enclosure, taking the user available capacity on a single drive to 2TB
- Optimized for low latency and high performance: delivers >115,000 sustained random IOPS, and throughput >530MB/s
- Outperforms competitive SAS and SATA SSDs while delivering the best application performance for all real-world workloads
- Tuned to deliver highest levels of throughput and low latencies even under RAID5 deployments
- Unprecedented endurance and reliability. Delivering upto 2X the endurance levels seen with competitive SATA or SAS SSDs
Compatibility
This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives
Specifications
| Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Interface | Capacity | 200GB | 400GB | 800GB | 2000GB | ||
| Type | SAS | ||||||
| Transfer Rate | 6Gb/s | ||||||
| Availability | Dual-port | ||||||
| Performance | Sustained Read Throughput | Up to: | 530MB/s1 | 530MB/s | 530MB/s | 530MB/s | |
| Sustained Write Throughput | Up to: | 380MB/s | 380MB/s | 453MB/s | 295MB/s | ||
| Max 100% Read IOPS | Up to: | 120,000 | 120,000 | 118,000 | 113,000 | ||
| Max 100% Write IOPS | Up to: | 110,000 | 110,000 | 63,000 | 103,000 | ||
| Max 100% Random Read IOPS | (4K) | 84,000 | 84,000 | 85,000 | 65,000 | ||
| Max 100% Random Write IOPS | (4K) | 28,500 | 34,000 | 17,500 | 6,000 | ||
| Physical | Form Factor | 2.5-inch | |||||
| Dimensions (mm) | 100.2mm(L) x 69.8mm(W) x 15.0mm(H) | ||||||
| Weight | <0.4kg | ||||||
| Endurance | Drive Writes Per Day for 5 Years | 15x | 15x | 10x* | 10x* | ||
| (100% Random 4KB/8KB write workload)†† | |||||||
| Environmental | Operational Temperature | 0° to 60°C (Commercial) | |||||
1The drive saturates the I/O bus
†† (DWPD at aligned block size in product specifications)
*Unlimited version available **1TB = 1000GB
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.5 lb
Warranty: 5 Year Manufacturer
Condition
The product is brand new.
Warranty
5 Year Manufacturer Warranty
