sTec Part #/MPN: S842E800M2
DiscTech Item #: STE-S842E800M2-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:30Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 530/440
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Write Intensive

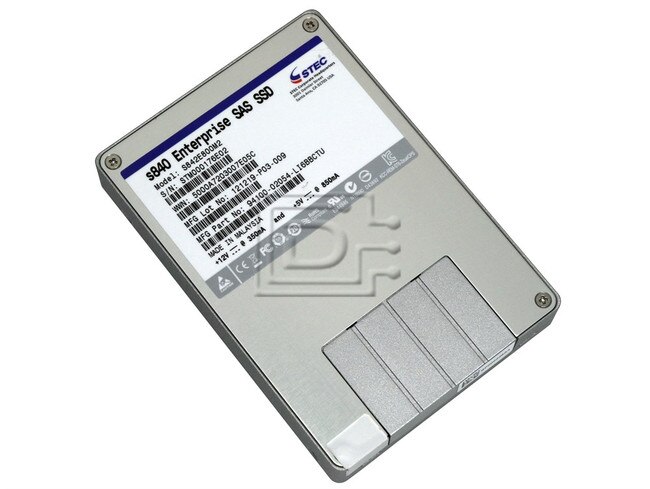

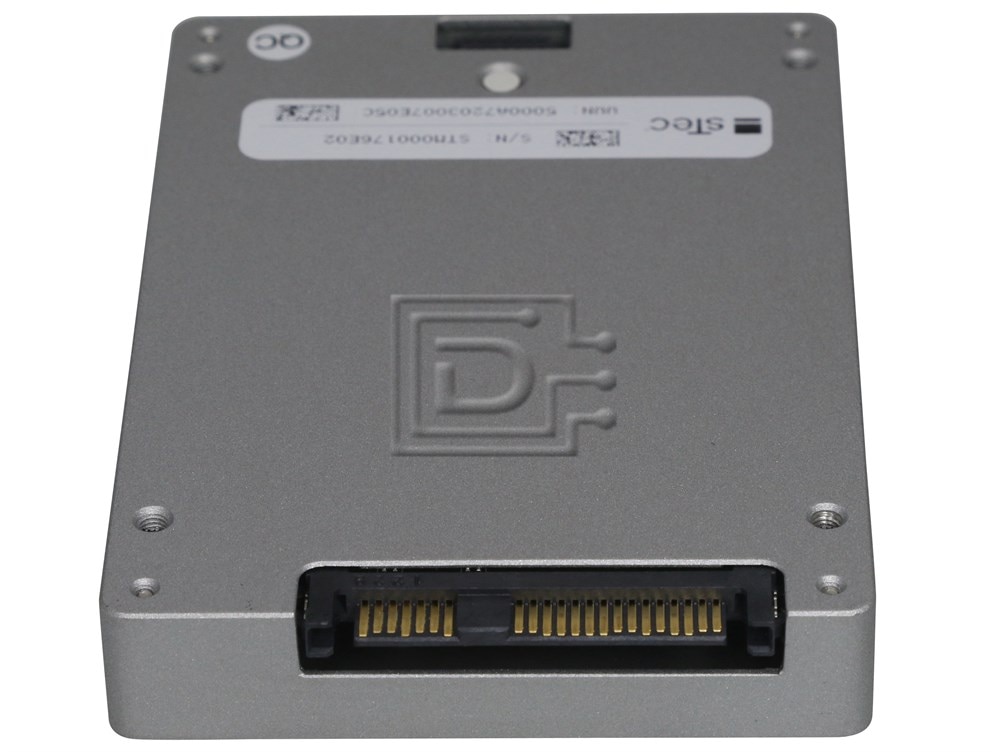

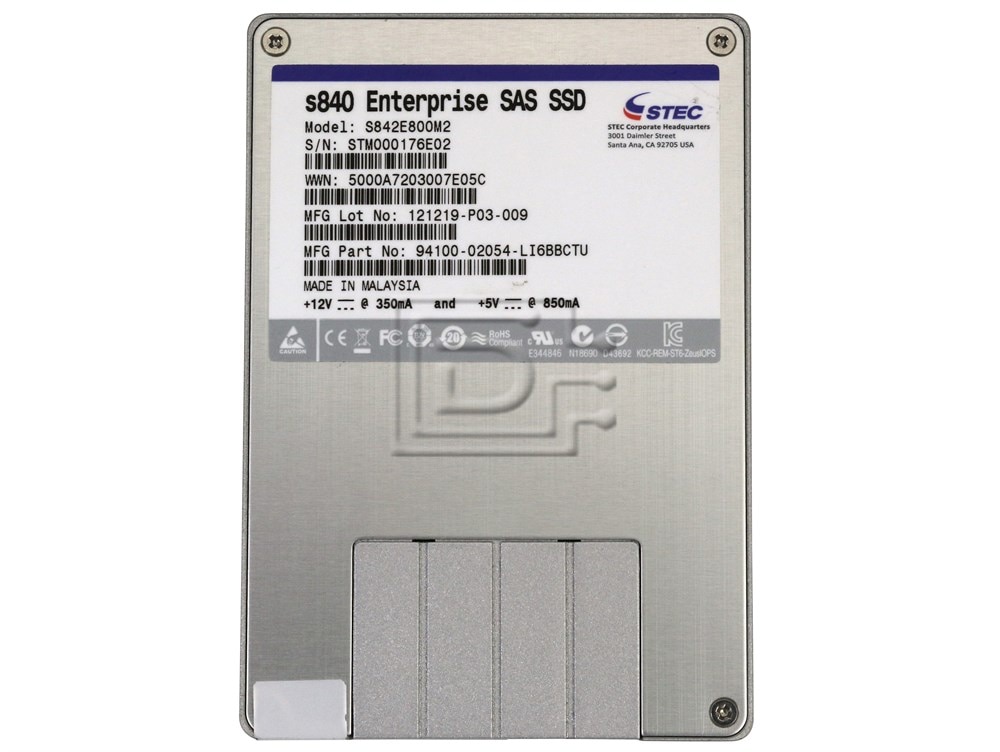

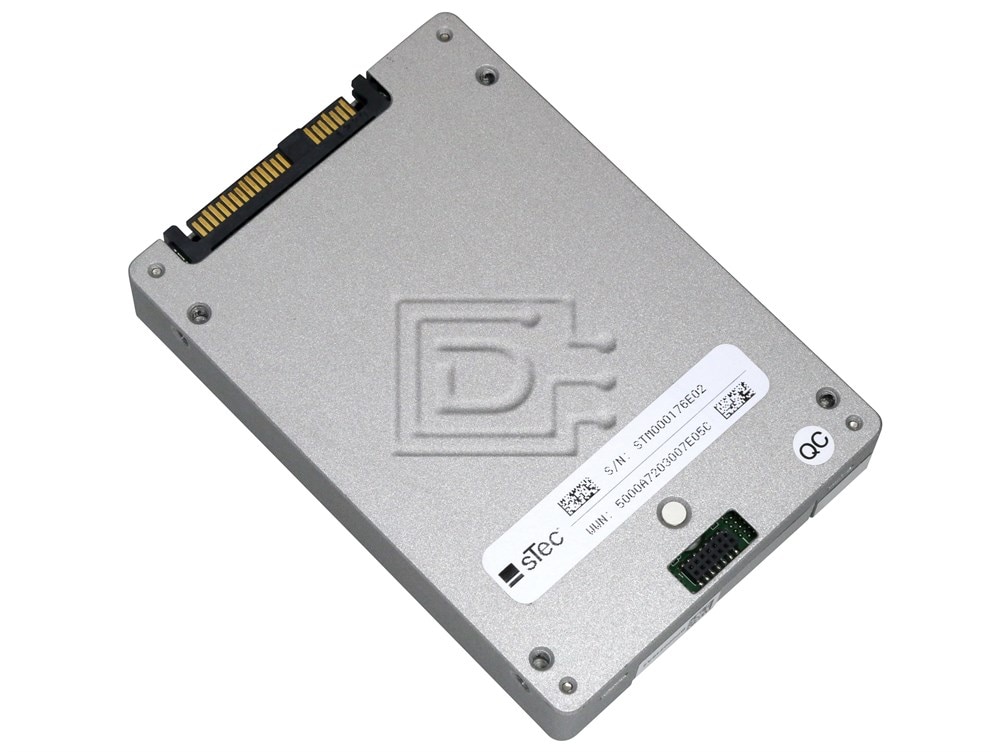

sTec S842E800M2 / 94100-02054-LI6BBCTU 800GB SFF 2.5inch Enterprise SAS SSD Endurance Write Intensive - Refurbished
The Ideal SSD for Enterprise and Cloud Infrastructures
The STEC™ s842 Enterprise SAS SSD takes capacity, performance and endurance to the next level. With 2TB capacity–up to 25% more over other SAS SSDs on the market.
s842 SAS solid-state drives deliver the highest levels of performance, capacity and endurance needed in enterprise and cloud data center servers and storage solutions.
*Versions available with unlimited endurance for 800GB/2TB capacities*
Benefits
- Purpose built SSDs supporting enterprise storage and Cloud applications
- Delivers highest capacity possible in a single 2.5" SAS enclosure, taking the user available capacity on a single drive to 2TB
- Optimized for low latency and high performance: delivers >115,000 sustained random IOPS, and throughput >530MB/s
- Outperforms competitive SAS and SATA SSDs while delivering the best application performance for all real-world workloads
- Tuned to deliver highest levels of throughput and low latencies even under RAID5 deployments
- Unprecedented endurance and reliability. Delivering upto 2X the endurance levels seen with competitive SATA or SAS SSDs
Compatibility:
This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives
| Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Interface | Capacity | 200GB | 400GB | 800GB | 2000GB | ||
| Type | SAS | ||||||
| Transfer Rate | 6Gb/s | ||||||
| Availability | Dual-port | ||||||
| Performance | Sustained Read Throughput | Up to: | 530MB/s1 | 530MB/s | 530MB/s | 530MB/s | |
| Sustained Write Throughput | Up to: | 380MB/s | 380MB/s | 453MB/s | 295MB/s | ||
| Max 100% Read IOPS | Up to: | 120,000 | 120,000 | 118,000 | 113,000 | ||
| Max 100% Write IOPS | Up to: | 110,000 | 110,000 | 63,000 | 103,000 | ||
| Max 100% Random Read IOPS | (4K) | 84,000 | 84,000 | 85,000 | 65,000 | ||
| Max 100% Random Write IOPS | (4K) | 28,500 | 34,000 | 17,500 | 6,000 | ||
| Physical | Form Factor | 2.5-inch | |||||
| Dimensions (mm) | 100.2mm(L) x 69.8mm(W) x 15.0mm(H) | ||||||
| Weight | <0.4kg | ||||||
| Endurance | Drive Writes Per Day for 5 Years | 15x | 15x | 10x* | 10x* | ||
| (100% Random 4KB/8KB write workload)†† | |||||||
| Environmental | Operational Temperature | 0° to 60°C (Commercial) | |||||
1The drive saturates the I/O bus
†† (DWPD at aligned block size in product specifications)
*Unlimited version available **1TB = 1000GB
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 94100-02054-LI6BBCTU
Weight: 1 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
