sTec Z16IZF2E-100UCU 100GB SFF SAS SSD
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 100GB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Consumer / Value |
| Electrical Interface: | SAS-2 6Gbps |
Description

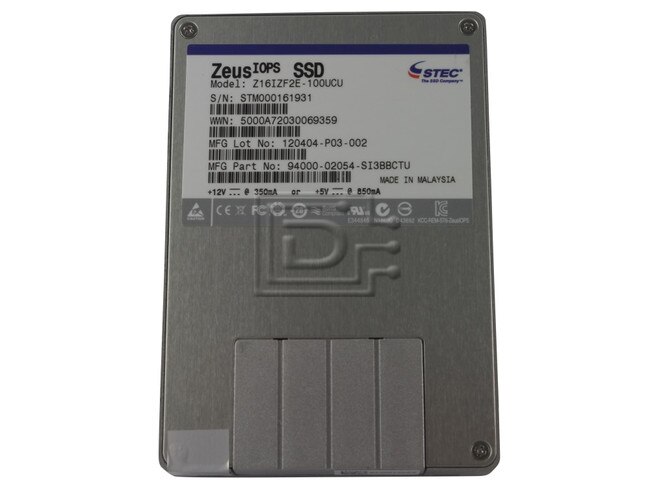

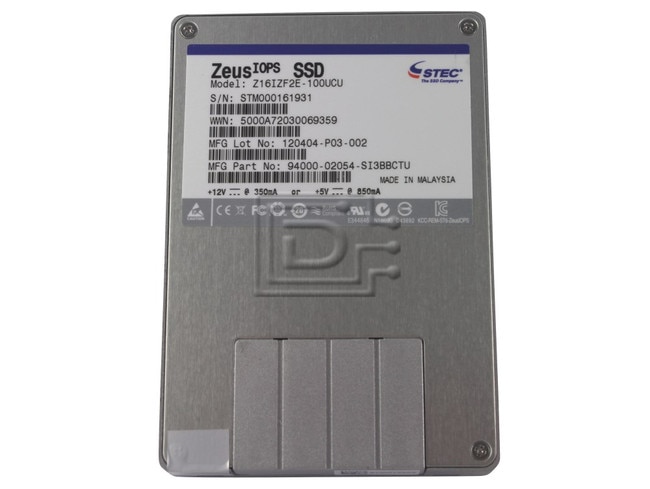

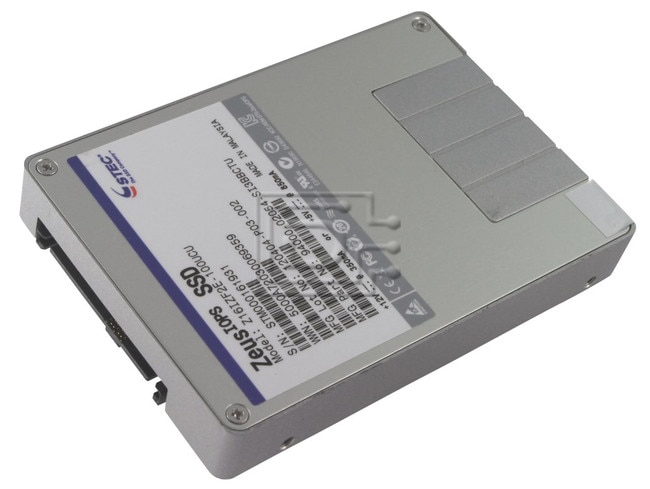

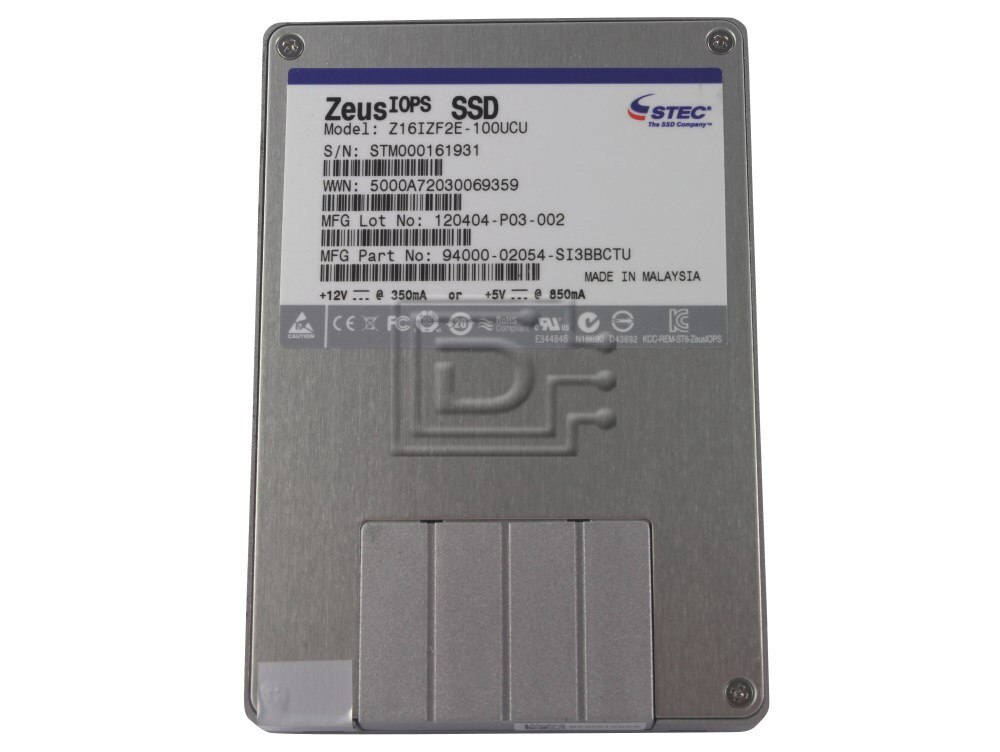

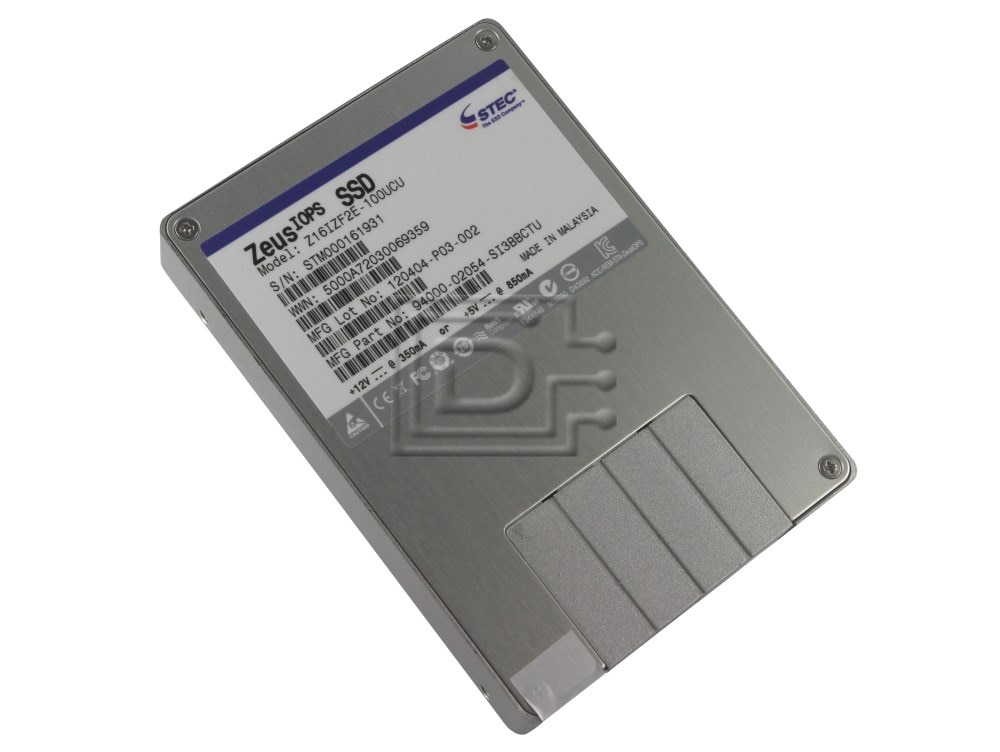

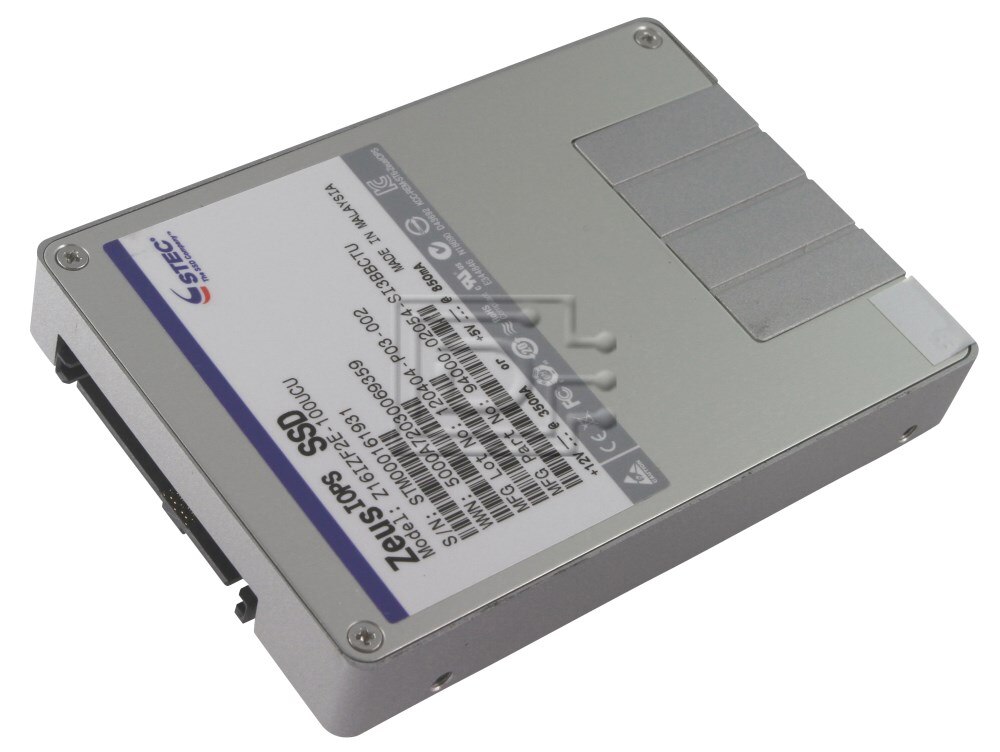

sTec ZeusIOPS Z16IZF2E-100UCU 100GB SFF 2.5inch Enterprise Serial Attached SCSI / SAS Solid State Drive SSD - Brand New
ZeusIOPS® SAS SSDs from sTec are a uniquely engineered family of solidstate drives (SSDs) that outperform conventional hard disk drives by breaking the bottlenecks associated with rotating media to take sustainable IOPS performance to new levels.
In addition to their world-class performance, ZeusIOPS SAS SSDs are the most reliable, longest lasting SSD solutions now available for the enterprise market. Based on fourth-generation sTec patented SSD controller technology, ZeusIOPS SAS SSDs deliver the best performance, endurance (i.e., device lifetimes) and reliability that is unmatched in the industry.
Compatibility
This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives
Specifications
| Specifications | ||||||
|---|---|---|---|---|---|---|
| Interface | Capacity | 100GB | 200GB | 400GB | ||
| Type | SAS | |||||
| Transfer Rate | 6Gb/s | |||||
| Availability | Dual-port | |||||
| Performance | Sustained Read Throughput | Up to: | 530MB/s1 | 530MB/s | 530MB/s | |
| Sustained Write Throughput | Up to: | 450MB/s | 450MB/s | 450MB/s | ||
| Max 100% Read IOPS | Up to: | 120,000 | 120,000 | 120,000 | ||
| Max 100% Write IOPS | Up to: | 70,000 | 70,000 | 70,000 | ||
| Max 100% Random Read IOPS | (4K) | 85,000 | 85,000 | 85,000 | ||
| Max 100% Random Write IOPS | (4K) | 36,000 | 36,000 | 36,000 | ||
| Physical | Form Factor | 2.5-inch | ||||
| Dimensions (mm) | 100.2mm(L) x 69.8mm(W) x 15.0mm(H) | |||||
| Weight | <0.4kg | |||||
| Environmental | Operational Temperature | 0° to 60°C (Commercial) | ||||
1The drive saturates the I/O bus
†† (DWPD at aligned block size in product specifications)
*Unlimited version available **1TB = 1000GB
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
