sTec Part #/MPN: Z16IZF2E-200UCU
DiscTech Item #: STE-Z16IZF2E-200UCU-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 200GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 530
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
SSD Type: SLC
SSD Endurance DWPD: Enterprise Write Intensive

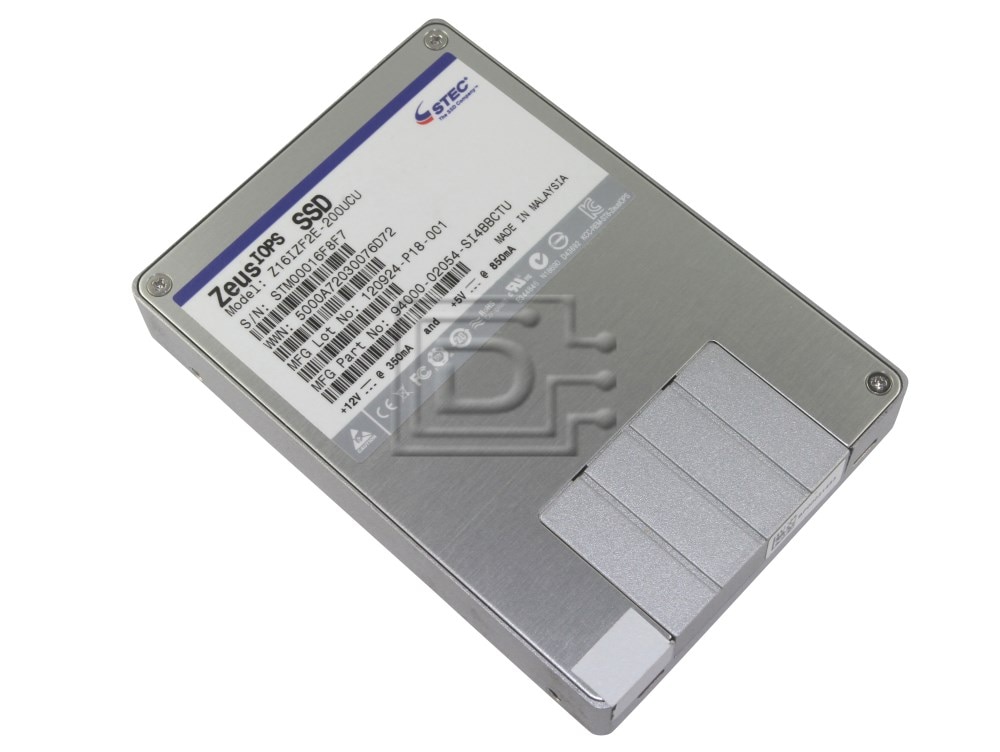

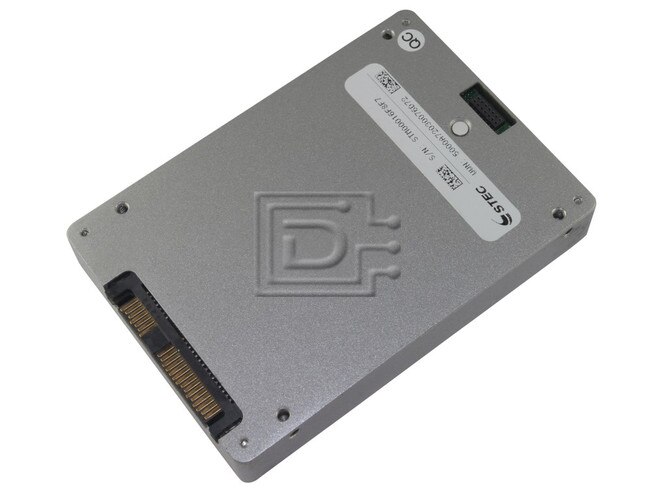

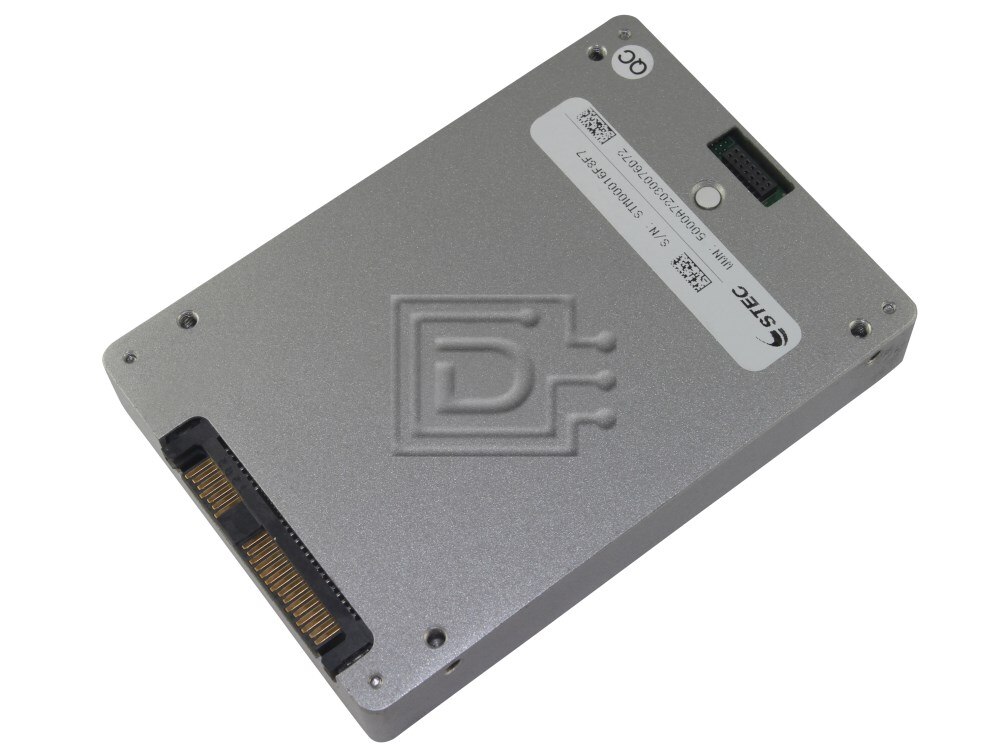

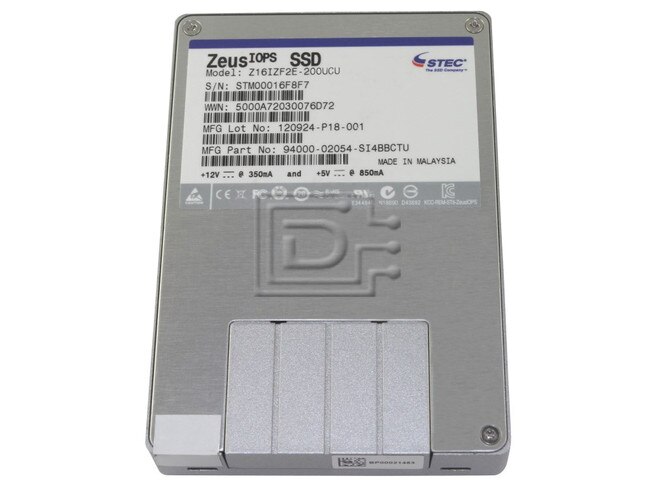

sTec ZeusIOPS Z16IZF2E-200UCU 200GB SLC SFF 2.5inch Enterprise Serial Attached SCSI / SAS Solid State Drive SSD - New Pull
ZeusIOPS® SAS SSDs from sTec are a uniquely engineered family of solidstate drives (SSDs) that outperform conventional hard disk drives by breaking the bottlenecks associated with rotating media to take sustainable IOPS performance to new levels.
In addition to their world-class performance, ZeusIOPS SAS SSDs are the most reliable, longest lasting SSD solutions now available for the enterprise market. Based on fourth-generation sTec patented SSD controller technology, ZeusIOPS SAS SSDs deliver the best performance, endurance (i.e., device lifetimes) and reliability that is unmatched in the industry.
Compatibility:
This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives
| Specifications | ||||||
|---|---|---|---|---|---|---|
| Interface | Capacity | 100GB | 200GB | 400GB | ||
| Type | SAS | |||||
| Transfer Rate | 6Gb/s | |||||
| Availability | Dual-port | |||||
| Performance | Sustained Read Throughput | Up to: | 530MB/s1 | 530MB/s | 530MB/s | |
| Sustained Write Throughput | Up to: | 450MB/s | 450MB/s | 450MB/s | ||
| Max 100% Read IOPS | Up to: | 120,000 | 120,000 | 120,000 | ||
| Max 100% Write IOPS | Up to: | 70,000 | 70,000 | 70,000 | ||
| Max 100% Random Read IOPS | (4K) | 85,000 | 85,000 | 85,000 | ||
| Max 100% Random Write IOPS | (4K) | 36,000 | 36,000 | 36,000 | ||
| Physical | Form Factor | 2.5-inch | ||||
| Dimensions (mm) | 100.2mm(L) x 69.8mm(W) x 15.0mm(H) | |||||
| Weight | <0.4kg | |||||
| Environmental | Operational Temperature | 0° to 60°C (Commercial) | ||||
1The drive saturates the I/O bus
†† (DWPD at aligned block size in product specifications)
*Unlimited version available **1TB = 1000GB
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
