Toshiba Part #/MPN: PX02SSF040
DiscTech Item #: TOS-PX02SSF040-C9-OE-DEL
- Certified 95Condition Levels Explained
These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 400GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Write Intensive
Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620

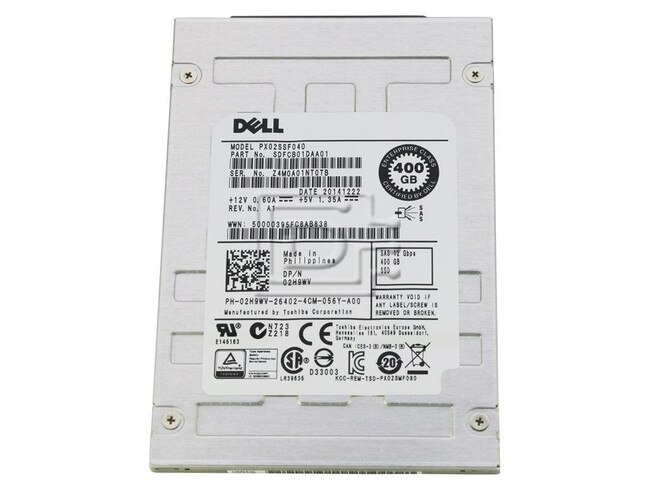

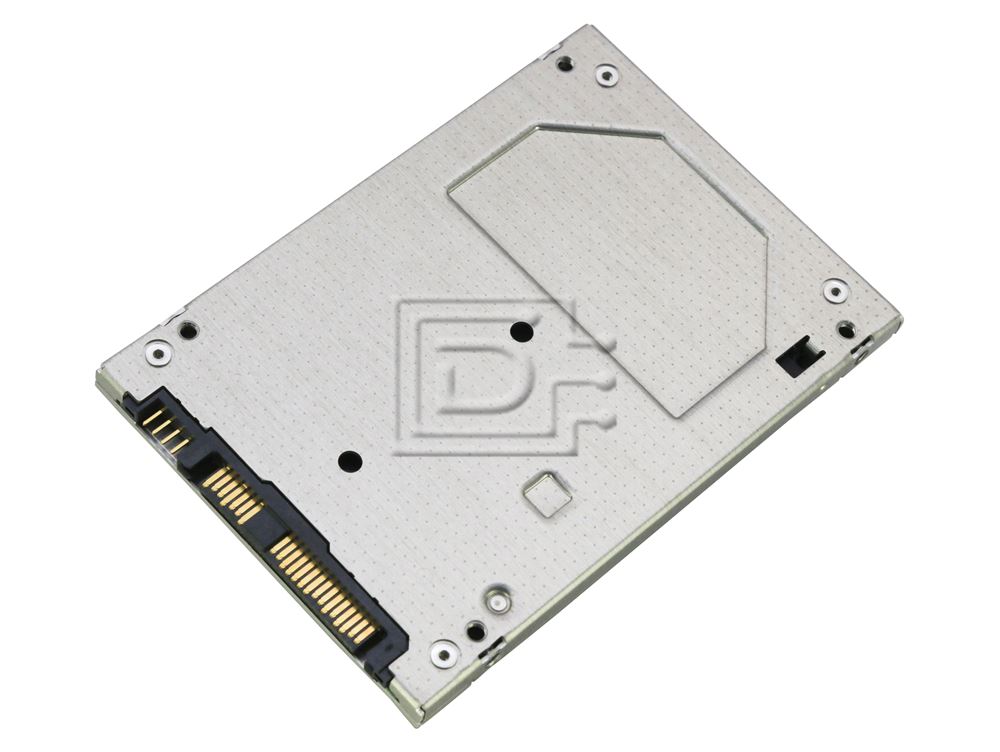

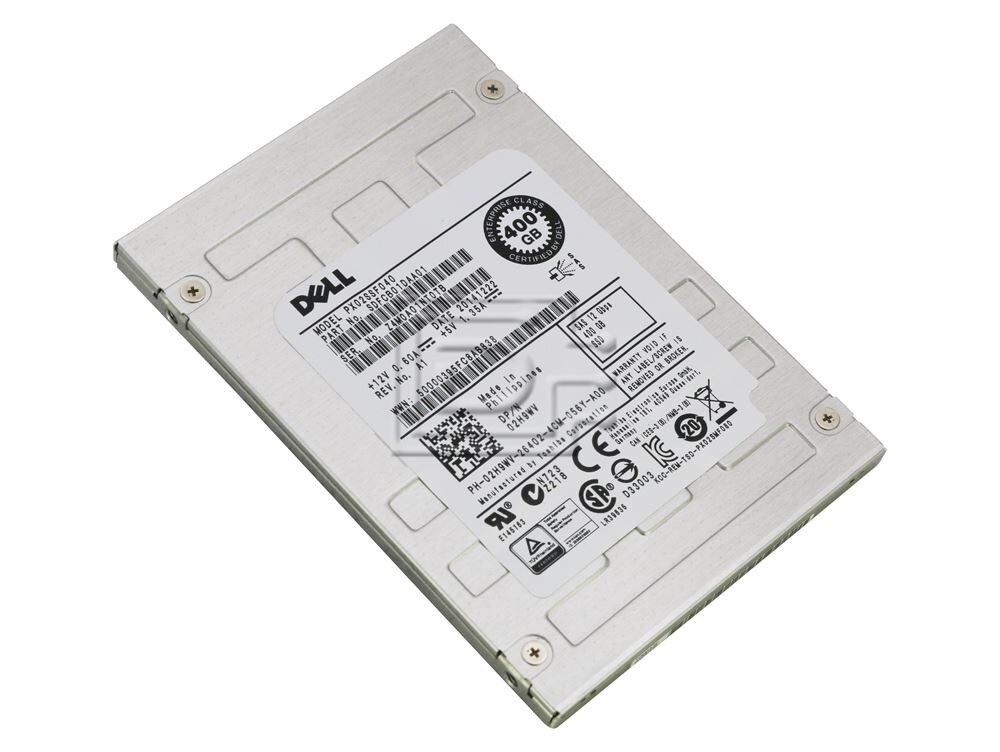

Dell 2H9WV / Toshiba PX02SSF040 400GB 2.5" Write-Intensive 30-DWPD SAS Phoenix M2+ eSSD - Certified 95
Dell 2H9WV / Toshiba PX02SSF040 400GB 2.5" Write-Intensive 30-DWPD SAS Phoenix M2+ eSSD - Certified 95
Alt MPN: 2H9WV, 02H9WV, SDFCB01GEA01
High-endurance / write-intensive 2.5” SAS Enterprise SSD optimized for OLTP and other high transaction workloads; featuring 12G SAS and select models offering industry standard self-encrypting technology.
- 24nm eMLC NAND Process
- 12 Gb/sec SAS Interface & 6 Gb/sec SAS Interface
- Quadruple Swing by Code, Layered ECC Approach for Improved Error Correction
- Power Loss Protection
Compatibility:
This drive is compatible with any server that accepts 2.5"x7mm Thin Case drives.
Drive Model | PX02SSF040 |
---|---|
Capacity | 400GB |
Performance | |
Interface Speed (MBps) | 1500 (12Gbps) |
4KiB Random Read (Sustained) | 130,000IOPS |
4Kib Random Write (Sustained) | 42,000IOPS |
4Kib Random 70/30 Read/Write (Sustained) | 80,000IOPS |
64Kib Sequential Read (Sustained) | 1100 MiB/s 910MiB/s |
64Kib Sequential Write (Sustained) | 410 MiB/s |
MTTF (hours) | 2,000,000 |
Power Requirements | |
Voltage | 5V (+/- 5%), 12V (+/- 5%) |
Power Consumption | 2.7 W Typ. |
Energy Consumption Efficiency | 19,500 IOPS/W |
Physical | |
Height (in/mm) | 0.27/7.0 |
Width (in/mm) | 2.75/69.85 |
Depth (in/mm) | 3.95/100.45 |
Weight (lb/g) | 0.15/70 |
Enviromental | |
Temp - Operating | 0° to 55°C |
Temp - Non-Operating | -40° to 70°C |
Vibration Operating | 21.27 m/s² |
Vibration - Non-Operating | 159.74 m/s² |
Shock - Operating | 9,800 m/s² (1,000G 0.5ms, ½ sine) |
Shock - Non-Operating | 9,800 m/s² (1,000G 0.5ms, ½ sine) |
Power Loss Protection | YES |
Reliability | |
Availability (hrs/day x days/wk) | 24x7 |
Endurance - Total Bytes Written | 21.9 PB |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 2H9WV 02H9WV SDFCB01GEA01
