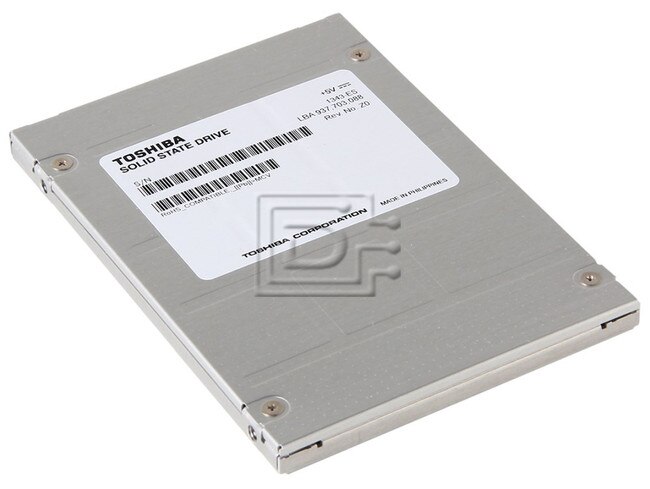

Toshiba PX02SSF040 SAS eSSD

Toshiba Part #/MPN: PX02SSF040

DiscTech Item #: TOS-PX02SSF040-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 400GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Write Intensive

Toshiba PX02SSF040 400GB 2.5in Write-Intensive 30-DWPD SAS Phoenix M2+ eSSD - Brand New

Toshiba PX02SSF040 400GB 2.5" Write-Intensive 30-DWPD Serial Attached SCSI Phoenix M2+ Enterprise Solid State Disk Drive – Brand New


High-endurance / write-intensive 2.5” SAS Enterprise SSD optimized for OLTP and other high transaction workloads; featuring 12G SAS and select models offering industry standard self-encrypting technology.

  • 24nm eMLC NAND Process
  • 12 Gb/sec SAS Interface & 6 Gb/sec SAS Interface
  • Quadruple Swing by Code, Layered ECC Approach for Improved Error Correction
  • Power Loss Protection


This drive is compatible with any server that accepts 2.5"x7mm Thin Case drives.

Drive ModelPX02SSF040
Interface Speed (MBps)1500 (12Gbps)
4KiB Random Read (Sustained)130,000IOPS
4Kib Random Write (Sustained)42,000IOPS
4Kib Random 70/30 Read/Write (Sustained)80,000IOPS
64Kib Sequential Read (Sustained)1100 MiB/s 910MiB/s
64Kib Sequential Write (Sustained)410 MiB/s
MTTF (hours)2,000,000
Power Requirements
Voltage5V (+/- 5%), 12V (+/- 5%)
Power Consumption2.7 W Typ.
Energy Consumption Efficiency19,500 IOPS/W
Height (in/mm)0.27/7.0
Width (in/mm)2.75/69.85
Depth (in/mm)3.95/100.45
Weight (lb/g)0.15/70
Temp - Operating0° to 55°C
Temp - Non-Operating-40° to 70°C
Vibration Operating21.27 m/s²
Vibration - Non-Operating159.74 m/s²
Shock - Operating9,800 m/s² (1,000G 0.5ms, ½ sine)
Shock - Non-Operating9,800 m/s² (1,000G 0.5ms, ½ sine)
Power Loss ProtectionYES
Availability (hrs/day x days/wk)24x7
Endurance - Total Bytes Written 21.9 PB

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SDFCB01GEA01

Weight: 1.8 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
