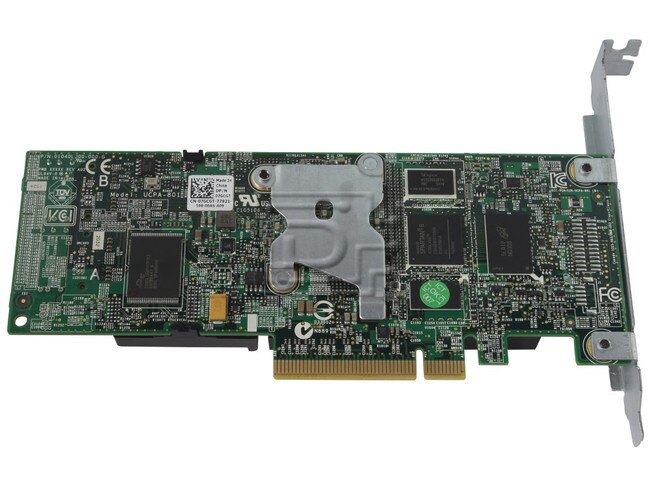

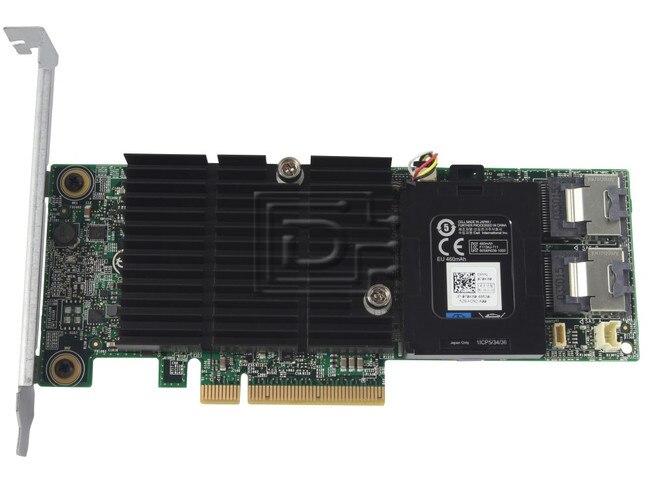

Dell 342-4204 H710P PCie RAID Controller

Dell Part #/MPN: 342-4204

DiscTech Item #: DEL-342-4204-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8088

Form Factor: Half-Height/Half-Length

Electrical Interface: PCIe - v2.0 - 8GBps

On-Board Cache: 1GB

Voltage: 3.3V

Dell 342-4204 / 463-6131 PERC H710P PCIe 1GB Full Height RAID Controller - Brand New

Dell 342-4204 / 463-6131 PERC H710P Peripheral Component Interconnect Express 1GB Full Height RAID Controller - Brand New

Dell PowerEdge RAID Controller H710P
An eight-port 6Gb/s PCI Express RAID controller, the Dell PowerEdge RAID Controller (PERC) H710P supports up to thirty-two 3Gb/s and 6Gb/s SATA or SAS hard-disk drives or solid-state drives.

As storage demands expand and processing loads grow, it becomes increasingly more difficult for administrators to achieve maximum performance from their applications. The newest line of Dell™ PowerEdge™ RAID Controller cards, built on the LSISA2208 dual-core PowerPC RAID-on-Chip (ROC), offer unmatched I/O performance for database applications and streaming digital media environments.

The PowerEdge RAID Controller (PERC) H710P, with eight internal ports, delivers two PowerPC processor cores and a 72-bit DDR3 interface that drives 1 GB cache memory. You can deploy the PERC H710P in hard-drive-based server environments for significant performance gains. If you are implementing hybrid server platforms based on solid-state storage, these next-generation PERCs exploit the potential of solidstate drives (SSDs) for unsurpassed performance and enterprise-class reliability.

Advanced software options
The Dell family of 6Gb/s PowerEdge RAID Controllers is designed to support advanced software options for the Dell PowerEdge server family with enhanced performance and data protection capabilities. These new software options can help you to address key business challenges while helping to deliver a higher return on your IT investments. The PERC CacheCade™ software and

Dell’s Cut Through I/O (CTIO) feature boost transactional I/O performance of both rotational hard-drive and SSD configurations.
Dell’s FastPath™ software feature enables the use of the second core on our PowerPC chip to accelerate write-through I/O, which significantly enhances SSD performance.

Enterprise data protection
Standard support for the most popular RAID levels and accessories, including RAID 5, RAID 6, RAID 50, RAID 60 and NVCache, further strengthen the data-protection capabilities of the PERC H710P. Dell’s NVCache technology backs up the data to nonvolatile storage in a power-loss event, and can store it safely for a nearly unlimited period of time.

Intuitive RAID management utility
Dell OpenManage™ Storage Services (OMSS) provides the essential tools to efficiently manage PERC products, whether deployed in an enterprise or small business. Dell offers a collection of applications and tools, including a pre-boot setup utility and a full spectrum of online RAID management utilities. This suite of applications allow administrators to adjust SAS or SATA topology views from the system host, controller and disk enclosure down to the logical and physical drive level. Extending to enterprise deployments, these tools can scale to easily configure, monitor and manage RAID and JBOD volumes locally or over the LAN network.


PERC H710P technical specification
Part Number342-4204
Alt Part Number463-6131
Solution ProvidedEight-port internal SATA+SAS solution supporting up to 32 hard disk drives (HDDs) and solid-state drives (SSDs)
Physical Dimensions167.6mm (6.6in) x 64.4mm (2.5in) (MD2 low profile)
ConnectorsTwo internal mini-SAS SFF8088
Device SupportUp to 32 (SAS, SATA)
Host Bus Type8-Lane, PCI Express 2.0 Compliant
Data Transfer RateUp to 6Gb/s per port
SAS ControllerLSISAS2208 Dual-Core Power PC ROC
Cache Size1 GB
Key RAID Data Protection Features
  • RAID levels 0, 1, 5, 6
  • RAID spans 10, 50, 60
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • Auto resume after power loss during array rebuild or reconstruction/RLM
  • Consistency check for background data integrity
  • Physical disk power management (Dimmer Switch™)
  • SED drive support
  • Load balancing
  • Fast initialization for quick array setup
  • Configurable stripe size up to 1MB SSD support
  • Patrol read for media scanning and repairing
  • Up to 64 logical drive and 64TB LUN support
  • DDF compliant Configuration on Disk (COD)
  • S.M.A.R.T. support
  • Global and dedicated hot spare with revertible hot-spare support: automatic rebuild, enclosure affinity, emergency SATA
  • RAID ManagementCTRL-R
    Dell OpenManage Storage Service
    Additional ManagementUEFI (HII)
    Operating TemperatureMaximum ambient temperature: 60°C
    Operating Voltage+3.3V
    Optional SSD Optimization
  • CacheCade™ software: provides boost in READs from SSD cache
  • Dell FastPath™ software: delivers high IOPs performance on SSD arrays
  • Operating Systems
  • Microsoft® Windows Server® 2008 R2 SP2
  • Red Hat® Enterprise Linux® 5.7
  • Red Hat® Enterprise Linux® 6.1
  • SUSE® Linux Enterprise Server 10 SP4
  • SUSE® Linux Enterprise Server 11 SP2
  • Virtualization Options
  • VMware® ESX/ESXi 4.1
  • VMware® 5.0 UL

  • Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: 463-6131 7GCGT 07GCGT XDHXT 0XDHXT

    Weight: 2 lb

    Warranty: 1 Year DiscTech

    Brand New
