Dell Part #/MPN: 342-4204
DiscTech Item #: DEL-342-4204-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8088
Form Factor: Full-Height/Half-Length
Electrical Interface: PCIe - v2.0 - 8GBps
On-Board Cache: 1GB
Voltage: 3.3V

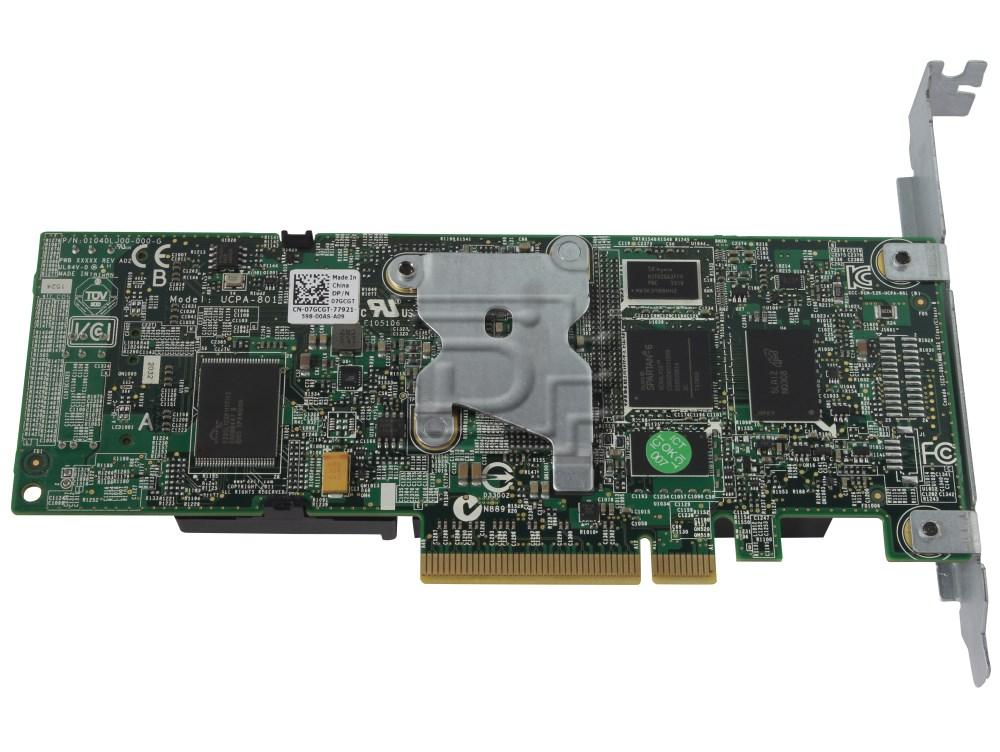

Dell 342-4204 / 463-6131 PERC H710P PCIe 1GB Full Height RAID Controller - New Pull
Dell 342-4204 / 463-6131 PERC H710P Peripheral Component Interconnect Express 1GB Full Height RAID Controller - New Pull
Dell PowerEdge RAID Controller H710P
An eight-port 6Gb/s PCI Express RAID controller, the Dell PowerEdge RAID Controller (PERC) H710P supports up to thirty-two 3Gb/s and 6Gb/s SATA or SAS hard-disk drives or solid-state drives.
As storage demands expand and processing loads grow, it becomes increasingly more difficult for administrators to achieve maximum performance from their applications. The newest line of Dell™ PowerEdge™ RAID Controller cards, built on the LSISA2208 dual-core PowerPC RAID-on-Chip (ROC), offer unmatched I/O performance for database applications and streaming digital media environments.
The PowerEdge RAID Controller (PERC) H710P, with eight internal ports, delivers two PowerPC processor cores and a 72-bit DDR3 interface that drives 1 GB cache memory. You can deploy the PERC H710P in hard-drive-based server environments for significant performance gains. If you are implementing hybrid server platforms based on solid-state storage, these next-generation PERCs exploit the potential of solidstate drives (SSDs) for unsurpassed performance and enterprise-class reliability.
Advanced software options
The Dell family of 6Gb/s PowerEdge RAID Controllers is designed to support advanced software options for the Dell PowerEdge server family with enhanced performance and data protection capabilities. These new software options can help you to address key business challenges while helping to deliver a higher return on your IT investments. The PERC CacheCade™ software and
Dell’s Cut Through I/O (CTIO) feature boost transactional I/O performance of both rotational hard-drive and SSD configurations.
Dell’s FastPath™ software feature enables the use of the second core on our PowerPC chip to accelerate write-through I/O, which significantly enhances SSD performance.
Enterprise data protection
Standard support for the most popular RAID levels and accessories, including RAID 5, RAID 6, RAID 50, RAID 60 and NVCache, further strengthen the data-protection capabilities of the PERC H710P. Dell’s NVCache technology backs up the data to nonvolatile storage in a power-loss event, and can store it safely for a nearly unlimited period of time.
Intuitive RAID management utility
Dell OpenManage™ Storage Services (OMSS) provides the essential tools to efficiently manage PERC products, whether deployed in an enterprise or small business. Dell offers a collection of applications and tools, including a pre-boot setup utility and a full spectrum of online RAID management utilities. This suite of applications allow administrators to adjust SAS or SATA topology views from the system host, controller and disk enclosure down to the logical and physical drive level. Extending to enterprise deployments, these tools can scale to easily configure, monitor and manage RAID and JBOD volumes locally or over the LAN network.
ALT MPN / DPN: 7GCGT 07GCGT XDHXT 0XDHXT
PERC H710P technical specification | ||
---|---|---|
Part Number | 342-4204 | |
Alt Part Number | 463-6131 | |
Features | ||
Solution Provided | Eight-port internal SATA+SAS solution supporting up to 32 hard disk drives (HDDs) and solid-state drives (SSDs) | |
Physical Dimensions | 167.6mm (6.6in) x 64.4mm (2.5in) (MD2 low profile) | |
Connectors | Two internal mini-SAS SFF8088 | |
Device Support | Up to 32 (SAS, SATA) | |
Host Bus Type | 8-Lane, PCI Express 2.0 Compliant | |
Data Transfer Rate | Up to 6Gb/s per port | |
SAS Controller | LSISAS2208 Dual-Core Power PC ROC | |
Cache Size | 1 GB | |
Key RAID Data Protection Features | ||
RAID Management | CTRL-R Dell OpenManage Storage Service | |
Additional Management | UEFI (HII) CEM | |
Operating Temperature | Maximum ambient temperature: 60°C | |
Operating Voltage | +3.3V | |
Optional SSD Optimization | ||
Operating Systems | ||
Virtualization Options |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 463-6131 7GCGT 07GCGT XDHXT 0XDHXT
Weight: 2 lb
Warranty: 1 Year DiscTech
