INTEL Part #/MPN: SSDSC2BX200G4R
DiscTech Item #: INT-SSDSC2BX200G4R-C9-OE-DEL
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use

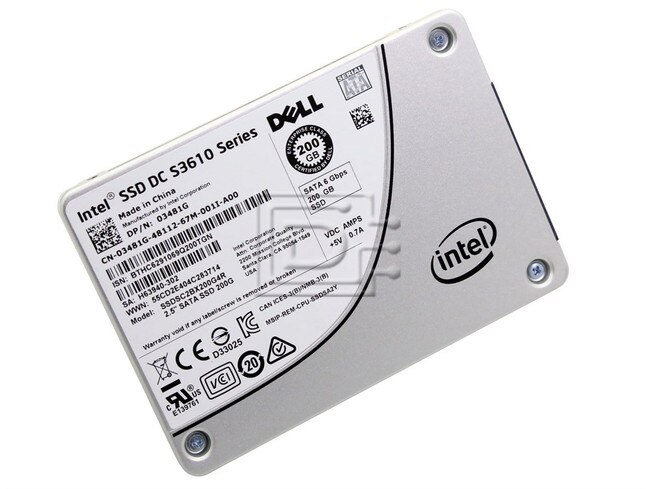

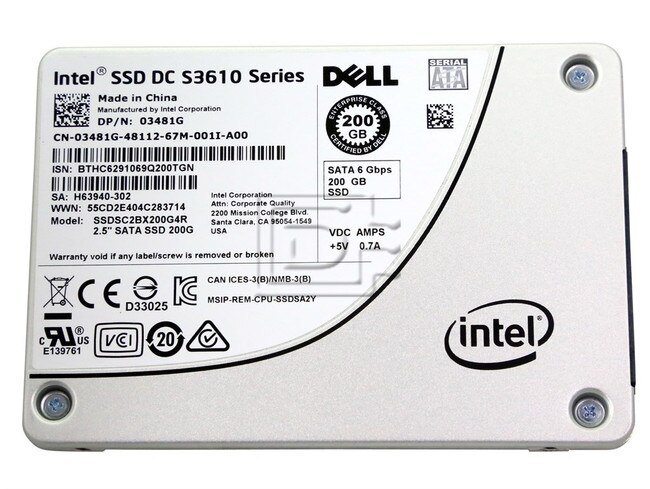

Dell 3481G / Intel SSDSC2BX200G4R 200GB 2.5 inch 6Gbps MLC SATA SSD - Certified 95 OEM
DP/N: 3481G 03481G
Intel® Solid-State Drive DC S3700 Series Non-Volatile Memory Storage Solutions
Premier Performance, Protection, and Optimization for the Data Center
The Intel® Solid-State Drive offers the next generation of data center SSDs combining fast consistent performance with high endurance, and strong data protection.
Fast and Consistent Performance
Deliver data at a rapid pace, with consistently low latencies and tight IOPS distribution.
The Intel® Solid-State Drive delivers superior performance with 4KB random read performance of up to 75,000 IOPS and 4KB random write performance of up to 36,000 IOPS . With a 10% input/output operations per second (IOPS) distribution and max latencies of <500μs for 99.9% of the time, the DC S3700 Series will ensure quick and consistent command response times. All this performance delivered with low active power consumption (less than or equal to 6 watts) means this Intel SSD will help reduce your overall energy costs—making it an excellent value for data center storage applications upgrades!
Stress-free Data Performance
Protect your data center applications with multiple security checkpoints providing protection against data loss and corruption.
The Intel® Solid-State combines the following features to provide an SSD you can count on.
Full End-to-End Data Protection. Protects your data from the time it enters the drive to the time it leaves. This SSD uses an advance error correction scheme that ensures data integrity by protecting against possible data corruption in the NAND, SRAM, and DRAM memory. The DC S3700 also protects the data in transit through several techniques such as parity checks, Cyclic Redundancy Checks (CRC) and LBA tag validation. Once an error is detected, an immediate attempt will be made to correct it, and any uncorrectable error will be reported to the host. To further improve data assurance, the Intel SSD provides an array of surplus flash memory that caches data to minimize potential data loss.
Advanced Encryption Standard (AES) Capable. Protects your data from external threats and internal system issues with 256-bit encryption technology, giving you the peace of mind that your company’s data is secure and safe.
Enhanced Power-Loss Data Protection. Reduces potential data loss by detecting and protecting data from an unexpected system power loss. The drive saves all cached data in the process of being written before shutting down, thereby minimizing potential data loss.
High Endurance Technology
Meet your most demanding needs with marathon-like write endurance.
Incorporating High Endurance Technology (HET), the Intel Solid-State Drive delivers single-level cell (SLC) solid-state drive like endurance in a multi-level cell (MLC) SSD package. By combining SSD NAND management techniques and NAND silicon enhancements, HET enables the DC S3700 Series 10 Drive Writes Per Day (DWPD) over a 5 year life. For the DC S3700 Series 800 GB, that’s equivalent to recording over 186 years of HD video over the life of the drive.
- Fast and Consistent Performance
- Full End to End Data Protection
- Enhanced Power-Loss Data Protection
- Latest 25 mm MLC NAND Flash Memory Technology
- Intel-Based Controller Technology
- 2.5” and 1.8” Form Factor
Compatible with, but not limited to ...
- Intel Compatible Server System
- Intel Workstation System
- Intel Server Board
- Intel Workstation Board
- Intel Compute Module
|Alt Model Number||3481G 03481G|
|Sequential Read||500 MB/s|
|Sequential Write||365 MB/s|
|Random Read (100% Span)||75000 IOPS|
|Random Write (100% Span)||32000 IOPS|
|Latency - Read||50 µs|
|Latency - Write||65 µs|
|Power - Active||4.4W|
|Power - Idle||650mW|
|Vibration - Operating||2.17 GRMS (5-700 Hz)|
|Vibration - Non-Operating||3.13 GRMS (5-800 Hz)|
|Shock (Operating and Non-Operating)||1,000 G/0.5 msec|
|Operating Temperature Range||0° C to 70° C|
|Weight||73.6 grams +/- 2 grams|
|Endurance Rating (Lifetime Writes)||10 drive writes per day|
|Mean Time Between Failures (MTBF)||2,000,000 Hours|
|Uncorrectable Bit Error Rate (UBER)||1 sector per 10^17 bits read|
|Components||Intel NAND Flash Memory Multi-Level Cell (MLC) Technology|
|Form Factor||2.5" 7mm|
|Interface||SATA 3.0 6Gb/s|
|Enhanced Power Loss Data Protection||Yes|
|Hardware Encryption||AES 256 bit|
|High Endurance Technology (HET)||Yes|
|Temperature Monitoring and Logging||Yes|
|End-to-End Data Protection||Yes|
|Intel Rapid Start Technology||No|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 3481G 03481G
Weight: 0.5 lb
Warranty: 1 Year DiscTech
These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
