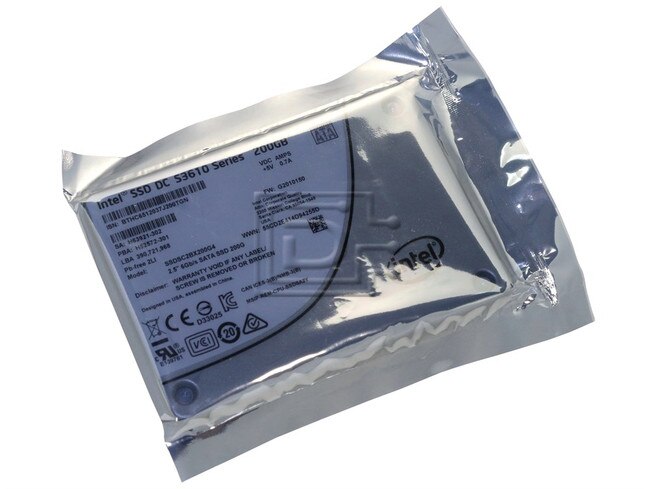

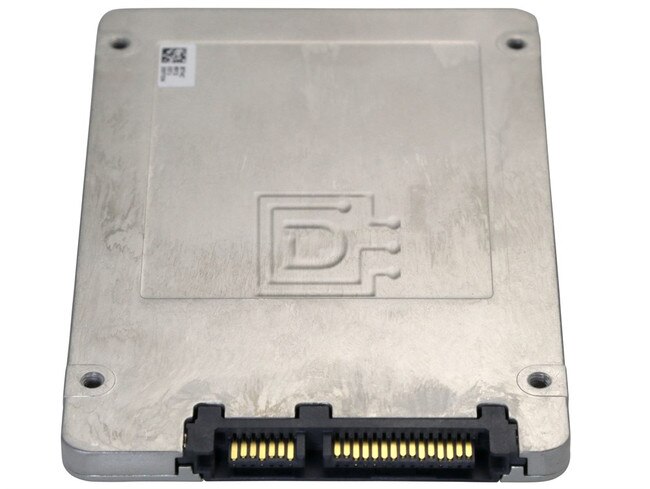

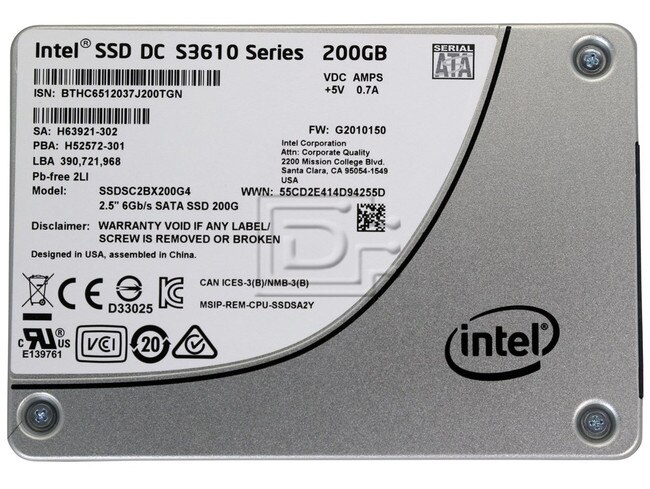

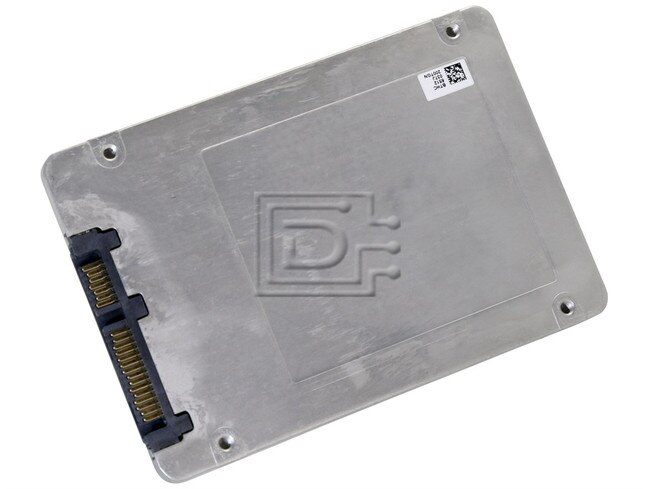

Intel DC S3610 SSDSC2BX200G4R 200GB 2.5 inch 6Gbps MLC SATA SSD

INTEL Part #/MPN: SSDSC2BX200G4R

DiscTech Item #: INT-SSDSC2BX200G4R-RF-OE


$149.00
  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

$149.00

Enterprise Grade

Capacity: 200GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Electrical Interface: SATA 600 - 6.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Mixed Use

Intel DC S3610 Series SSDSC2BX200G4R 200GB 2.5 inch 6Gbps MLC SATA SSD - Refurbished

Intel DC S3610 Series SSDSC2BX200G4R 200GB 2.5" 6.0 Gbps Multi-Level Cell Serial Advanced Technology Attachment Solid State Disk Drive - Refurbished

Intel® Solid-State Drive DC S3610 Series Non-Volatile Memory Storage Solutions

Consistently Amazing

Premier Performance, Protection, and Optimization for the Data Center
The Intel® Solid-State Drive offers the next generation of data center SSDs combining fast consistent performance with high endurance, and strong data protection.

Fast and Consistent Performance
Deliver data at a rapid pace, with consistently low latencies and tight IOPS distribution.

The Intel® Solid-State Drive delivers superior performance with 4KB random read performance of up to 75,000 IOPS and 4KB random write performance of up to 36,000 IOPS . With a 10% input/output operations per second (IOPS) distribution and max latencies of <500μs for 99.9% of the time, the DC S3600 Series will ensure quick and consistent command response times. All this performance delivered with low active power consumption (less than or equal to 6 watts) means this Intel SSD will help reduce your overall energy costs—making it an excellent value for data center storage applications upgrades!

Stress-free Data Performance
Protect your data center applications with multiple security checkpoints providing protection against data loss and corruption.

The Intel® Solid-State combines the following features to provide an SSD you can count on.

Full End-to-End Data Protection. Protects your data from the time it enters the drive to the time it leaves. This SSD uses an advance error correction scheme that ensures data integrity by protecting against possible data corruption in the NAND, SRAM, and DRAM memory. The DC S3600 also protects the data in transit through several techniques such as parity checks, Cyclic Redundancy Checks (CRC) and LBA tag validation. Once an error is detected, an immediate attempt will be made to correct it, and any uncorrectable error will be reported to the host. To further improve data assurance, the Intel SSD provides an array of surplus flash memory that caches data to minimize potential data loss.

Advanced Encryption Standard (AES) Capable. Protects your data from external threats and internal system issues with 256-bit encryption technology, giving you the peace of mind that your company’s data is secure and safe.

Enhanced Power-Loss Data Protection. Reduces potential data loss by detecting and protecting data from an unexpected system power loss. The drive saves all cached data in the process of being written before shutting down, thereby minimizing potential data loss.

High Endurance Technology

Meet your most demanding needs with marathon-like write endurance.

Incorporating High Endurance Technology (HET), the Intel Solid-State Drive delivers single-level cell (SLC) solid-state drive like endurance in a multi-level cell (MLC) SSD package. By combining SSD NAND management techniques and NAND silicon enhancements, HET enables the DC S3700 Series 10 Drive Writes Per Day (DWPD) over a 5 year life. For the DC S3700 Series 800 GB, that’s equivalent to recording over 186 years of HD video over the life of the drive.

Product Spotlight

  • Fast and Consistent Performance
  • Full End to End Data Protection
  • Enhanced Power-Loss Data Protection
  • Latest 25 mm MLC NAND Flash Memory Technology
  • Intel-Based Controller Technology
  • 2.5” and 1.8” Form Factor

Compatibility:

Intel DC S3610 Series is Compatible with, but not limited to ...

  • Intel Compatible Server System
  • Intel Workstation System
  • Intel Server Board
  • Intel Workstation Board
  • Intel Compute Module

SPECIFICATIONS
Model NumberSSDSC2BX200G4R
Alt Model Number3481G 03481G
StatusLaunched
Launch Date
Sequential Read500 MB/s
Sequential Write365 MB/s
Random Read (100% Span)75000 IOPS
Random Write (100% Span)32000 IOPS
Latency - Read50 µs
Latency - Write65 µs
Power - Active4.4W
Power - Idle650mW
Vibration - Operating2.17 GRMS (5-700 Hz)
Vibration - Non-Operating3.13 GRMS (5-800 Hz)
Shock (Operating and Non-Operating)1,000 G/0.5 msec
Operating Temperature Range0° C to 70° C
Weight73.6 grams +/- 2 grams
Endurance Rating (Lifetime Writes)10 drive writes per day
Mean Time Between Failures (MTBF)2,000,000 Hours
Uncorrectable Bit Error Rate (UBER)1 sector per 10^17 bits read
PACKAGE SPECIFICATIONS
ComponentsIntel NAND Flash Memory Multi-Level Cell (MLC) Technology
Capacity200 GB
Form Factor2.5" 7mm
InterfaceSATA 3.0 6Gb/s
Lithography25 nm
ADVANCED TECHNOLOGIES
Enhanced Power Loss Data ProtectionYes
Hardware EncryptionAES 256 bit
High Endurance Technology (HET)Yes
Temperature Monitoring and LoggingYes
End-to-End Data ProtectionYes
Intel Rapid Start TechnologyNo

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SSDSC2BX200G4

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
