Toshiba Part #/MPN: MG04ACA200N
DiscTech Item #: TOS-MG04ACA200N-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 2TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 195
Average Seek Time: 4.17
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 128MB

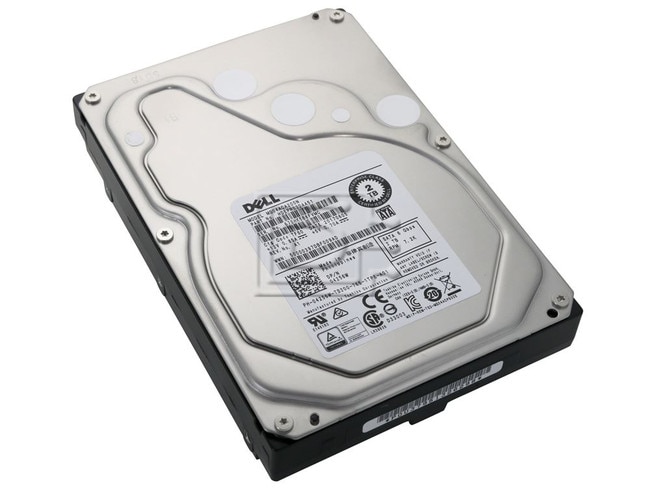

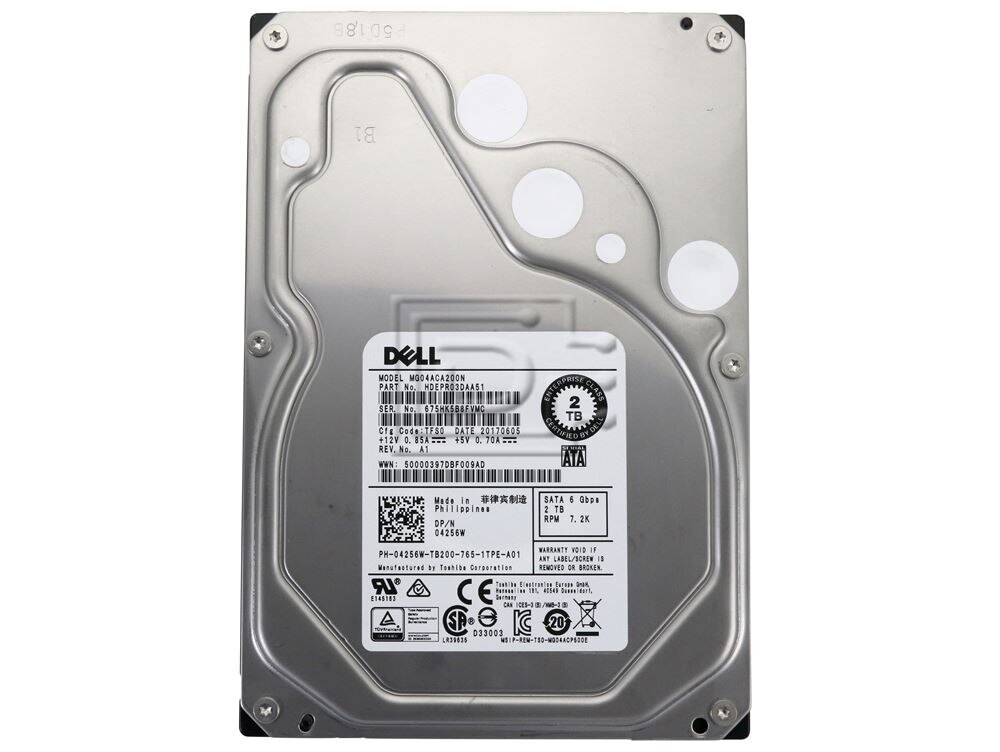

Dell 4256W / Toshiba MG04ACA200N 2TB 6Gbps 7.2K RPM LFF Enterprise SATA HDD - Refurbished
Dell 4256W / Toshiba MG04ACA200N 2TB / 2000GB 6Gbs 7,200 RPM LFF Enterprise SATA / Serial ATA HDD / Hard Disk Drive
The Enterprise Capacity HDD 512 native, 7,200 rpm SATA models (MG04ACA-N) come in a robust design providing 1, 2 and 4TB in a 3.5-inch form factor. Features of MG04ACA-N series include a SATA 6Gbit/s interface, and industry-standard 512 native format sector technology for environments and applications that require 512 native. Model options supporting Sanitize Instant Erase (SIE) are also available. This feature randomizes data instantly in case of unintended disclosure in the event that drives are re-purposed or moved outside of data center environments.
Key Features
- Large-Capacity (4 / 2 / 1 TB models) in an industry standard 3.5-inch Form-Factor
- 7,200 rpm Performance
- SATA 6Gbit/s Interface
- Designed for 24 × 7 workloads of up to 550 total TB Transferred per Year
- 512 Native Sector Technology
- Rotational Vibration Technology
- Sanitize Instant Erase (SIE) Option Available
Applications
- Engineered for Mid-line / Nearline Business Critical Workloads
- Tier 2 Business-Critical Servers and Storage Systems
- Servers Supporting Workloads that Benefit from High Capacity per Spindle
- Capacity-Optimized Data Center Storage Systems
- Applications and hypervisors that require legacy 512 Native Sector Technology
Compatibility:
This drive is compatible with any server or workstation that accepts 3.5in x 1.0in (LFF) SATA drives.
| Enterprise SATA HDD | |
|---|---|
| Model Number | MG04ACA200N |
| Basic Specifications | |
| Interface | SATA-2.6 / 3.0 |
| Interface Speed | 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Formatted Capacity | 2TB / 2000GB |
| Logical Data Block Length (HOST) | 512 |
| Logical Data Block Length (DISK) | 512 |
| Environmental Compliance | RoHS Compatible |
| Performances | |
| Buffer Sizee | 128 MiB |
| Rotation Speed | 7,200 rpm |
| Average Latency Time | 4.17 ms |
| Data Transfer Speed (Sustained) | 195 MiB/s |
| Reliability | |
| Unrecoverable Error Rate | 10 per 10e16 bits read |
| MTTF | 1,400,000 hors |
| 24 x 7 Operation | Yes |
| Workloads | 550 TB/y |
| Power Requirements | |
| Supply Voltage | 5 V ±5 % , 12 V ±5 % |
| Power Consumption (Read / Write) | 11.3 W |
| Power Consumption (Idle-B) | 6.0 W Typ |
| Dimensions | |
| Height | 26.1 mm Max |
| Width | 101.6 mm ± 0.25 mm |
| Lenth | 147 mm Max |
| Weight | 720 g Max |
| Environmental Requirements | |
| Temperature (Operating) | 5 to 55 °C |
| Temperature (Non-operating) | -40 to 70°C |
| Humidity (Operating) | 5 to 90 % R.H. |
| Humidity (Non-operating) | 5 to 95 % R.H. |
| Altitude (Operating) | -305 to +3,048 m |
| Altitude (Non-operating) | -305 to +12,192 m |
| Vibration (Operating) | |
| Vibration (Non-operating) | 49 m/s2 { 5.0 G } ( 5 to 500 Hz ) |
| Shock (Operating) | 686 m/s2 { 70 G } ( 2 ms duration ) |
| Shock (Non-operating) | 2,940 m/s2 { 300 G } ( 2 ms duration ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 4256W 04256W HDEPR03DAA51
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
