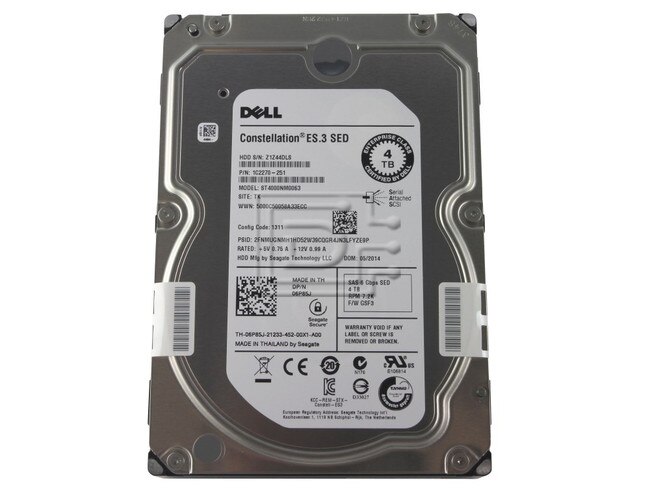

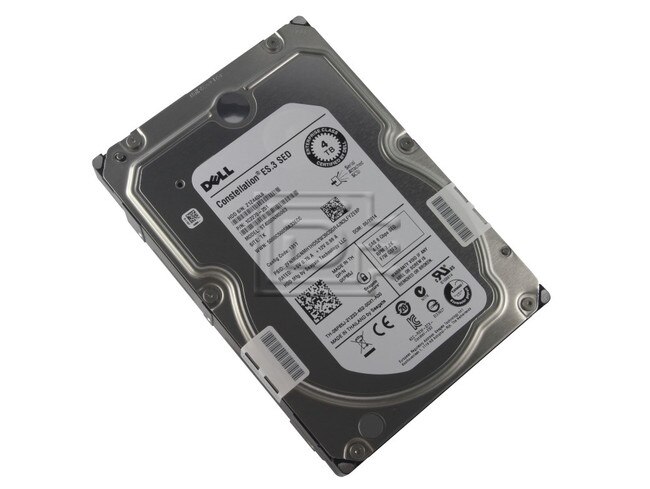

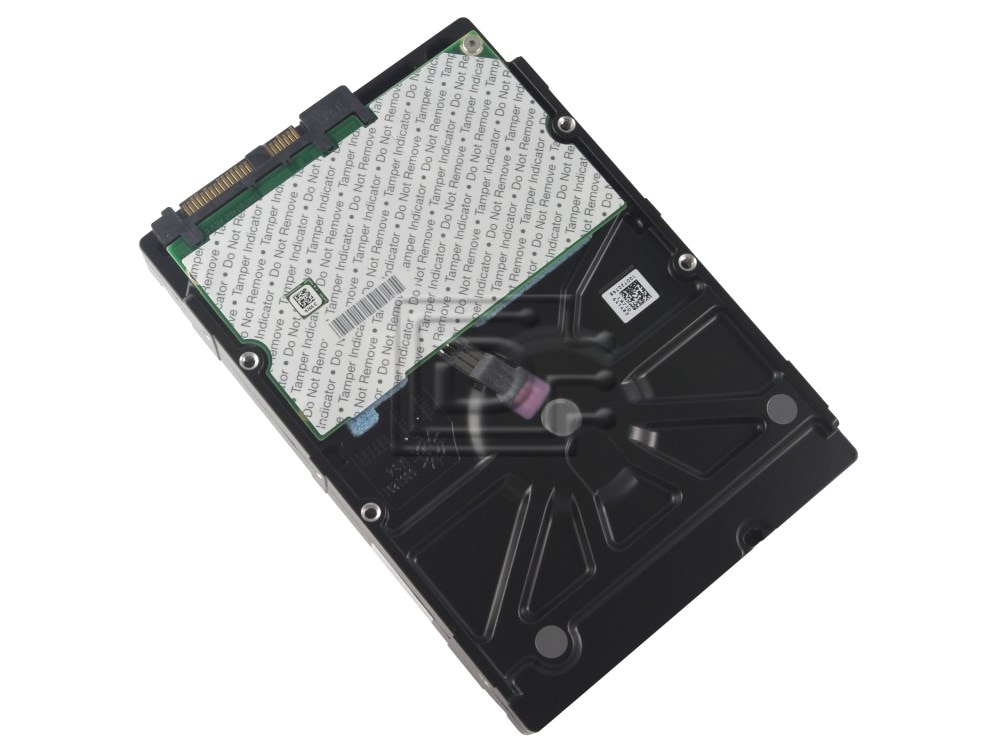

Dell 6P85J / Seagate Constellation ES.3 ST4000NM0063 4TB SED FIPS 140-2 SAS Hard Drive

Seagate Part #/MPN: ST4000NM0063

DiscTech Item #: SGT-ST4000NM0063-BN-OE-DEL


$199.00
$199.00

Enterprise Grade

Capacity: 4TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 182

Average Seek Time: 4.16ms

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 128MB

Dell 6P85J / Seagate Constellation ES.3 ST4000NM0063 4TB 7.2K 3.5" SED SAS 6Gbps Hard Drive - Brand New

Dell 6P85J / Seagate Constellation ES.3 ST4000NM0063 4TB / 4000GB SED FIPS 140-2 Encryption 7,200 RPM 6Gb/s SAS / Serial Attached SCSI HDD / Hard Disk Drive - Brand New

Alt MPN: 1C2270-251

Dell PNs: 6P85J, 06P85J



This Constellation ES.3 SAS drive offers the world’s largest capacities in a 3.5-inch form factor. Build cost-effective maximum capacity storage solutions with enterprise-class, 7200-RPM drives in capacities up to 4TB, with a sixth-generation SAS interface for easy integration. Among 3.5-inch form factor drives, the Constellation ES.3 features the lowest operating power in the industry-less than 10.68W on average.

Additionally, Constellation ES.3 hard drives further power reductions with enhanced PowerChoice™ technology. Purpose-built for enterprise environments, the PowerChoice feature enables the T10-compliant power management standard, allowing organizations to tailor systems for optimal energy usage resulting in up to 90% more power savings. The Constellation ES.3 provides enhanced error correction, super-parity and end-to-end SAS-based data integrity for accurate data storage each and every time. With its robust 7200-RPM performance, ramp load technology and a humidity sensor for optimum performance, it’s the perfect solution for maximizing your enterprise system availability. Powered by our multi-drive firmware and enhanced rotational vibration tolerance, the Constellation ES.3 can help to ensure consistent and reliable performance. In addition, protect data where it lives-on the drive- with our Self-Encrypting Drive option with FIPS 140-2 and Seagate Instant Secure Erase.



*Lead Free / RoHS compliant


Compatibility:



Product Specifications
Seagate Model #ST4000NM0063
Seagate Part #1C2270-251
InterfaceSAS 6 Gb/s
Performance Specifications
Rotational Speed7,200 RPM (nominal)
Cache128 MB
Transfer Rate, Max Ext (MB/s)600 MB/s
Sustained Data Rate OD175MB/s
Average Latency (ms)4.16
Reliability/Data Integrity
Nonrecoverable Read Errors per Bits Read1 in 1015
Annualized Failure Rate (AFR)0.63%
Physical Dimensions
English
Height1.028 Inches
Length5.787 Inches
Width4.00 Inches
Weight1.543 Lbs
Metric
Height26.1 mm
Depth147 mm
Width101.6 mm
Weight0.700 kg
Environmental Specifications
Shock
Operating Shock (Read)70/40 (2 ms)
Non-operating Shock300G (2 ms)
Acoustics (belssound power)
Idle Mode2.8
Seek Mode 03.0
Temperature (English)
Operating41° F to 131° F
Non-operating-40° F to 158° F
Temperature (Metric)
Operating5° C to 60° C
Non-operating-40° C to 70° C
Electrical Specifications
Current Requirements
Power Dissipation:
Read/Write11.27 Watts
Idle6.73 Watts




Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 6P85J 06P85J 1C2270-251

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
