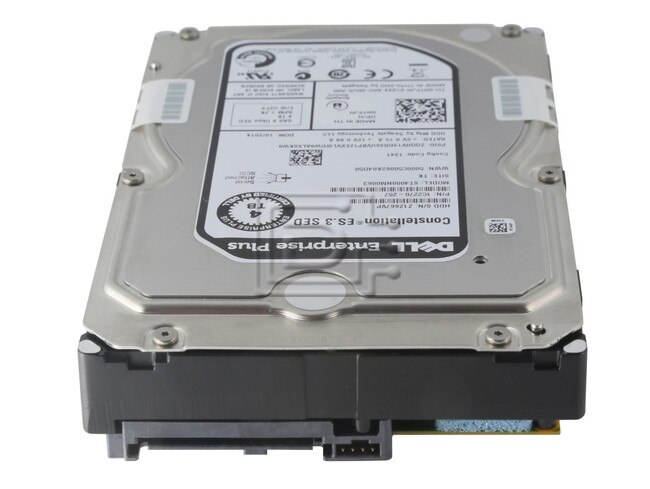

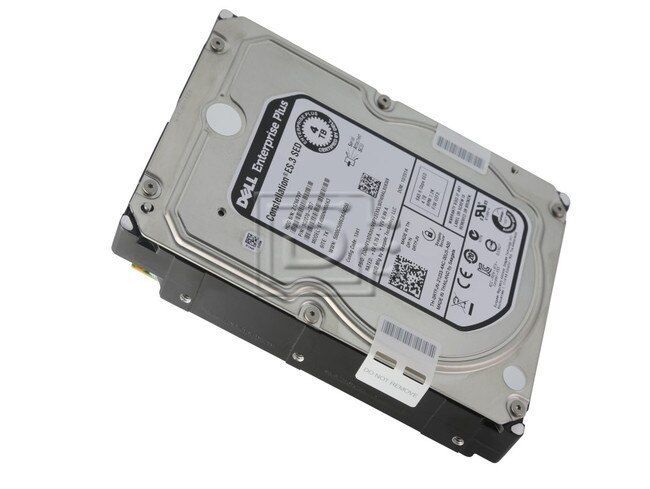

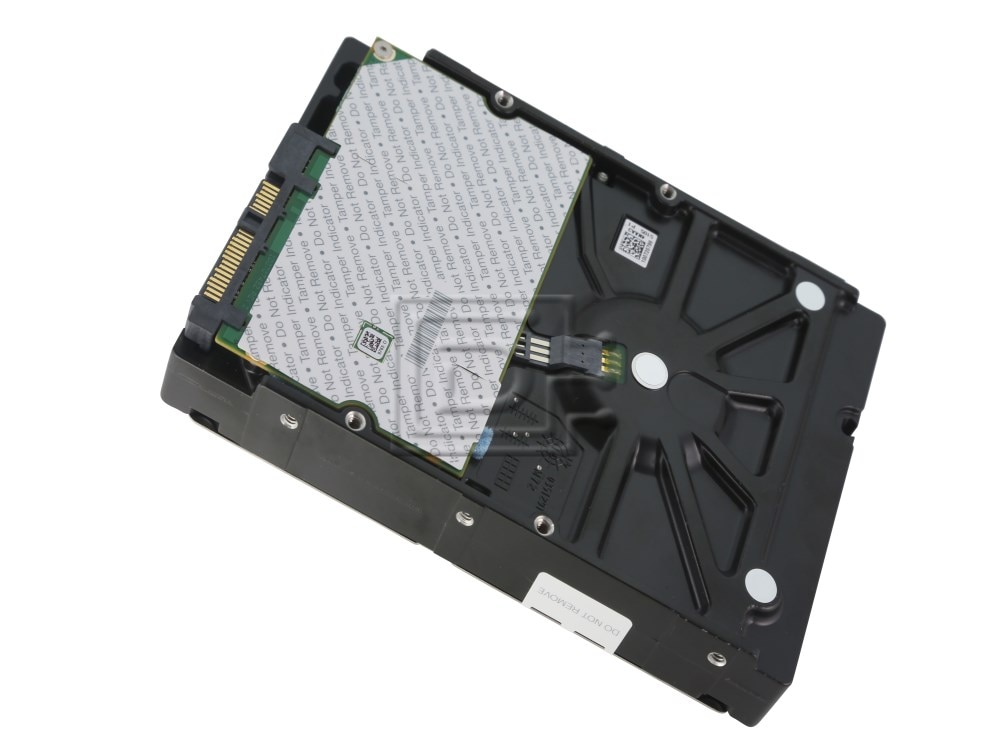

Dell Enterprise Plus RTFJN / ST4000NM0063 4TB SAS Hard Disk Drive
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 4TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 128MB |
Description
Dell Enterprise Plus RTFJN / Seagate Constellation ES.3 ST4000NM0063 / RTFJN 4TB / 4000GB w/ SED FIPS 140-2 option - SECURE ENCRYPTION
DELL ENTERPRISE PLUS
7.2K 3.5" SAS 4000GB / 4TB Hard Drive - Brand New OEM
Alt MPN: 1C2270-257
for Equallogic arraysDell Enterprise Plus PNs: RTFJN, 0RTFJN
This Constellation ES.3 SAS drive offers the world’s largest capacities in a 3.5-inch form factor. Build cost-effective maximum capacity storage solutions with enterprise-class, 7200-RPM drives in capacities up to 4TB, with a sixth-generation SAS interface for easy integration. Among 3.5-inch form factor drives, the Constellation ES.3 features the lowest operating power in the industry-less than 10.68W on average.
Additionally, Constellation ES.3 hard drives further power reductions with enhanced PowerChoice™ technology. Purpose-built for enterprise environments, the PowerChoice feature enables the T10-compliant power management standard, allowing organizations to tailor systems for optimal energy usage resulting in up to 90% more power savings. The Constellation ES.3 provides enhanced error correction, super-parity and end-to-end SAS-based data integrity for accurate data storage each and every time. With its robust 7200-RPM performance, ramp load technology and a humidity sensor for optimum performance, it’s the perfect solution for maximizing your enterprise system availability. Powered by our multi-drive firmware and enhanced rotational vibration tolerance, the Constellation ES.3 can help to ensure consistent and reliable performance. In addition, protect data where it lives-on the drive- with our Self-Encrypting Drive option with FIPS 140-2 and Seagate Instant Secure Erase.
*Lead Free / RoHS compliant
Compatibility
for Equallogic arrays
Specifications
Product Specifications | |
| Interface | SAS 6 Gb/s |
Performance Specifications | |
| Rotational Speed | 7,200 RPM (nominal) |
| Cache | 128 MB |
| Transfer Rate, Max Ext (MB/s) | 600 MB/s |
| Sustained Data Rate OD | 175MB/s |
| Average Latency (ms) | 4.16 |
Reliability/Data Integrity | |
| Nonrecoverable Read Errors per Bits Read | 1 in 1015 |
| Annualized Failure Rate (AFR) | 0.63% |
| Physical Dimensions | |
| English | |
| Height | 1.028 Inches |
| Length | 5.787 Inches |
| Width | 4.00 Inches |
| Weight | 1.543 Lbs |
| Metric | |
| Height | 26.1 mm |
| Depth | 147 mm |
| Width | 101.6 mm |
| Weight | 0.700 kg |
| Environmental Specifications | |
| Shock | |
| Operating Shock (Read) | 70/40 (2 ms) |
| Non-operating Shock | 300G (2 ms) |
| Acoustics (belssound power) | |
| Idle Mode | 2.8 |
| Seek Mode 0 | 3.0 |
| Temperature (English) | |
| Operating | 41° F to 131° F |
| Non-operating | -40° F to 158° F |
| Temperature (Metric) | |
| Operating | 5° C to 60° C |
| Non-operating | -40° C to 70° C |
| Electrical Specifications | |
| Current Requirements | |
| Power Dissipation: | |
| Read/Write | 11.27 Watts |
| Idle | 6.73 Watts |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: RTFJN 0RTFJN 1C2270-257
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
New Pull
Warranty
1 Year DiscTech Warranty
