Dell 770D8 / D162J Powervault MD3200i and MD3220i iSCSI 4 port controller Module

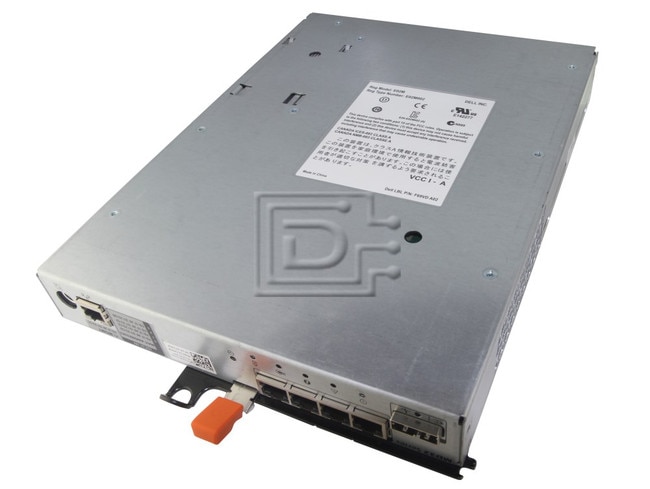

  • Dell 770D8 D162J 0D162J 0770D8 Powervault MD3200i MD3220i iSCSI Controller image 1

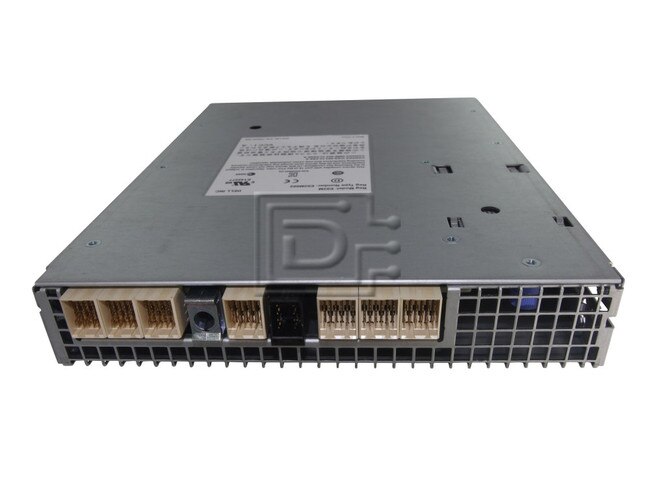

  • Dell 770D8 D162J 0D162J 0770D8 Powervault MD3200i MD3220i iSCSI Controller image 2

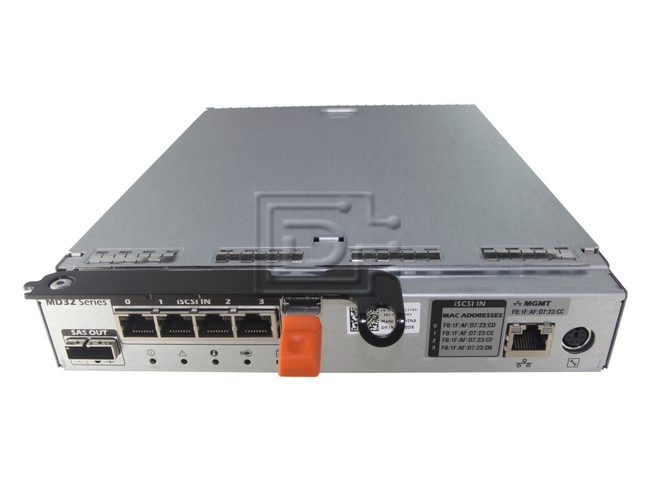

  • Dell 770D8 D162J 0D162J 0770D8 Powervault MD3200i MD3220i iSCSI Controller image 3

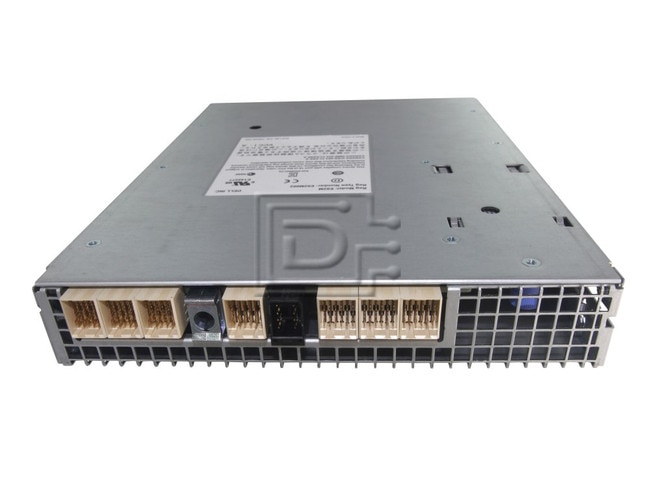

  • Dell 770D8 D162J 0D162J 0770D8 Powervault MD3200i MD3220i iSCSI Controller image 4
Dell 770D8 D162J 0D162J 0770D8 Powervault MD3200i MD3220i iSCSI Controller image 1
Dell 770D8 D162J 0D162J 0770D8 Powervault MD3200i MD3220i iSCSI Controller image 2
Dell 770D8 D162J 0D162J 0770D8 Powervault MD3200i MD3220i iSCSI Controller image 3
Dell 770D8 D162J 0D162J 0770D8 Powervault MD3200i MD3220i iSCSI Controller image 4

Dell Part #/MPN: 770D8

DiscTech Item #: DEL-770D8-UP-OE

$529.00
  • Used Pull
    Condition Levels Explained

    The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

Back
$529.00

Interface Types: SAS, Ethernet RJ45, PS2, SFF-8087, SFF-8088

Form Factor: 3.5" LFF Hard Drive

Encryption/SED Supported

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 2GB

Bays/Ports/Slots: 4

Wattage/VA: 600W

Voltage: 110-240V Multi

Dell 770D8 / D162J Powervault MD3200i and MD3220i iSCSI four (4) port EMM RAID controller Module - Used Pull

Dell 770D8 / D162J Powervault MD3200i and MD3220i iSCSI four (4) port EMM RAID controller Module - Used Pull

Each MD3200i or MD3220i will accept two of these controller modules.

Alternate Part Numbers: D162J 0D162J 0770D8

Compatibility: Dell MD3200i
Dell MD3220i

The Dell MD3200i and MD3220i storage enclosure contains two EMM RAID controller modules. Both are hot-pluggable and can be removed and installed independently without shutting down the enclosure.

This is a Dell original controller module with x1 SAS OUT, x1 Ethernet MGMT Port, and 4x iSCSI ports.

Supports Dell original SAS/SATA hard drives.

ROHS Compliant

Alternate MPNs: D162J 0D162J 0770D8

Weight: 6 lb

Warranty: 1 Year DiscTech
