INTEL Part #/MPN: SSDPE2ME800G4D
DiscTech Item #: INT-SSDPE2ME800G4D-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:4Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: NVMe U.2
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 2600
Average Seek Time: 20 µs/20 µs
Electrical Interface: PCIe - v3.0 - 32GBps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use
Compatible Systems: Dell 15th Gen. R650 / R750, Dell 14th Gen. R640/R740, Dell 14th Gen High Density ME4084/ME484, Dell 13th Gen. R730/T630

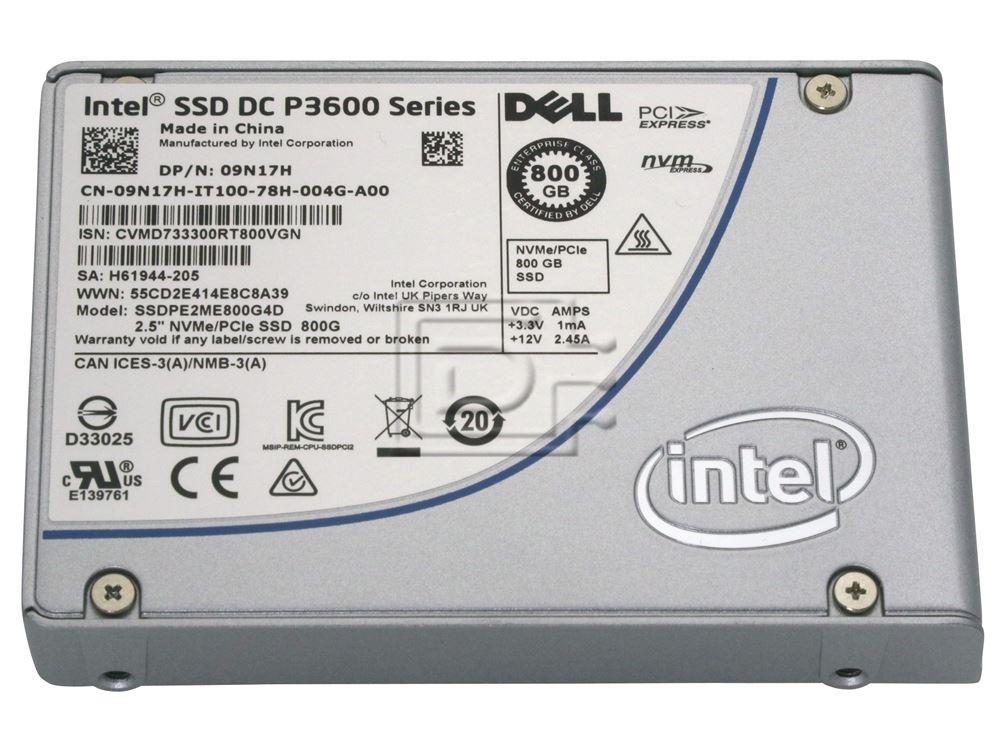

Dell 9N17H / Intel SSDPE2ME800G4D 800GB 2.5" U.2 MLC DC P3600 Series PCIe NVMe 3.0 Mixed Use MU SSD - Brand New
Intel SSDPE2ME800G4D 800GB 2.5" U.2 Multi-Level Cell Data Center P3600 Series Peripheral Component Interface Express Non-Volatile Memory Express 3.0 Mixed Use MU Solid State Disk Drive - Brand New
Intel Model Number: SSDPE2ME800G4D
Alt. Dell Part Number: 9N17H, 09N17H
Breakthrough performance – The Intel® Solid-State Drive Data Center Family for PCIe brings extreme data throughput directly to Intel® Xeon® processors with up to six times faster data transfer speed than 6 Gbps SAS/SATA SSDs. The performance of a single drive from the Intel SSD Data Center Family for PCIe, specifically the Intel® Solid-State Drive Data Center P3700 Series (460K IOPS), can replace the performance of 7 SATA SSDs aggregated through a host bus adapter (HBA) (approximately 500K IOPS).
Modernizes data center storage – Intel led the industry in creation of a new Non-Volatile Memory Express (NVMe) storage interface standard. NVMe overcomes SAS/SATA SSD performance limitations by optimizing hardware and software to take full advantage of NVM SSD technology.
Comprehensive solution – Intel is driving transition to NVMe SSDs by providing a comprehensive product line, enabling extensive system compatibility, delivering Intel drivers as well as supporting industry driver development, and completing numerous industry standard compliance certifications.
Proven quality and reliability – Intel SSD Data Center Family for PCIe devices are based on Intel-developed controller, firmware, and leading manufacturing process NAND flash memory. Rigorous qualification and compatibility testing ensures a highly reliable SSD. The Intel® SSD Data Center Tool provides a powerful set of management capabilities.
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard Drive) PCIe drives.
| Intel Model Number | SSDPE2ME800G4D |
|---|---|
| Dell Part Number | 9N17H 09N17H |
| Capacity | 800GB |
| Interface | PCIe NVMe 3.0 x4 |
| Product Specification | |
| Sequential Read | 2600 MB/s |
| Sequential Write | 1000 MB/s |
| Random Read (100% Span) | 430000 IOPS |
| Random Write (100% Span) | 50000 IOPS |
| Latency - Read | 20 µs |
| Latency - Write | 20 µs |
| Power - Active | 12W (write), 9W (read) |
| Power - Idle | 4W |
| Vibration - Operating | 2.17 GRMS |
| Vibration - Non-Operating | 3.13 GRMS |
| Shock (Operating and Non-Operating) | 1000G/0.5msec |
| Operating Temperature Range | 0°C to 70°C |
| Weight (g/lb) | 115/0.254 |
| Endurance Rating (Lifetime Writes) | 4.38 PBW (JEDEC Workload) |
| Mean Time Between Failures (MTBF) | 2,000,000 Hrs |
| Uncorrectable Bit Error Rate (UBER) | less than 1 sector per 1e17 bits read |
| Form Factor | 2.5" 15mm |
| Lithography | 20 nm |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 9N17H 09N17H
Weight: 1 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
