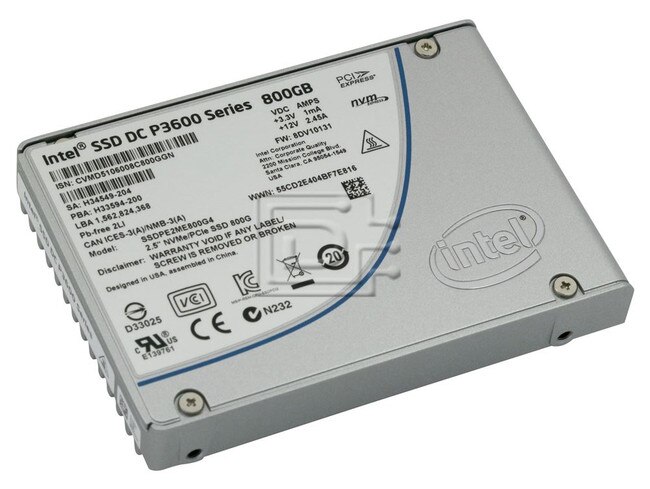

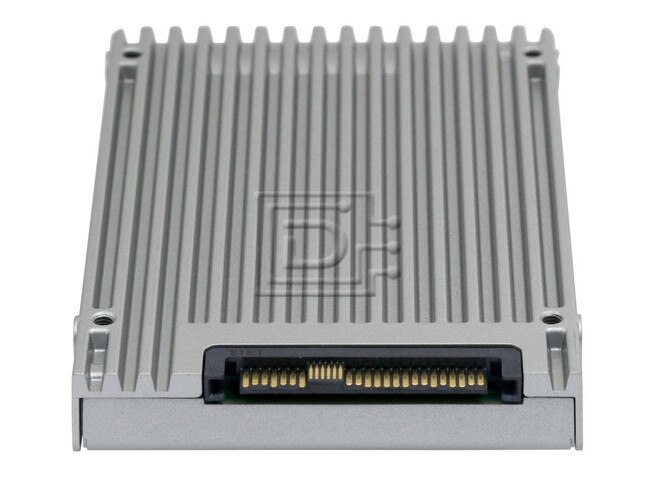

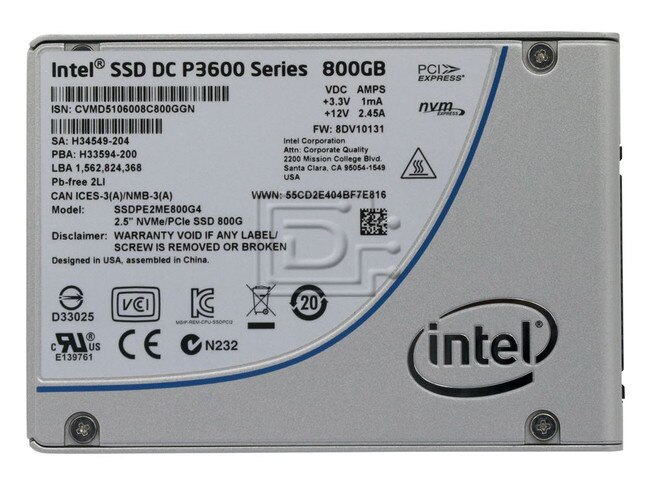

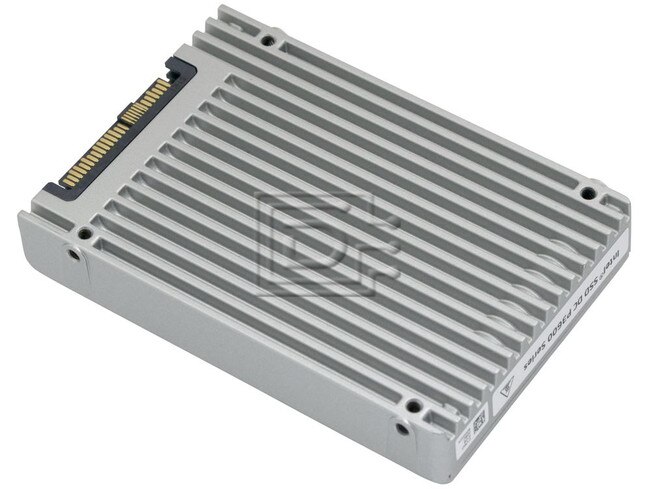

Intel SSDPE2ME800G401 / SSDPE2ME800G4 800GB 2.5" MLC DC P3600 Series PCIe NVMe 3.0 SSD

INTEL Part #/MPN: SSDPE2ME800G401

DiscTech Item #: INT-SSDPE2ME800G401-BN-5Y

$763.50

Brand New
Condition Levels Explained
The product is brand new.
Warranty:5 Year Manufacturer
Product Warranties Explained
The product has a manufacturer warranty for the time period specified.
Low Stock:Call for ETA
Stock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back

$763.50

Enterprise Grade

Capacity: 800GB

Speed: Solid State

Interface Types: PCIe

Form Factor: 2.5" SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 2600

Average Seek Time: 20 µs/20 µs

Electrical Interface: PCIe - v3.0 - 16GBps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Read Intensive / RI

Intel SSDPE2ME800G401 / SSDPE2ME800G4 800GB 2.5in MLC DC P3600 Series PCIe NVMe 3.0 SSD - Brand New

Intel SSDPE2ME800G401 800GB 2.5" Multi-Level Cell Data Center P3600 Series Peripheral Component Interface Express Non-Volatile Memory Express 3.0 Solid State Disk Drive - Brand New

Intel Model Number: SSDPE2ME800G4
Alt. Ordering Part Number: SSDPE2ME800G410

Breakthrough performance – The Intel® Solid-State Drive Data Center Family for PCIe brings extreme data throughput directly to Intel® Xeon® processors with up to six times faster data transfer speed than 6 Gbps SAS/SATA SSDs. The performance of a single drive from the Intel SSD Data Center Family for PCIe, specifically the Intel® Solid-State Drive Data Center P3700 Series (460K IOPS), can replace the performance of 7 SATA SSDs aggregated through a host bus adapter (HBA) (approximately 500K IOPS).

Modernizes data center storage – Intel led the industry in creation of a new Non-Volatile Memory Express (NVMe) storage interface standard. NVMe overcomes SAS/SATA SSD performance limitations by optimizing hardware and software to take full advantage of NVM SSD technology.

Comprehensive solution – Intel is driving transition to NVMe SSDs by providing a comprehensive product line, enabling extensive system compatibility, delivering Intel drivers as well as supporting industry driver development, and completing numerous industry standard compliance certifications.

Proven quality and reliability – Intel SSD Data Center Family for PCIe devices are based on Intel-developed controller, firmware, and leading manufacturing process NAND flash memory. Rigorous qualification and compatibility testing ensures a highly reliable SSD. The Intel® SSD Data Center Tool provides a powerful set of management capabilities.

Compatibility:

This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard Drive) PCIe drives.

Intel Model Number	SSDPE2ME800G4
Ordering Part Number	SSDPE2ME800G401 SSDPE2ME800G410
Capacity	800GB
Interface	PCIe NVMe 3.0 x4
Product Specification
Sequential Read	2600 MB/s
Sequential Write	1000 MB/s
Random Read (100% Span)	430000 IOPS
Random Write (100% Span)	50000 IOPS
Latency - Read	20 µs
Latency - Write	20 µs
Power - Active	12W (write), 9W (read)
Power - Idle	4W
Vibration - Operating	2.17 GRMS
Vibration - Non-Operating	3.13 GRMS
Shock (Operating and Non-Operating)	1000G/0.5msec
Operating Temperature Range	0°C to 70°C
Weight (g/lb)	115/0.254
Endurance Rating (Lifetime Writes)	4.38 PBW (JEDEC Workload)
Mean Time Between Failures (MTBF)	2,000,000 Hrs
Uncorrectable Bit Error Rate (UBER)	less than 1 sector per 1e17 bits read
Form Factor	2.5" 15mm
Lithography	20 nm
