Seagate Part #/MPN: ST1800MM0159
DiscTech Item #: DEL-CGKW9-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 1.8TB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 4Kn
Average Seek Time: 2.86
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 128MB

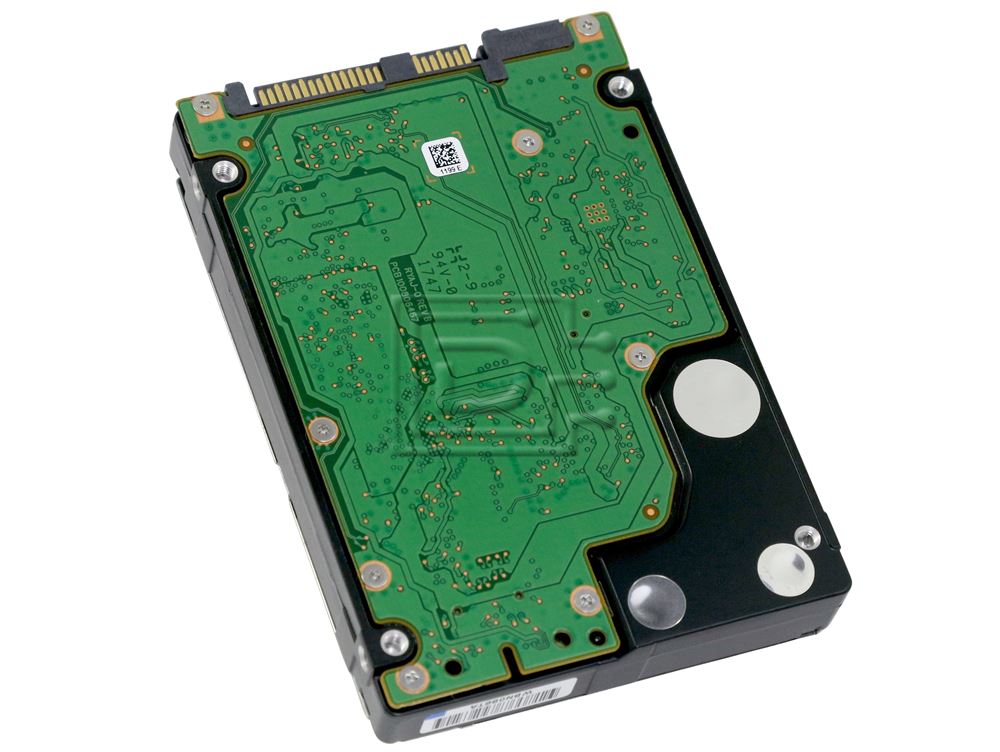

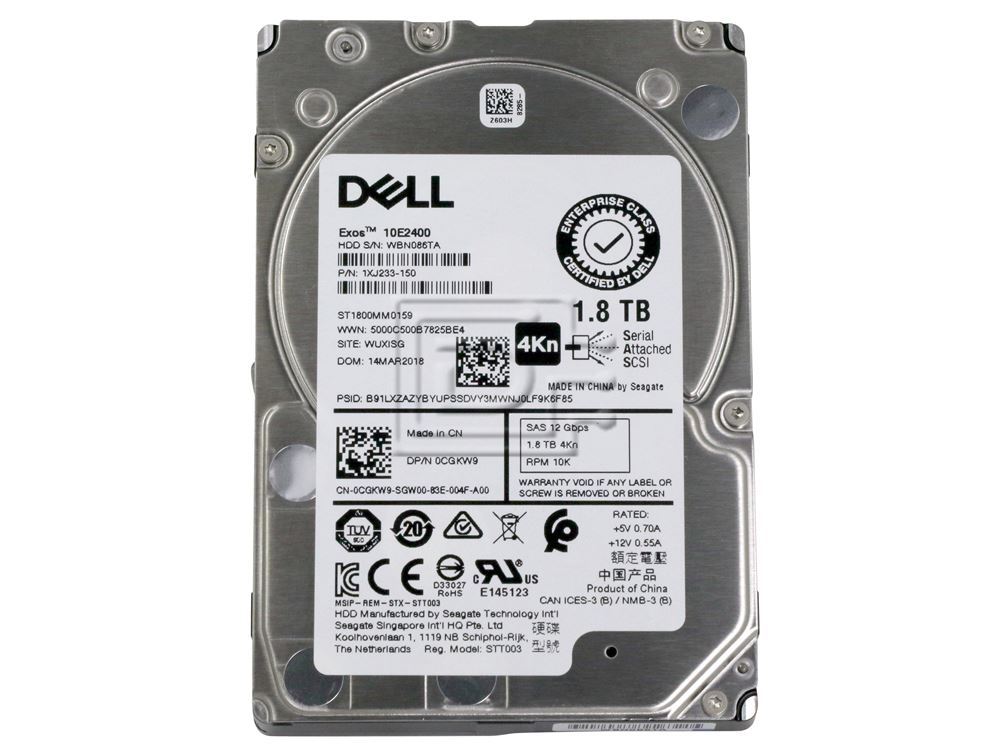

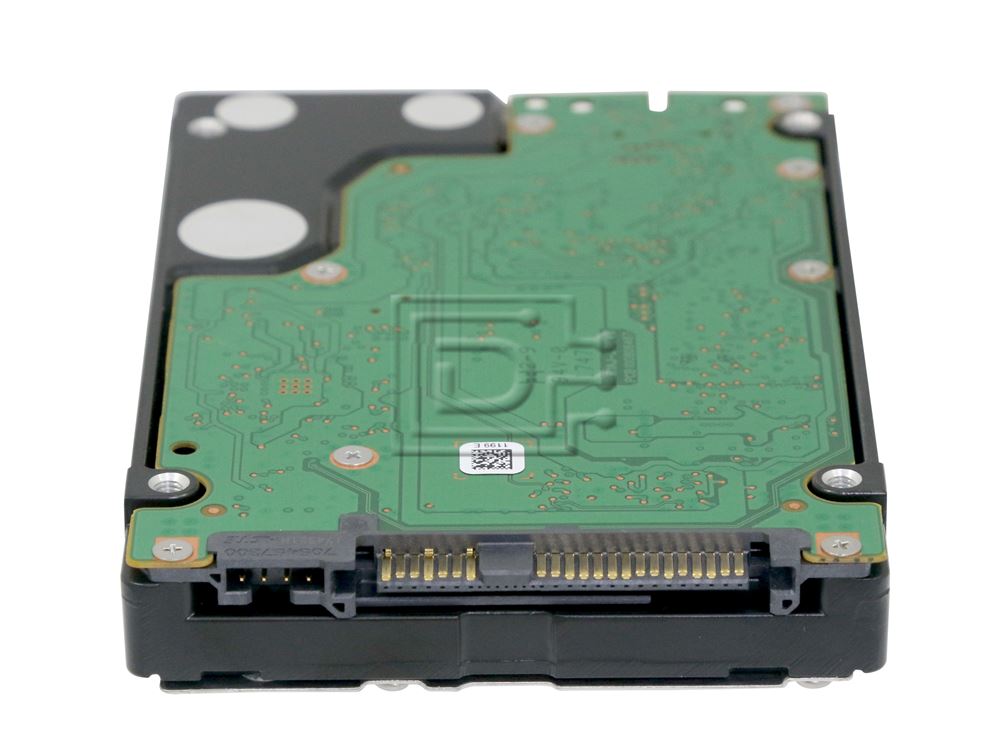

Dell CGKW9 / Seagate ST1800MM0159 1.8TB 12Gbps 10K 2.5in SFF Enterprise 4Kn SAS Hard Drive - Brand New OEM
Dell CGKW9 / Seagate ST1800MM0159 1.8TB 12Gbps 10K 2.5in SFF Enterprise 4Kn SAS Hard Drive
This is a 4Kn format drive.
The AL14SEB Enterprise Performance HDD models combine the performance of 10,500rpm spindle speed with capacities up to 1800 GB in a compact, power efficient 2.5-inch form factor. Engineered for mission critical IT operations, the AL14SEB models support 12.0 Gbit/s SAS and provide 512 Byte per sector native format required for legacy applications and operating environments while delivering sustained transfer rates reaching 205 MiB/s. In addition, the AL14SEB Series helps to reduce operating costs by improving access time and reducing power consumption when compared with legacy 3.5-inch Enterprise Performance HDD models.
Key Features
- Industry Standard 2.5-inch 15mm Height Form Factor
- 1800GB, 1200GB, 900 GB, 600 GB, 450 GB and 300 GB Capacity Models
- 10,500 rpm Rotational Performance or low latency
- Dual-Port 12.0 Gbit/s SAS Interface
- MTTF of 2,000,000 hours
- 24/7 Mission Critical Workload Performance and Data Reliability
- RoHS Compatible, Halogen Free and Antimony Free
Applications
- Hybrid and Mainstream Storage Array
- Mid-Range Volume Servers
- Blade and Rack mount Servers
- Mission-Critical Systems
- Edge Servers and Content Delivery Infrastructure
ALT P/N: CGKW9 0CGKW9
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.
| Specifications | |
|---|---|
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Formatted Capacity | 1800 GB / 4Kn only |
| Environmental Compliance | RoHS Compatible |
| Performances | |
| Buffer Size | 128 MiB |
| Rotation Spe | 10,500 rpm |
| Average Latency Time | 2.86 ms |
| Reliability | |
| Unrecoverable Error Rate | 10 per 10^17 bits read |
| Power Requirements | |
| Supply Voltage | 5 V ±5 % , 12 V ±5 % |
| Power Consumption ( Read / Write ) | 8.7 W Max. |
| Power Consumption ( Idle-B ) | 4.0 W Typ. |
| Dimensions | |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 mm ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 230 g Max. |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: CGKW9 0CGKW9 1XJ233-150
Weight: 1 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
