Dell JY57X / Seagate ST1800MM0159 1.8TB 512e Hard Disk

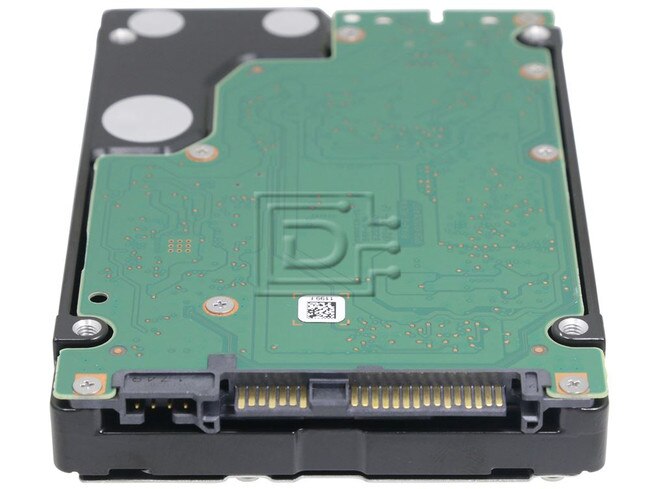

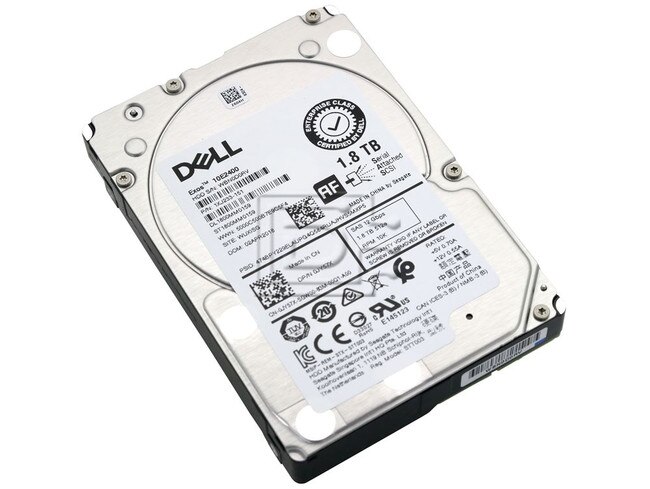

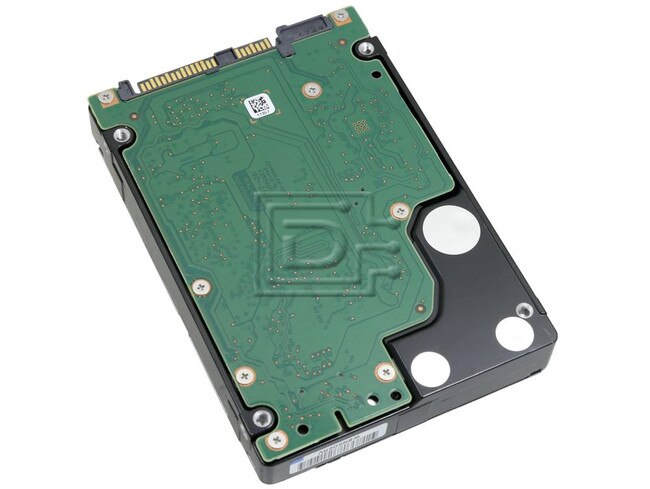

Seagate ST1800MM0159 JY57X 0JY57X 1XJ233-151 SAS Hard Drive Image 1 imageSeagate ST1800MM0159 JY57X 0JY57X 1XJ233-151 SAS Hard Drive Image 2 imageSeagate ST1800MM0159 JY57X 0JY57X 1XJ233-151 SAS Hard Drive Image 3 imageSeagate ST1800MM0159 JY57X 0JY57X 1XJ233-151 SAS Hard Drive Image 4 image
  • In Stock:1
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$249.00

Capacity:1.8TB
Speed:10K RPM
Interface Types:SAS
Form Factor:2.5" SFF Server Drive
Electrical Interface:SAS-3 12Gbps
RAM:256MB
Click to see more 1.8TB SAS 10K RPM Drives

Description

Dell JY57X / 0JY57X Seagate EXOS 10E2400 ST1800MM0159 1.8TB 12Gbps 10K RPM 2.5" 512e SFF Enterprise ISE SAS HDD - Brand New OEM

Dell JY57X / 0JY57X Seagate EXOS 10E2400 ST1800MM0159 1.8TB 12Gbps 10K RPM 2.5" 512e SFF Enterprise ISE SAS HDD - Brand New OEM

Seagate Exos 10E2400 drives have the following standard features:

• 128 - deep task set (queue)

• 256MB / 128MB data buffer

• 3.0 / 6.0 / 12.0 Gb Serial Attached SCSI (SAS) interface

• 8MB NVC-backed write cache 512E/4Kn only

• Dedicated head load/unload zone and automatic shipping lock

• Drive Self Test (DST)

• Dynamic spindle brake

• ECC maximum burst correction length of 520 bits for 512 byte blocks and 3000 bits for 4K byte blocks.

• Embedded servo design

• Firmware downloadable using the SAS interface

• Flawed logical block reallocation at format time

• Idle Read After Write (IRAW)

• Industry standard SFF 2.5-inch dimensions

• Integrated dual port SAS controller supporting the SCSI protocol

• Jumperless configuration

• Multi-Sensor Magnetic Recording (implements dual readers)

• No preventive maintenance or adjustments required

• Power Balance supported (see Section 6.2 on page 27)

• Power Choice

• Programmable auto write and read reallocation

• Programmable logical block reallocation scheme

• RAID Rebuild ™

• Reallocation of defects on command (Post Format)

• SAS Power Disable

• Self diagnostics performed when power is applied to the drive

• Support for SAS expanders and fanout adapters

• Supports up to 32 initiators

• T10 Fast Format supported (see Section 4.2.2)

• TurboBoost 16GB read cache 512E/4Kn only

• User-selectable logical block sizes for 4096 native models (4096, 4160 or 4224 bytes per logical block)

• User-selectable logical block sizes for 512 emulation and native models (512, 520 or 528 bytes per logical block)

• Vertical, horizontal, or top down mounting

Alt Model Number: JY57X / 0JY57X 1XJ233-151

Compatibility

This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.

Specifications

Quick Specs
Model NumberST1800MM0159
Alt Model NumberJY57X
Storage Capacity1.8TB/1800GB
Spindle Speed10000 RPM
Form Factor2.5"
InterfaceSAS 12Gb/s

ROHS Compliant

Alternate MPNs: JY57X 0JY57X 1XJ233-151

Weight: 1 lb

Warranty: 1 Year DiscTech

Condition

  • Brand New
    Condition Levels Explained

    The product is brand new.

    • Warranty

    1 Year DiscTech Warranty
