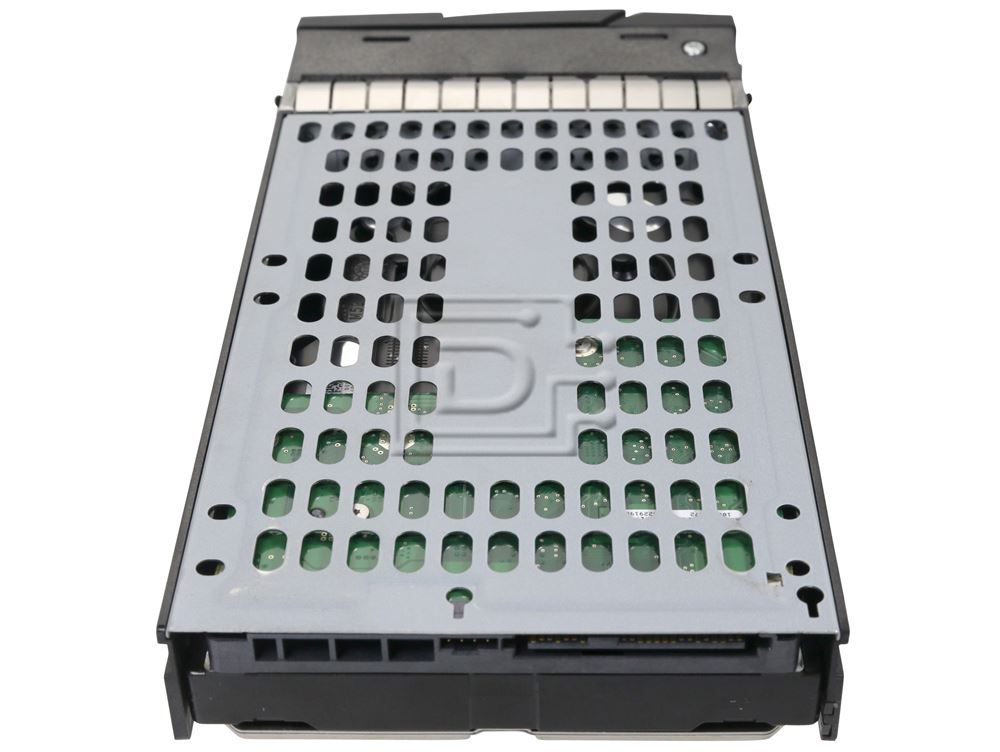

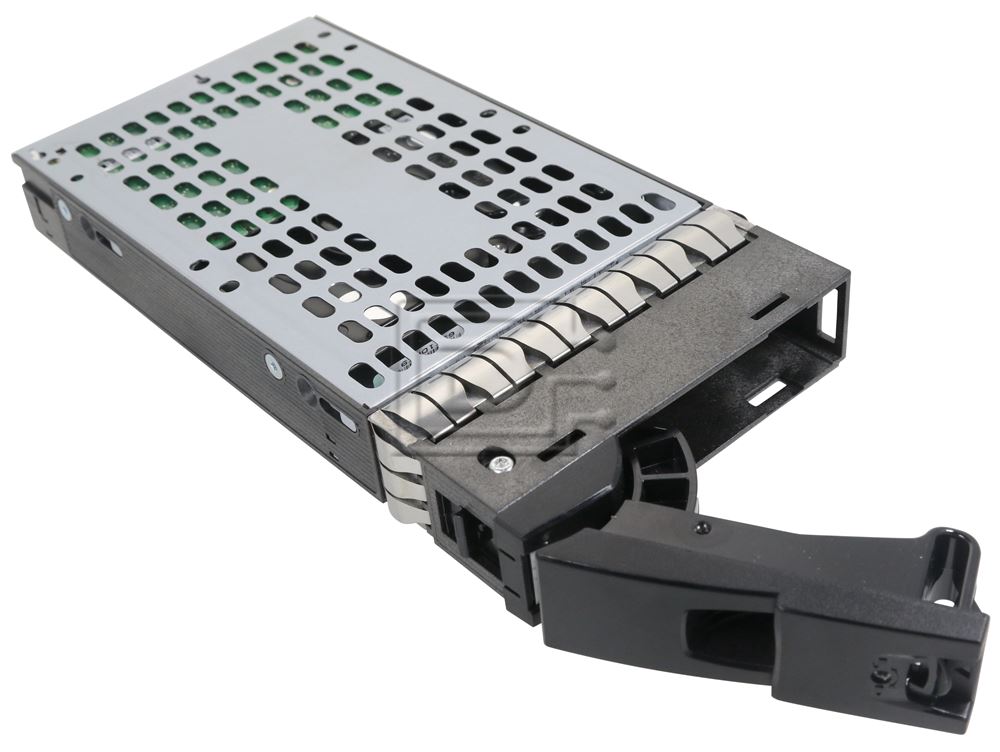

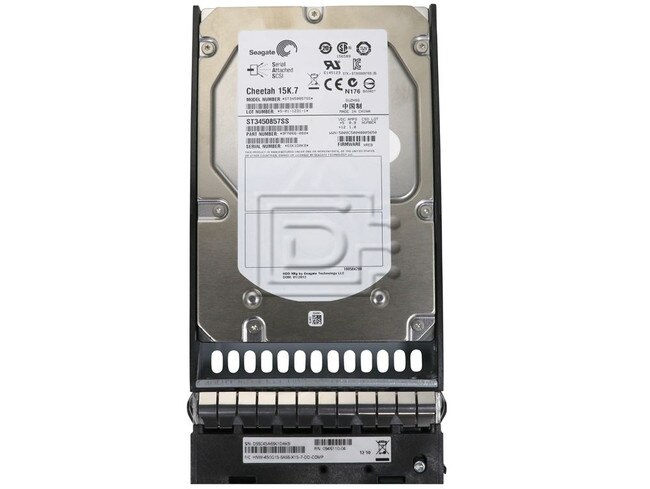

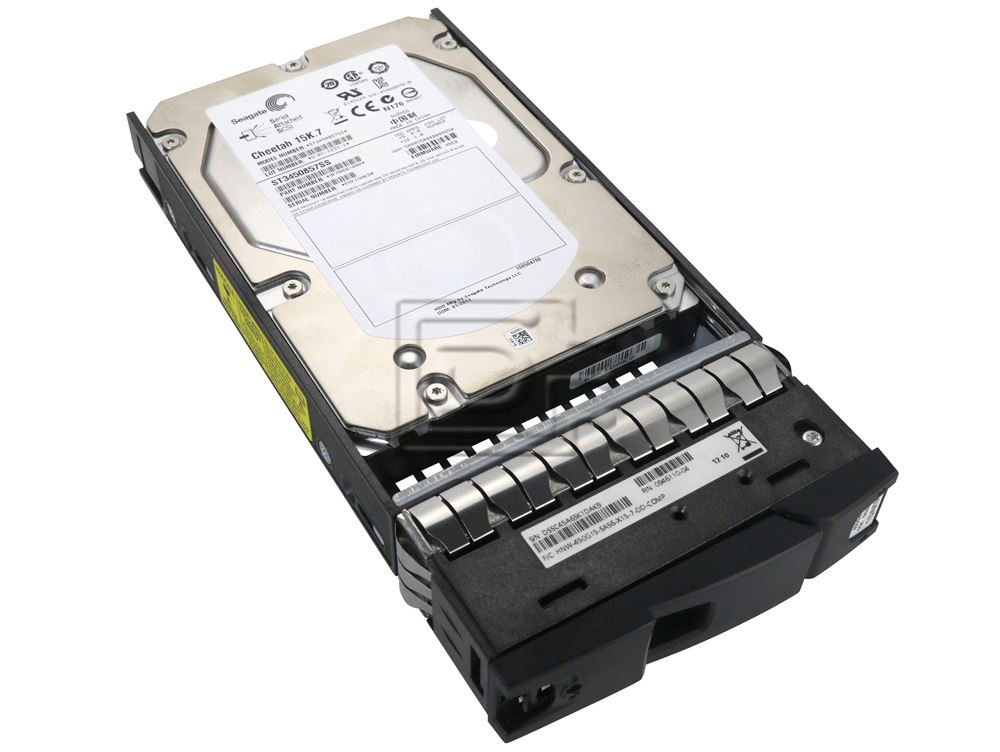

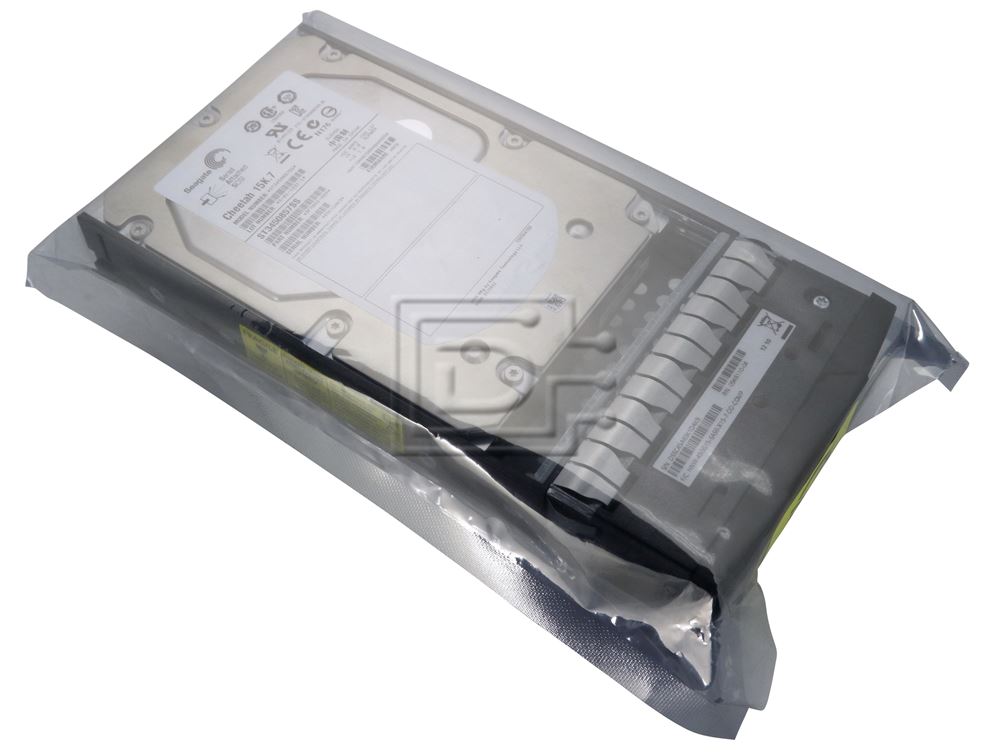

Dell Equallogic Compellent Part #/MPN: 3NM49
DiscTech Item #: DEC-3NM49-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 450GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 122 - 204
Average Seek Time: 3.4 / 3.9
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 16MB
ALT P/N: 03NM49 9FM066-080 5000C5003A457E30
Key Features and Benefits
- Highest-performance 3.5-inch Tier 1 drive
- Highest-capacity Tier 1 drive (600 GB)
- Highest reliability rating in the industry
- Seagate PowerTrim technology dynamically reduces power usage.
- Supports 6-Gb/s SAS 2.0
Key Advantages
- Third-generation perpendicular recording for maximum capacity.
- Unprecedented performance with a 16 percent increase in sustained data rate over the last generation, up to 171 MB/sec.
- Industry’s highest 3.5-inch drive reliability at 1.6-million-hours MTBF.
- Seagate proprietary PowerTrim technology provides up to 21 percent improvement over the last generation in watts/GB at idle.
- Advanced read/write technology delivers unrecoverable error rate of 1x10E16 and AFR of 0.55 percent
- Available in 6Gb/s SAS interfaces
Compatibility: This Drive is compatible with Dell Compellent Servers and Arrays.
| Specifications | |
| Model number | 3NM49 |
| Model Name | |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 25.4 mm |
| Width | 101.6 mm |
| Length | 146.52 mm |
| Weight | 0.676 kg |
| Formatted Capacity | 450 Gbytes |
 | |
| Internal Transfer Rate (min) | 1450 Mbits/sec |
| Internal Transfer Rate (max) | 2370 Mbits/sec |
| External (I/O) Transfer Rate (max) | 600 MBytes/sec |
| |
| Average Seek Time, Read | 3.4 msec typical |
| Average Seek Time, Write | 3.9 msec typical |
| Track-to-Track Seek, Read | 0.2 msec typical |
| Track-to-Track Seek, Write | 0.4 msec typical |
| Average Latency | 2 msec |
| |
| Default Buffer (cache) Size | 16 Mbytes |
| Number of Discs (physical) | 3 |
| Number of Heads (physical) | 6 |
| |
| Power (Typical) | 14.6 watts |
| Power (Idle) | 10.1 watts |
| |
| Max Operating Shock (2-msec) | 60 Gs |
| Max Nonoperating Shock (2-msec) | 300 Gs |
| Operating Vibration (max) | 1.0 Gs |
| Nonoperating Vibration (max) | 3.0 Gs |
| |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustics, Idle (sound power, typ) | 3.6 Bels |
| MTBF (Hours) | 1,600,000 hours |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
| Supports S.M.A.R.T. | Yes |
ROHS Compliant
Alternate MPNs: 03NM49 9FM066-080 5000C5003A457E30
Weight: 2.5 lb
Warranty: 1 Year DiscTech
