Toshiba Part #/MPN: KCD5XLUG3T84
DiscTech Item #: TOS-KCD5XLUG3T84-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Call for Lead TimeSpecial Order - Call for Lead Time
This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 3.84TB
Speed: Solid State Memory
Interface Types: NVMe U.2, PCIe
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Electrical Interface: PCIe - v3.0 - 16GBps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Read Intensive

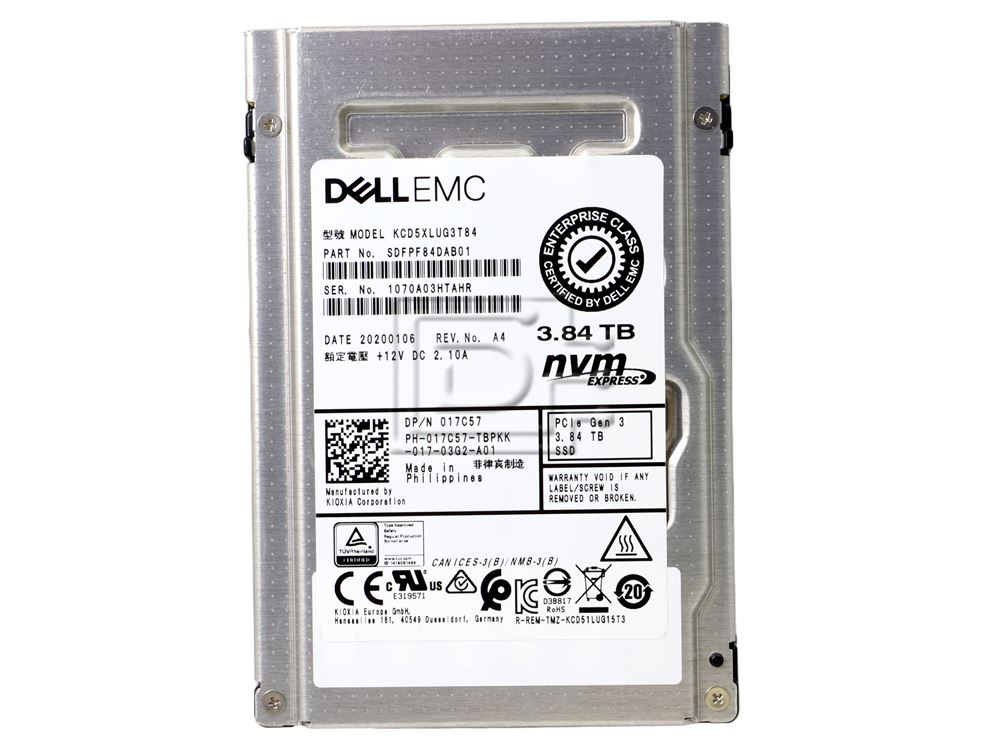

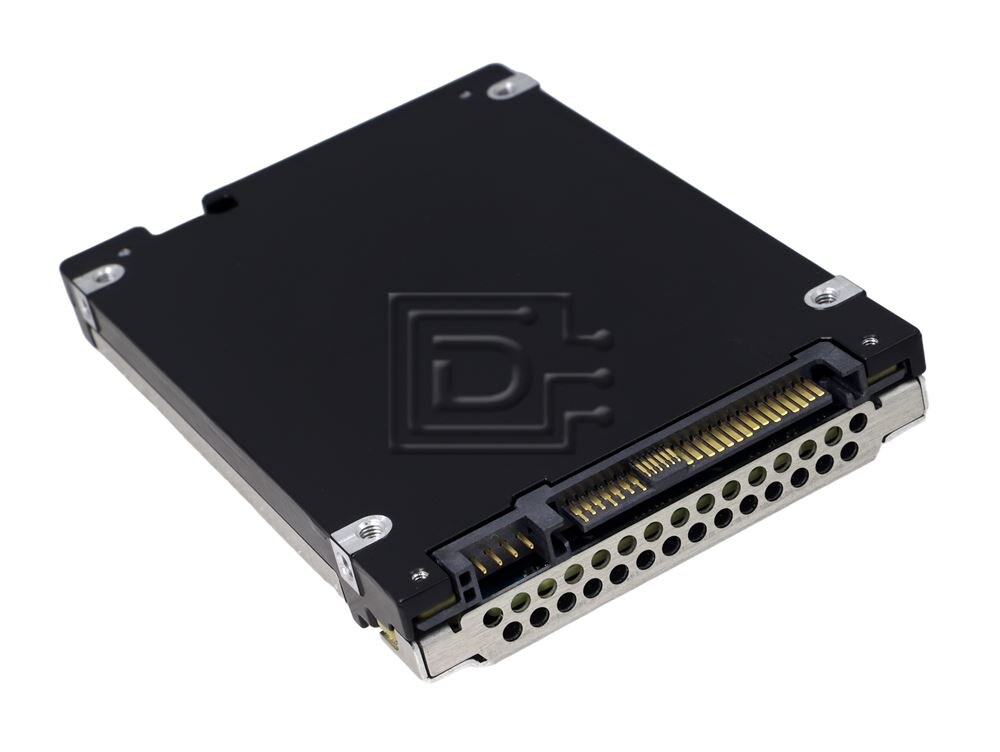

Dell EMC 17C57 / Toshiba Kioxia KCD5XLUG3T84 CD5 Series 3.84TB 2.5" SFF BICS FLASH TLC PCIe 3.0 x4 U.2 NVMe Data Center SSD - Brand New OEM
Dell EMC 17C57 / Toshiba Kioxia KCD5XLUG3T84 CD5 Series 3.84TB 2.5" SFF BICS FLASH TLC PCIe 3.0 x4 U.2 NVMe Data Center SSD - Brand New OEM
Toshiba Model Number: KCD5XLUG3T84
Alt. Dell Part Number: 17C57 / 017C57
CD5 SERIES - DATA CENTER NVMe™ SSD
MAIN SPECIFICATIONS
The CD5 Series is a read-intensive data center NVMe™ SSD that is optimized to support broad range of scale-out and cloud applications that include Big Data/IoT, Online Transaction Processing, and Virtualization. CD5 SSDs, with a PCIeⓇ Gen3x4 lane interface, deliver consistent performance up to 550K IOPS (random read) and 50K IOPS (random write), with active power consumption of 11-13W.
Featuring Toshiba Memory Corporation’s 64-layer BiCS FLASH™ 3D TLC memory, CD5 SSDs deliver <1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 7.68TB in a 2.5 inch form factor, making them suited for hyperscale data center applications.
KEY FEATURES
- PCIeⓇ Gen3 x4 lane interface with single port support
- NVMeTM Rev. 1.3a compliant
- Capacities from 960GB to 7.68TB
- Up to 550K random read IOPS (single port (1x4) mode)
- Low power consumption of 11-13W active power
- 2.5 inch small form factor, 15mm Z-Height
- Power loss protection
- End-to-end data protection
- Sanitize Instant Erase (SIE) option *Note 1,4
- Self-encrypting drive (SED) option *Note 2,4
- Self-encrypting drive (SED), FIPS 140-2 option *Note 2,3,4
APPLICATIONS
- Hyperscale
- IoT and Big data analytics
- Online transaction processing (OLTP) (transactional and relational databases)
- Virtualized environments
- Streaming media (Content delivery networks(CDN))
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard U.2 Drive) NVMe PCIe drives.
| Toshiba Model Number | KCD5XLUG3T84 |
|---|---|
| Dell Part Number | 17C57 017C57 |
| Capacity | 3840GB / 3.84TB |
| Interface | PCIe U.2 NVMe 3.0 x4 |
| Product Specification | |
| Sequential Read | 3140 MB/s |
| Sequential Write | 1520 MB/s |
| Random Read (100% Span) | 465000 IOPS |
| Random Write (100% Span) | 40000 IOPS |
| Interface | PCIe Gen3 x4: NVMe Rev.1.3a |
| Interface Speed | 32 GT/s (Gen3 x4) |
| Memory Type | BICS FLASH TLC |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 17C57 017C57
Weight: 1 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
