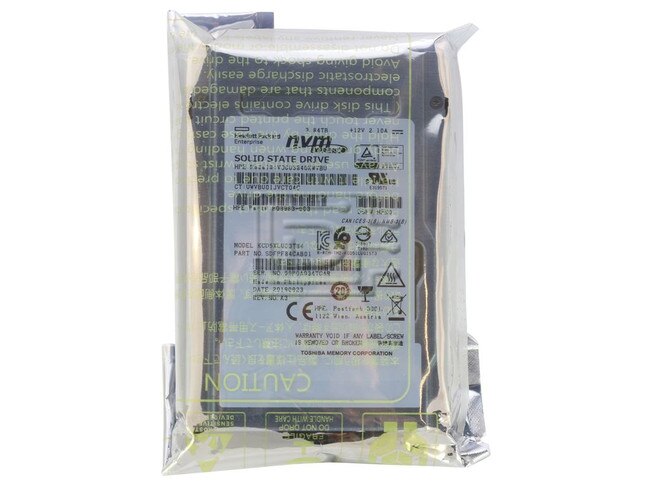

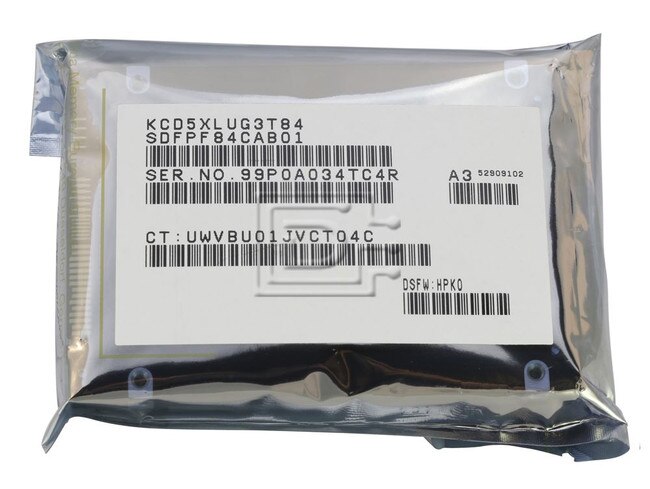

HPE P08983-003 / Toshiba Kioxia KCD5XLUG3T84 CD5 Series 3.84TB 2.5" PCIe 3.0 x4 U.2 NVMe SSD

Toshiba Part #/MPN: KCD5XLUG3T84

DiscTech Item #: KIO-KCD5XLUG3T84-BN-OE-HPI


$379.99

Items highly allocated. Please call for an ETA.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$379.99

Items highly allocated. Please call for an ETA.


Enterprise Grade

Capacity: 3.84TB

Speed: Solid State Memory

Interface Types: NVMe U.2, PCIe

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Electrical Interface: PCIe - v3.0 - 16GBps

SSD Type: TLC

SSD Endurance DWPD: Enterprise Read Intensive

HPE P08983-003 / Toshiba Kioxia KCD5XLUG3T84 / VO003840KWVBU CD5 Series 3.84TB 2.5" SFF BICS FLASH TLC PCIe 3.0 x4 U.2 NVMe Data Center SSD - Brand New OEM

HPE P08983-003 / Toshiba Kioxia KCD5XLUG3T84 / VO003840KWVBU  CD5 Series 3.84TB 2.5" SFF BICS FLASH TLC PCIe 3.0 x4 U.2 NVMe Data Center SSD - Brand New OEM

Toshiba Model Number: KCD5XLUG3T84

CD5 SERIES - DATA CENTER NVMe™ SSD

MAIN SPECIFICATIONS

The CD5 Series is a read-intensive data center NVMe™ SSD that is optimized to support broad range of scale-out and cloud applications that include Big Data/IoT, Online Transaction Processing, and Virtualization. CD5 SSDs, with a PCIeⓇ Gen3x4 lane interface, deliver consistent performance up to 550K IOPS (random read) and 50K IOPS (random write), with active power consumption of 11-13W.

Featuring Toshiba Memory Corporation’s 64-layer BiCS FLASH™ 3D TLC memory, CD5 SSDs deliver <1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 7.68TB in a 2.5 inch form factor, making them suited for hyperscale data center applications.

KEY FEATURES

  • PCIeⓇ Gen3 x4 lane interface with single port support
  • NVMeTM Rev. 1.3a compliant
  • Capacities from 960GB to 7.68TB
  • Up to 550K random read IOPS (single port (1x4) mode)
  • Low power consumption of 11-13W active power
  • 2.5 inch small form factor, 15mm Z-Height
  • Power loss protection
  • End-to-end data protection
  • Sanitize Instant Erase (SIE) option *Note 1,4
  • Self-encrypting drive (SED) option *Note 2,4
  • Self-encrypting drive (SED), FIPS 140-2 option *Note 2,3,4

APPLICATIONS

  • Hyperscale
  • IoT and Big data analytics
  • Online transaction processing (OLTP) (transactional and relational databases)
  • Virtualized environments
  • Streaming media (Content delivery networks(CDN))


Compatibility:

This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard U.2 Drive) NVMe PCIe drives.

Similar & comparable to:
Western Digital WDS384T1D0D
Micron 7300 Pro MTFDHBE3T8TDF-1AW1ZAB
Kioxia KCM5DRUG3T84
Micron 9300 MTFDHAL3T8TDP-1AT1ZABYY
Samsung MZ-QLB3T80
Samsung MZ-QL33T80 PCIE MZQL23T8HCLS-00B7C
Samsung MZQLB7T7HALS-00007 PM983 Gen3.0 x4 MZQLB3T80
HPE HFS3T8GETFEI-D430A

Toshiba Model NumberKCD5XLUG3T84
Product Specification
Capacity3840GB / 3.84TB
InterfacePCIe U.2 NVMe 3.0 x4
Sequential Read3140 MB/s
Sequential Write1520 MB/s
Random Read (100% Span)465000 IOPS
Random Write (100% Span)40000 IOPS
InterfacePCIe Gen3 x4: NVMe Rev.1.3a
Interface Speed32 GT/s (Gen3 x4)
Memory TypeBICS FLASH TLC

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: VO003840KWVBU SDFPF84CAB01 P08983-003 KCD51LUG3T84

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
