SAMSUNG Part #/MPN: MZILS1T9HEJH0D3
DiscTech Item #: SAM-MZILT1T9HAJQAD3-BN-OE-DEL
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Read Intensive
Compatible Systems: Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610

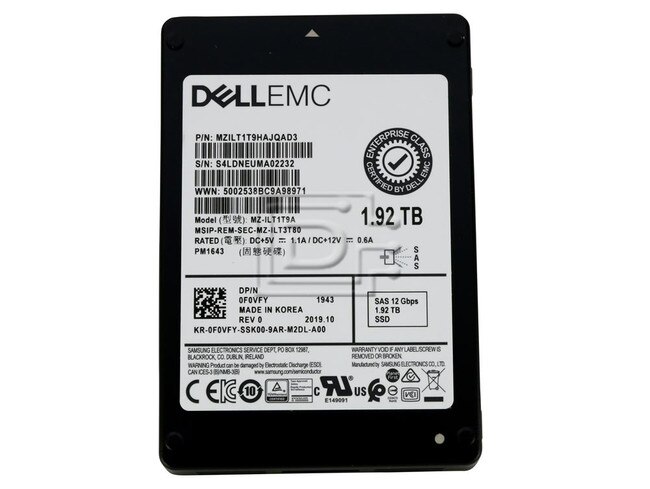

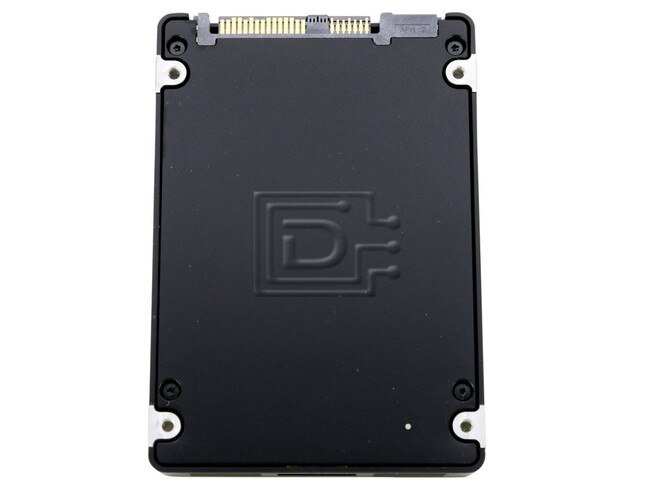

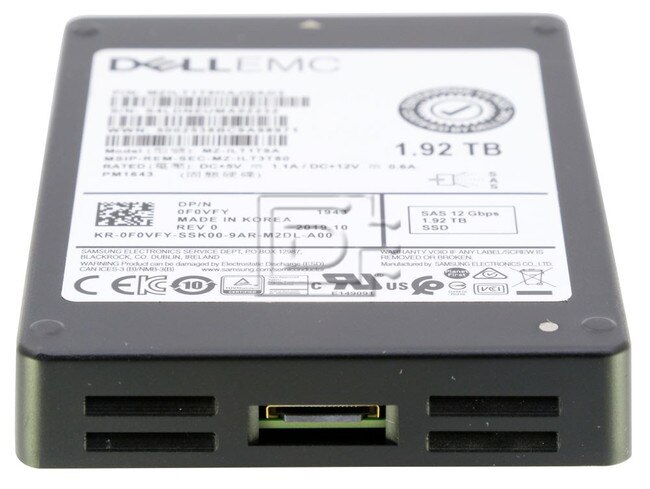

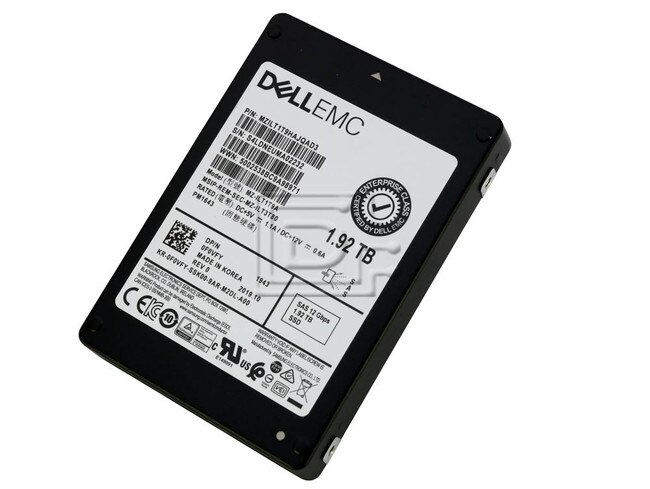

Dell Enterprise F0VFY / Samsung PM1643 MZILT1T9HAJQAD3 / MZ-ILT1T9A 1.92TB 2.5in SFF SSD 12Gb/s ISE SAS Read Intensive Solid State Drive - Brand New OEM
Samsung Enterprise Solid State Drives (SSDs) are being used increasingly as data storage media in computing, communication, and multimedia devices. Most SSDs use NAND Flash memory as the storage media, which is capable of retaining data without an external power supply. A typical SSD consists of two main components: the data storage device and a controller for the storage device that acts as an interface between the SSD and the host system. The SSD controller manages the interfaces from both the host side and the device side, which includes mapping bad data blocks, caching read/write data, and error checking and correction (ECC); and the controller's built-in ROM contains the firmware needed to control the drive. An SSD is an example of an embedded system, and needs a Real-Time OS (RTOS) for its operation. Several open source and proprietary firmware solutions are available for SSD controllers
The primary advantage of using Samsung SSDs is their lack of moving parts, resulting in extremely short startup and shutdown/standby times. SSDs offer superior reliability compared to traditional Hard Disk Drives (HDDs). Advances in semiconductor flash memory technologies have enabled the development of SSDs that are equal in capacities to HDDs and can be used as direct replacements. SSDs also prove to be highly cost effective in-use due to their much lower power consumption and maintenance costs. As the world leader in semiconductor memory technology, Samsung offers a comprehensive range of SSDs for deployment in a wide range of devices across every industry segment.
The 4 KB random read/write performance was 90 K IOPS/14 K IOPS maximum to the PM1633a reaching up to 99 K IOPS/18 K IOPS.
In addition they provides the following same powerful functions as the previous generation PM853T
- Power-loss Protection. Protects from loss of data due to sudden power disconnections by using a tantalum capacitor build into the PM863 to safely and accurately copy and store user data written to the DRAM (the volatile memory in the SSD) to the NAND flash memory
- End-to-end Protection. Safeguards user data in the PM863 along the entire data transfer path, from the host interface to the NAND flash memory, by duplicating the Cyclical Redundancy Check (CRC) and Error Check and Correct (ECC) at each section of the path to ensure accuracy and safety at all time.
- Dynamic Thermal Throttling. Monitors the temperature of the SSD automatically and, if the SSD rises above safe levels, it forcibly delay I/O processing until the temperature of the SSD drops to normal levels, ensuring the safe use of expensive servers.
DP/N: F0VFY / 0F0VFY
Alt MP/N: MZILT1T9HAJQAD3 / MZ-ILT1T9A / MZ-ILT3T80
|Form Factor||2.5 inch|
|Interface||SAS 12 Gbps|
|Voltage||+5V ± 5%|
|Sequntial Read (128KB)||Up to 2,100 MB/s|
|Sequential Write (128KB)||Up to 1,800 MB/s|
|Random Read IOPS (4KB)||Up to 400,000 IOPS|
|Random Write IOPS (4KB)||Up to 46,000 IOPS|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: F0VFY 0F0VFY MZILT1T9HAJQAD3 MZ-ILT1T9A MZ-ILT3T80
Weight: 0.5 lb
Warranty: 1 Year DiscTech
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
