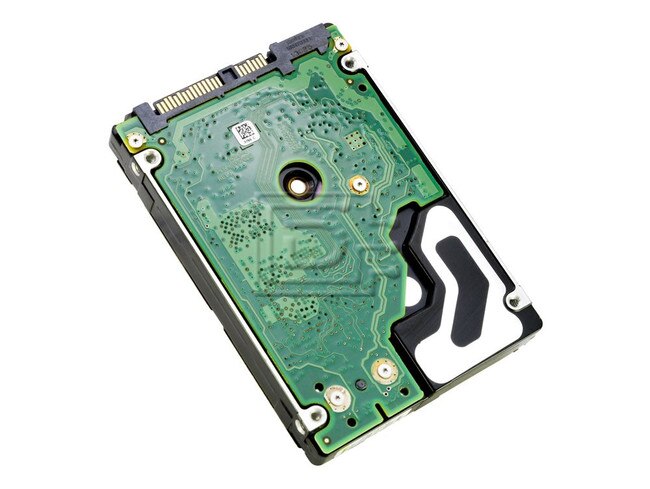

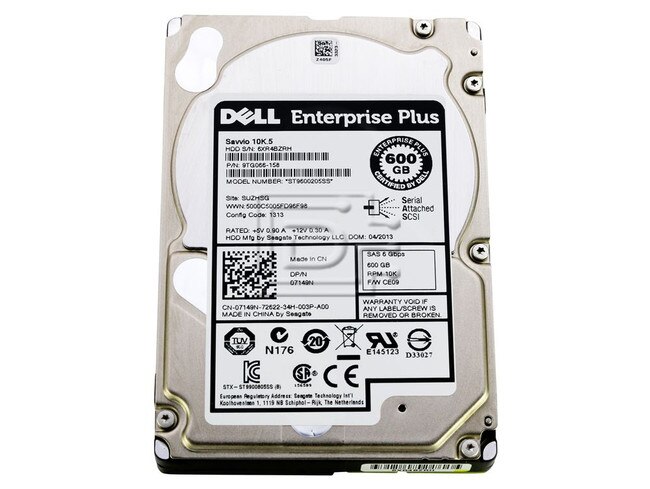

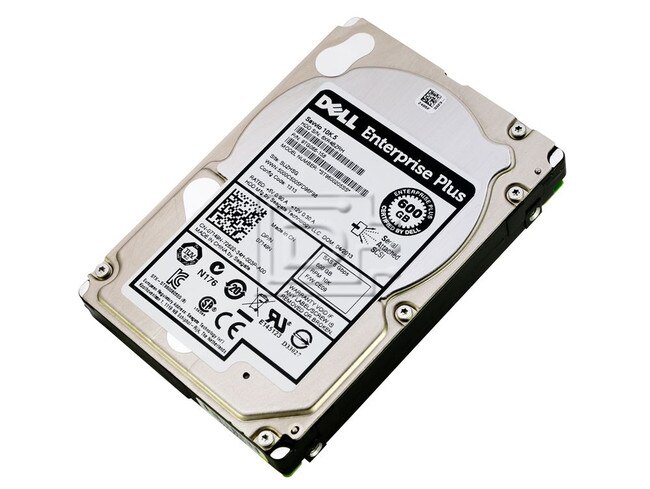

Dell Enterprise Plus 7149N / Seagate Savvio 10K.5 ST9600205SS 600GB 10K SAS Hard Drive

Seagate Part #/MPN: ST9600205SS

DiscTech Item #: SGT-ST9600205SS-RF-OE-DEP


$79.00
  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

$79.00

Enterprise Grade

Capacity: 600GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 168

Average Seek Time: 3.4 / 3.8

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 64MB

Dell Enterprise Plus 7149N / Seagate Savvio 10K.5 ST9600205SS 600GB 10K 6Gbps SFF Serial SCSI / SAS Hard Drive - Refurbished OEM

The Seagate® Savvio® 10K.5 hard drive enables OEMs, system builders and data centers to:

  • Improve storage efficiency
  • Ease capacity, interface and form factor transitions
  • Ensure data integrity and protection throughout the storage process even if the device is lost or stolen

Key Features and Benefits

  • Delivers the highest-capacity in a 2.5-inch, 10K-RPM hard drive (up to 900GB) to manage more data without increasing the number of drives
  • First SFF drive to offer four capacity points on a single platform
  • Industry-leading 0.44% AFR for field-proven reliability
  • Improves performance for faster data storage and access
  • Reduces power consumption and enables green IT initiatives
  • PowerChoice™ technology for T10-compliant power management enables IT organizations to tailor systems for performance and power consumption
  • Reduces system design, qualification and inventory costs for OEMs
  • Enables data centers to better manage hard drive transitions
  • Protection Information protects against inadvertent data change¹
  • Optional Self-Encrypting Drive (SED) models² help companies be compliant with corporate and federal data security mandates and protect data-at-rest throughout the life of the storage device should the device be lost, stolen, and/or retired
  • Seagate Unified Storage architecture reduces system complexity and operating costs by converging disparate interfaces, form factors and security standards

¹ Protection Information (Pl) feature requires Pl-compliant host or controller support.

Part No. 9TG066-158

DPN: 07149N / 7149N


Compatibility:

This drive is compatible with Equallogic  PS6100XS, PS6100XV, PS6100X, PS6100S, PS6110XS, PS6110XV, PS6110S, PS6110X, PS4100E, PS4110XV Storage that accepts small form factor (SFF) SAS hard drives

Specifications
Model number ST9600205SS
Model Name Savvio 10K.5
Formatted Capacity 600 Gbytes
Rotational Speed 10,000 rpm
Default Buffer (cache) Size 64 Mbytes
Performance
External (I/O) Transfer Rate (max) 600 MBytes/sec
Sustained Transfer Rate


168 MBytes/sec

Average Seek Time, Read 3.4 msec typical
Average Seek Time, Write 3.8 msec typical
Track-to-Track Seek, Read 0.2 msec typical
Track-to-Track Seek, Write 0.4 msec typical
Average Latency 3 msec
Physical
Form Factor(width) 2.5-inch
Form Factor(height) .583-inch
Height 15.00 mm
Width 70.10 mm
Length 100.45mm
Weight 0.215 kg
Electrical
Power (amps +5v/+12)0.46/0.45
Environmental
Max Operating Shock (2-msec) 40 Gs
Max Nonoperating Shock (2-msec) 400 Gs
Operating Vibration (max) .5 Gs
Nonoperating Vibration (max) 3.0 Gs
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
Reliability
Nonrecoverable Read Errors 1 per 10^16 bits read
Supports S.M.A.R.T.Yes

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 9TG066-158 9TG066-157 07149N 7149N

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
