Seagate Savvio ST9600205SS SAS Hard Disk Drives

- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 600GB |
| Speed: | 10K RPM |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 64MB |
Description

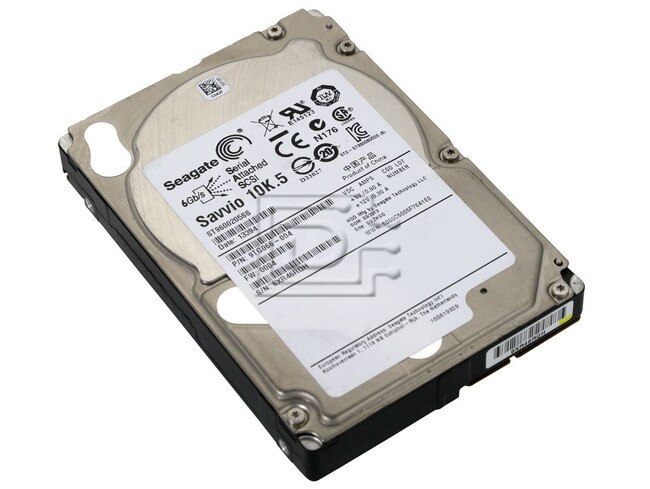

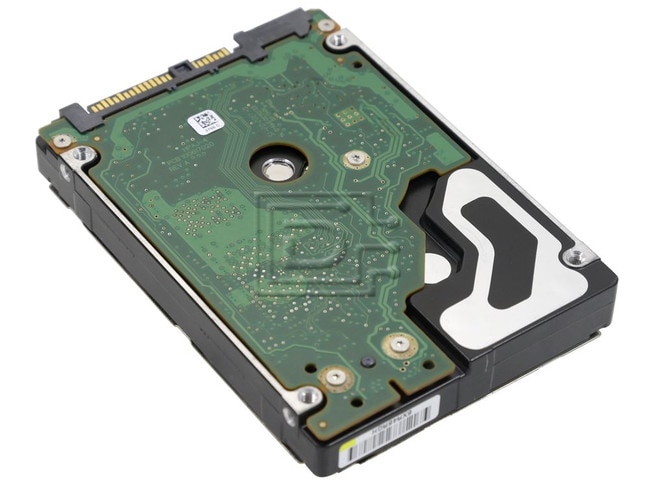

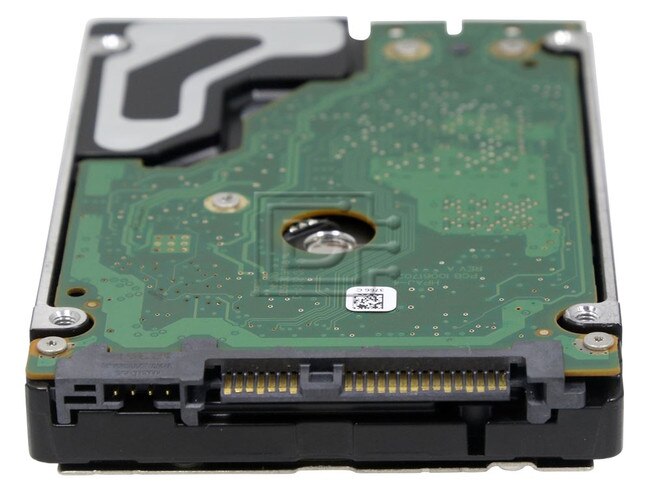

Seagate Savvio 10K.5 ST9600205SS 600GB 10K 6Gbps SFF Serial SCSI / SAS Hard Drive - Refurbished
The Seagate® Savvio® 10K.5 hard drive enables OEMs, system builders and data centers to:
- Improve storage efficiency
- Ease capacity, interface and form factor transitions
- Ensure data integrity and protection throughout the storage process even if the device is lost or stolen
Key Features and Benefits
- Delivers the highest-capacity in a 2.5-inch, 10K-RPM hard drive (up to 900GB) to manage more data without increasing the number of drives
- First SFF drive to offer four capacity points on a single platform
- Industry-leading 0.44% AFR for field-proven reliability
- Improves performance for faster data storage and access
- Reduces power consumption and enables green IT initiatives
- PowerChoice™ technology for T10-compliant power management enables IT organizations to tailor systems for performance and power consumption
- Reduces system design, qualification and inventory costs for OEMs
- Enables data centers to better manage hard drive transitions
- Protection Information protects against inadvertent data change¹
- Optional Self-Encrypting Drive (SED) models² help companies be compliant with corporate and federal data security mandates and protect data-at-rest throughout the life of the storage device should the device be lost, stolen, and/or retired
- Seagate Unified Storage architecture reduces system complexity and operating costs by converging disparate interfaces, form factors and security standards
¹ Protection Information (Pl) feature requires Pl-compliant host or controller support.
9TG066-880
Compatibility
This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives
Specifications
| Specifications | |
|---|---|
| Model number | ST9600205SS |
| Model Name | Savvio 10K.5 |
| Formatted Capacity | 600 Gbytes |
| Rotational Speed | 10,000 rpm |
| Default Buffer (cache) Size | 64 Mbytes |
| Performance | |
| External (I/O) Transfer Rate (max) | 600 MBytes/sec |
| Sustained Transfer Rate |
|
| Average Seek Time, Read | 3.4 msec typical |
| Average Seek Time, Write | 3.8 msec typical |
| Track-to-Track Seek, Read | 0.2 msec typical |
| Track-to-Track Seek, Write | 0.4 msec typical |
| Average Latency | 3 msec |
| Physical | |
| Form Factor(width) | 2.5-inch |
| Form Factor(height) | .583-inch |
| Height | 15.00 mm |
| Width | 70.10 mm |
| Length | 100.45mm |
| Weight | 0.215 kg |
| Electrical | |
| Power (amps +5v/+12) | 0.46/0.45 |
| Environmental | |
| Max Operating Shock (2-msec) | 40 Gs |
| Max Nonoperating Shock (2-msec) | 400 Gs |
| Operating Vibration (max) | .5 Gs |
| Nonoperating Vibration (max) | 3.0 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Reliability | |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
| Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9TG066-004
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
Warranty
1 Year DiscTech Warranty
