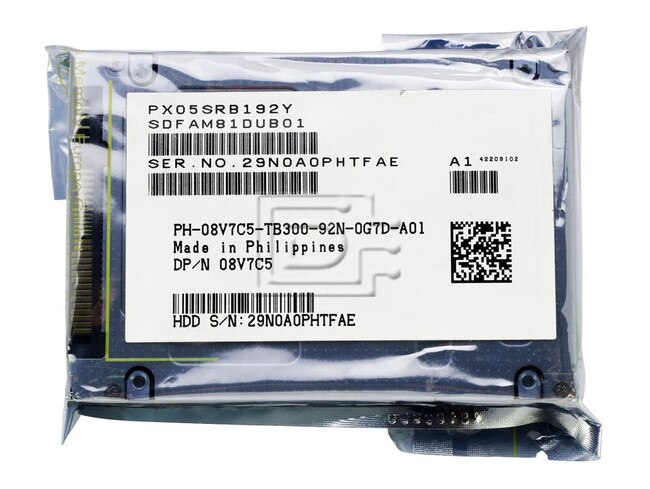

Dell Enterprise Plus 8V7C5 / Toshiba PX05SRB192Y 1.92TB SAS Solid State Drive
| Capacity: | 1.92TB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SAS-3 12Gbps |
Description
Dell Enterprise Plus 8V7C5 / Toshiba PX05SRB192Y PX05S Series 1.92TB 2.5" 12Gbps MLC SAS Read Intensive Solid State Drive - New Pull
Dell Enterprise Plus 8V7C5 / Toshiba PX05SRB192Y 1.92TB / 1920GB 2.5" 12.0 Gb/s Multi Level Cell Read Intensive 1-DWPD SAS / Serial Attached SCSI MU SSD / Solid State Disk Drive - New Pull
DPN : 8V7C5 08V7C5
Enterprise Read Intensive SSD
The PX05S Series is our 4th generation enterprise SAS SSD leveraging the highly successful PX04S Series. The PX05SR Series is designed for read-intensive application workloads including web servers, data warehousing, media streaming and VOD and offers large capacities up to 3.84TB with 12.0 Gbit/s SAS interface.
The series’ 270K IOPS sustained random read performance and 1,400 - 1,800 MB/s sequential read performance helps read-intensive application workloads to realize superior results and assists organizations in minimizing total cost of ownership while maintaining high performance, reliability and endurance for maximum scalability.
Optimized for applications demanding 1 Drive Writes Per Day (DWPD), the family is equipped with unique customer-tunable feature allowing optimization for maximum performance or power efficiency. Additional features include power-loss protection and full data path protection. Each model supports pin-3 power disable for improved enclosure services control over storage media. Self-encrypting drive options with instant secure erase are also available.
KEY FEATURES
- 270K IOPS random read (4K) performance
- 1 DWOD wutg 100% Random Write Workload
- Pin-3 Disable Support
- Power-Loss_Protection and End-to-end data protection including T10 DIF
- Sanitize Instant Erase (SIE) option
- Self-encrypting drive (SED)
- Self-encrypting drive (SED), FIPS Certified
APPLICATIONS
- Data Warehousing
- Web Servers
- Video on Demand
- Streaming media
DPN: 8V7C5/ 08V7C5
* SIE: Sanitize Device Feature set is the standard prescribed by T10 (SAS) committee of American National Standards Association(ANSI), which makes it possible to invalidate the data recorded on the NAND flash memory at a blink.
* SED drive is conformed to TCG enterprise SSC.
* SED and FIPS 140-2 Validated drives are not available in all models or countries. May require TCG-Compliant host or controller support.
Compatibility:
This drive is compatible with laptops that accept 2.5" x 15mm SFF 12Gb/s SAS drives.
Specifications
| Toshiba Enterprise Read Intensive SSD | |
|---|---|
| Model Number | PX05SRB192Y |
| Capacity | 1.92TB / 1920 GB |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | MLC |
| Sustained 64KiB Sequential Read | 1,400 MiB/s |
| Sustained 64KiB Sequential Write | 750 MiB/s |
| Sustained 4KiB Random Read | 270,000 IOPS |
| Sustained 4KiB Random Write | 25,000 IOPS |
| MTTF | 2,000,000 hours |
| DWPD | 1 |
| Supply Voltage | 5 V ±7 % , 12 V ±7 % |
| Power Consumption (Ready) | 3.2 W Typ. |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 150 g Max. |
| Temperature ( Operating ) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration ( Operating ) | 21.27 m/s { 2.17 Grms } ( 5 to 800 Hz ) |
| Shock ( Operating ) | 9,800 m/s { 1,000 G } ( 0.5 ms duration ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 8V7C5 08V7C5
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
New Pull
Warranty
1 Year DiscTech Warranty
