Dell Equallogic 3YJ86 3TB SAS SED Enterprise Plus Hard Drive

Dell Equallogic Compellent Part #/MPN: 3YJ86

DiscTech Item #: DEQ-3YJ86-NP-OE


Enterprise Grade

Capacity: 3TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 155

Average Seek Time: 8.5 / 9.5

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 64MB

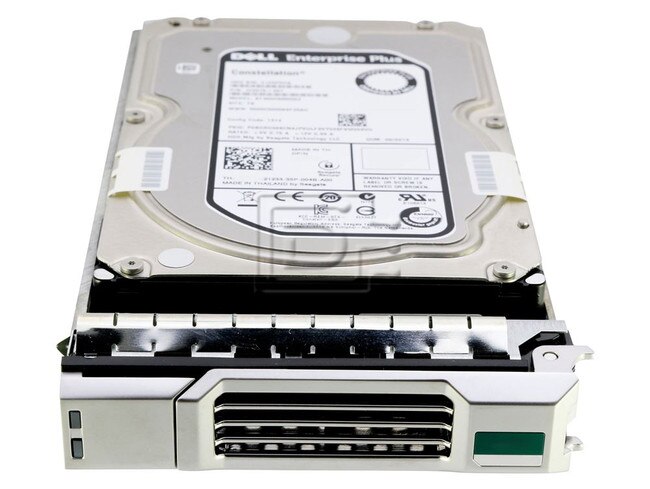

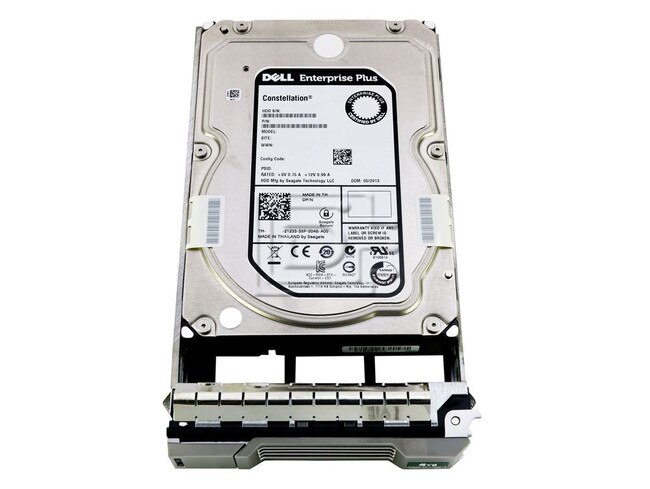

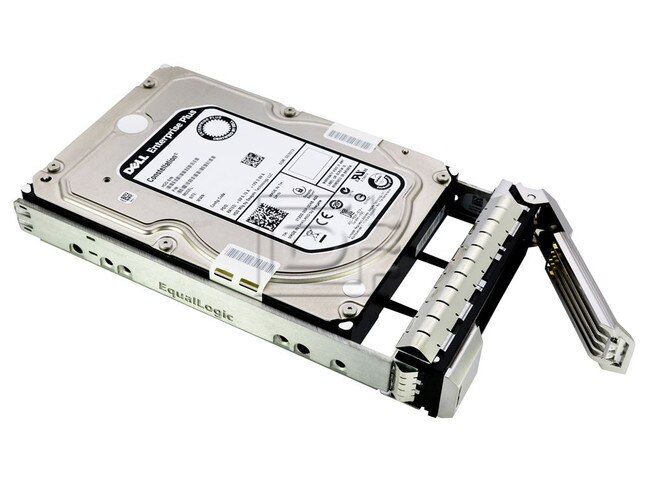

Dell Equallogic 3YJ86 / 03YJ86 / 7GR25 / 07GR25 3TB 7.2K RPM 6Gbps SAS SED Enterprise Plus Hard Drive with Y79JP Tray - New Pull OEM

Dell Equallogic 3YJ86 / 03YJ86 / 7GR25 / 07GR25 / Seagate Constellation ES.2 ST33000652SS / 9XT260-257 3TB / 3000GB 7200 RPM 6Gbps SAS / Serial Attached SCSI SED / Self Encrypting FIPS Enterprise Plus HDD / Hard Drive with Y79JP Tray - New Pull OEM
Alt. MPN: 9XT260-257
Dell Enterprise Plus PNs: 07GR25 7GR25

Seagate® Constellation® ES.2

Key Features and Benefits

  • Industry’s highest capacity enterprise drive for sustaining demanding data growth
  • Fifth-generation, capacity-optimized nearline drive designed for 24x7 enterprise reliability
  • SAS-based, end-to-end data integrity and enhanced error correction for accurate data storage
  • Best-in-class enhanced rotational vibration tolerance ensures consistent bulk data performance
  • Improved power & cooling with low power consumption and enhanced PowerChoice™ technology
  • Multi-drive firmware maximized for enterprise system availability
  • Robust performance with dual processor and ramp load technologies
  • Self-Encrypting Drives with FIPS (140-2) certification are government-approved for the U.S. and Canadian governments.*


*Requires TCG-compliant host or controller support. Self-Encrypting Drive (SED) security option (SAS models only) eliminates the need to overwrite or physically destroy drives, enables safe return of drives for warranty or expired lease purposes and allows organizations to securely repurpose or sell hard disk drives. Not available in all models or countries.


This 3.5" SAS Kit is compatible with the following Dell Equallogic systems supporting 3.5" hot swappable disks:

PS6100, PS-M4110, SC200 , 4100E

Drive specification


Formatted Gbytes (512 bytes/sector)


Bytes per sector

512, 520, 528

Guaranteed Sectors


Spindle speed (RPM)


I/O data transfer rate (MBps)




Cache buffer


Interface Type

6.0Gbps SAS

Seek time (read / write) ms

8.5 / 9.5

Max Sustained Transfer Rate (MB/s)


Dimensions (HxLxW) mm

26.1 / 146.99 / 101.6


0.70 kg

Operating Shock (Read / Write)

70G / 49G

Non-operating Shock

300G, 2ms

Temperature - Operating

5C -60C

Temperature - Non-operating

-40C - 70C

Power Supply Requirements

+12V and +5V


ROHS Compliant

Alternate MPNs: 03YJ86 7GR25 07GR25

Weight: 1.8 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
