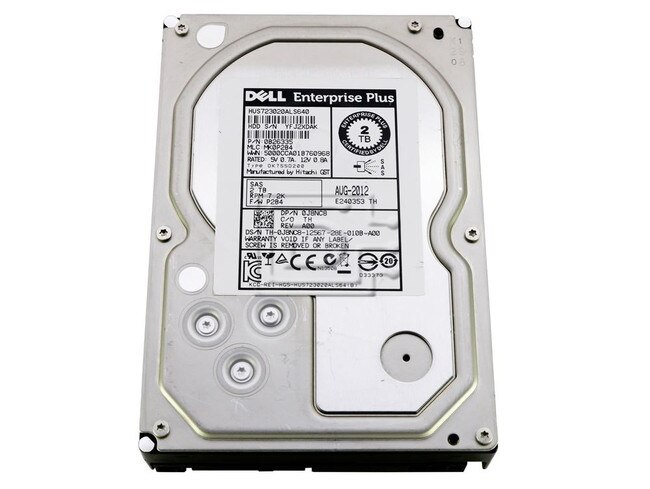

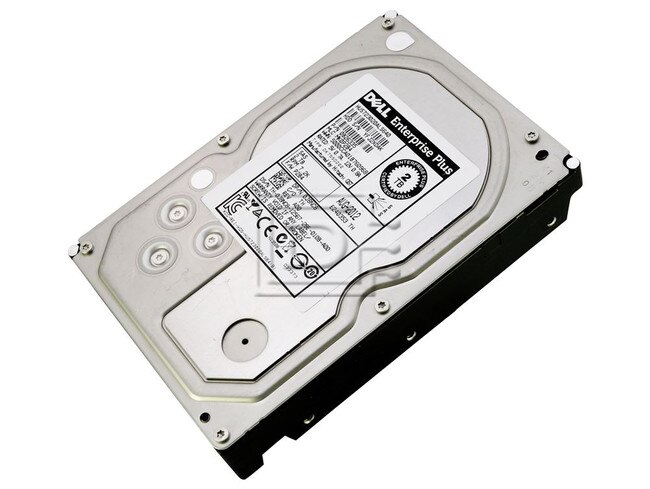

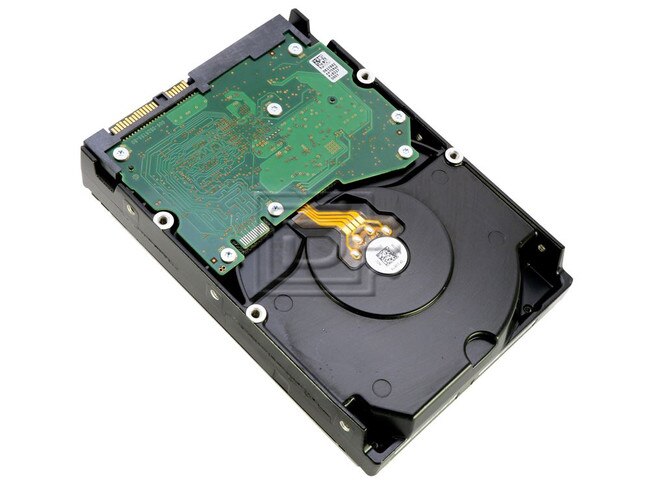

Dell Equallogic / Compellent Hitachi 0B26335 / HUS723020ALS640 2TB 7.2K 6.0Gbps SAS Hard Disk

(0) No Reviews Yet

Hitachi Part #/MPN: 0B26335

DiscTech Item #: HIT-0B26335-BN-OE-DEP


$175.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$175.00

Enterprise Grade

Capacity: 2TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 152

Average Seek Time: 8.2 / 11.3

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 64MB

Dell Equallogic / Compellent Hitachi UltraStar 7K3000 0B26335 / HUS723020ALS640 2TB / 2000GB 7.2K 6.0Gbps Serial SCSI / SAS Hard Drive - Brand New OEM

The HGST Ultrastar™ 7K3000 is the world’s first and only 7200 RPM hard drive rated at 2.0 million hours MTBF and backed by a five-year limited warranty. The Ultrastar 7K3000 represents the fifth-generation HGST 5-platter mechanical design, first introduced in 2004, and has been field proven by top server and storage OEMs as well as leading Internet giants. When the highest quality and reliability are a top requirement, customer field data proves that the Ultrastar 7K3000 delivers by reducing downtime, eliminating service calls and keeping TCO to a minimum. Engineered for the highest reliability, the Ultrastar 7K3000 is not only put through grueling design tests during development but must also pass stringent ongoing reliability testing during manufacturing. Across the entire Ultrastar family, world-class quality control, combined with scientific root-cause analysis and multi-faceted corrective actions, ensure that HGST remains the recognized leader in quality and reliability for enterprise-class hard drives.



Highlights
• 2.0 million hours MTBF
• Up to 3 terabytes of capacity
• 6Gb/s SATA and 6Gb/s SAS models for configuration flexibility
• Dual Stage Actuator (DSA) and Enhanced Rotational Vibration Safeguard (RVS) for robust performance in multi-drive environments
• 24x7 accessibility for enterprise-class, capacity-optimized applications
• 5-year limited warranty

Applications / Environments
• Cloud storage
• Massive Scale Out (MSO)
• Decision support & RAID
• Data warehousing & mining
• Disk-to-disk backup & archiving
• RAID arrays
• Network Attached Storage (NAS)

DPN: 0J8NC8 / J8NC8


Compatibility:

This Seagate Enterprise hard disk is for use in Dell Equallogic or Compellent systems, however is also compatible with any system that supports 3.5" SAS / Serial Attached SCSI hard disks.

 A Full compatibility list can be found here:

http://www.hgst.com/tech/techlib.nsf/techdocs/D69C43185C42FA0B882579990007B55D/$file/US7K3000_CompatGuide_SAS_v1.0.pdf

Drive specification

0B26335

Formatted Gbytes (512 bytes/sector)

2000

Bytes per sector

512

Spindle speed (RPM)

7,200

I/O data transfer rate (MBps)

600

Cache buffer

64

Interface Type

6.0Gbps SAS

Seek time (read / write) ms

8.2 / 11.3

Dimensions (HxLxW) mm

26.1 / 146.99 / 101.6

Weight

0.69 kg

Temperature - Operating

5C -60C

Temperature - Non-operating

-40C - 70C


Click here to view the manufacturer's item description/brochure

Alternate MPNs: 0J8NC8 J8NC8 HUS723020ALS640

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
